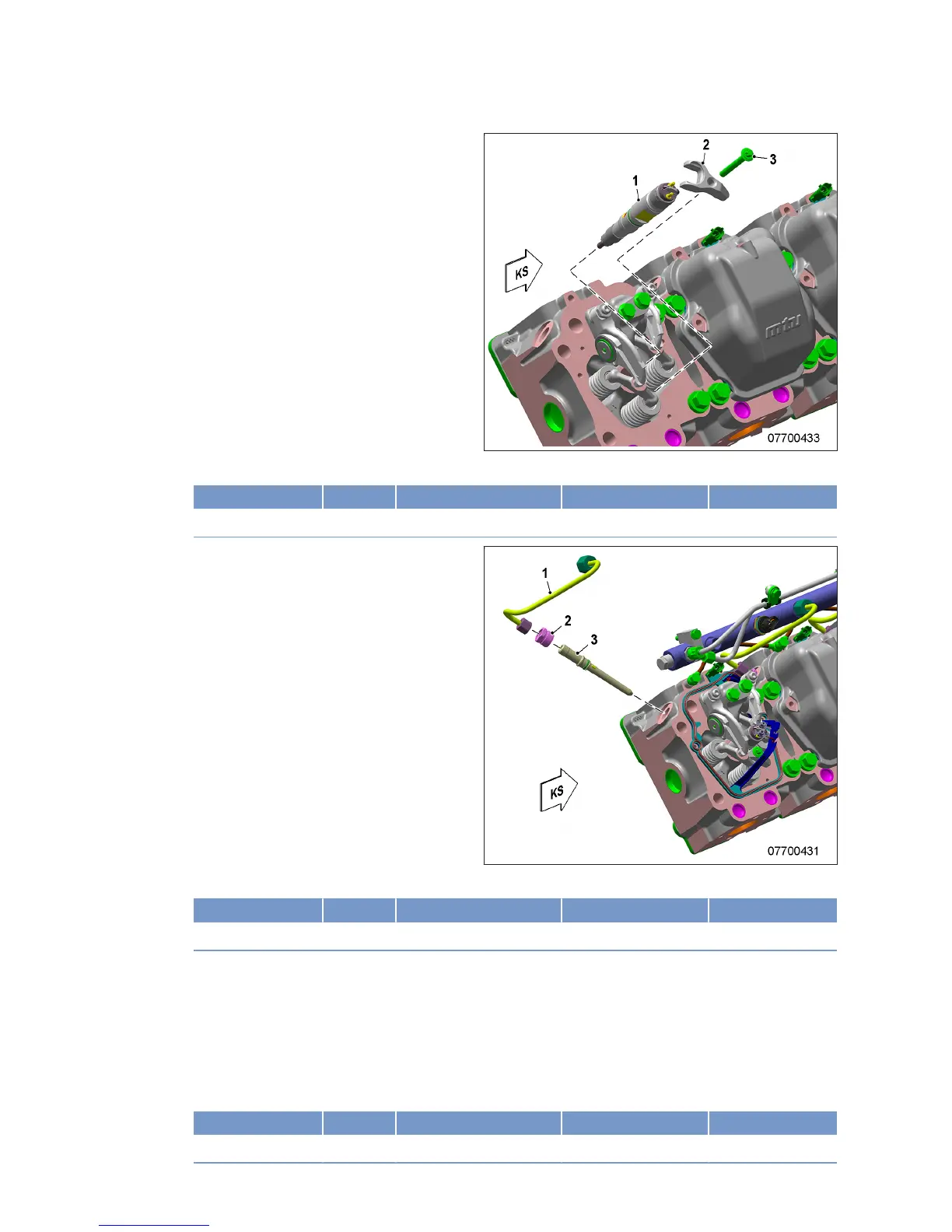

8. Use torque wrench to tighten screw (3) for hold-down clamp (2) to the specified tightening torque.
Name Size Type Lubricant Value/Standard
Screw M8 Tightening torque (Engine oil) 40 Nm +4 Nm
9. Tighten union nut (2) on pressure pipe neck with torque wrench to the specified tightening torque.
Name Size Type Lubricant Value/Standard
Union nut Tightening torque 45 Nm +5 Nm
Installing fuel line
1. Coat thread and shoulder of union nuts on fuel line (1) with engine oil.
Note: Position fuel line, ensuring it is free of tension.
2. Position fuel line (1) so that the union nut with the torque specification faces the fuel rail and the end
without torque specification faces the pressure pipe neck (2), and tighten snug-fit.
3. Tighten union nut of fuel line (1) on fuel rail to the specified tightening torque using a torque wrench.
Name Size Type Lubricant Value/Standard
Union nut Tightening torque (Engine oil) 45 Nm +5 Nm
52 | Task Description | MS150094/01E 2012-08
TIM-ID: 0000023980 - 002
