4. Tighten union nut of fuel line (1) on pressure pipe neck (2) to the specified tightening torque using a tor‐
que wrench.
Name Size Type Lubricant Value/Standard
Union nut Tightening torque (Engine oil) 37 Nm +3 Nm

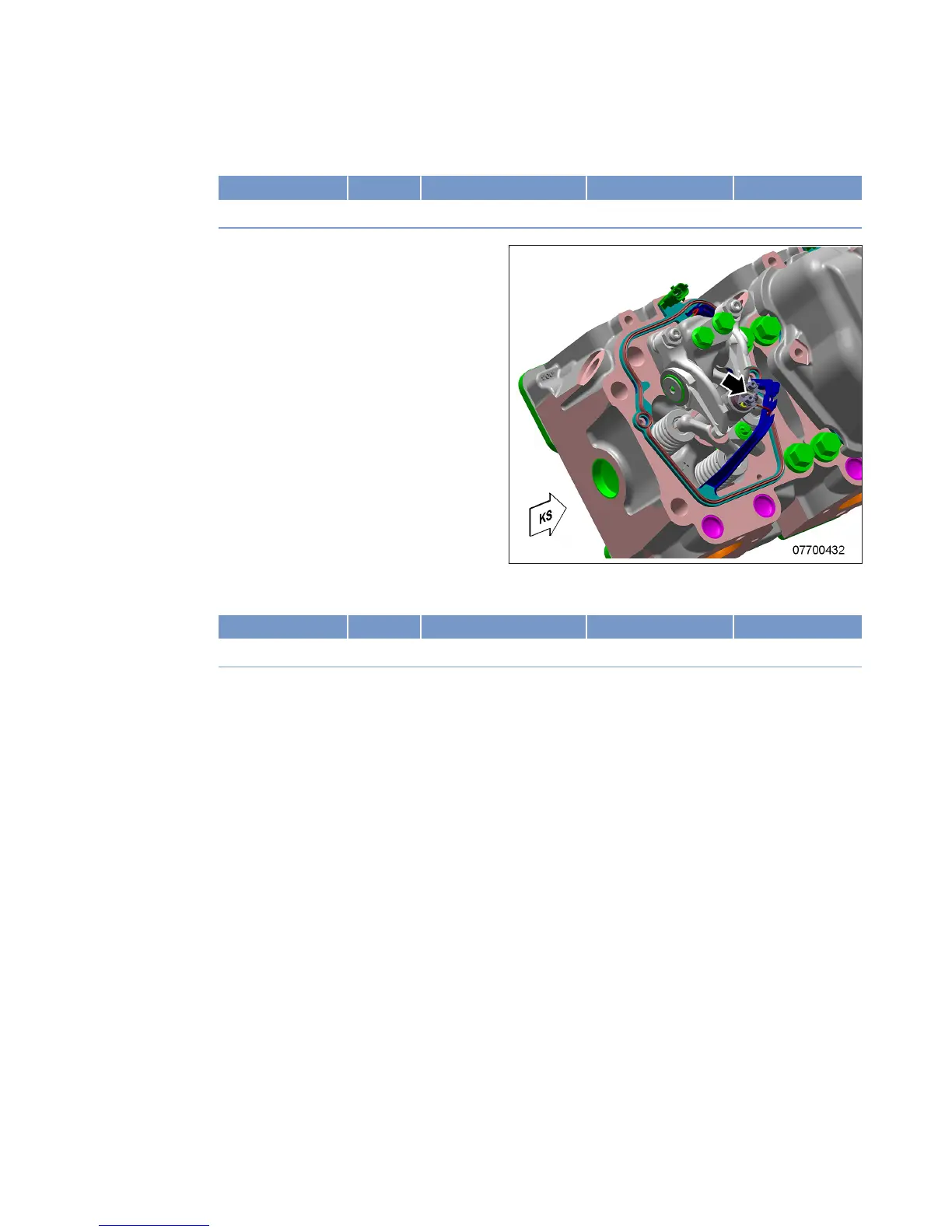

Fitting gasket and connecting
injector cable
1. Place gasket on cylinder head, ensuring
correct installation position.
2. Push cable lugs under the terminals (arrow) on the injector and tighten with torque wrench to the speci‐
fied tightening torque.
Name Size Type Lubricant Value/Standard
Nut M4 Tightening torque (Engine oil) 1.5 Nm ±0.25 Nm
Final steps
1. Install cylinder head cover (→ Page 47).
2. Open fuel supply line.
3. Vent fuel system (→ Page 56).
MS150094/01E 2012-08 | Task Description | 53
TIM-ID: 0000023980 - 002
