Engine Layout 2–01
2.1 Engine Layout
2.1.1 Engine layout

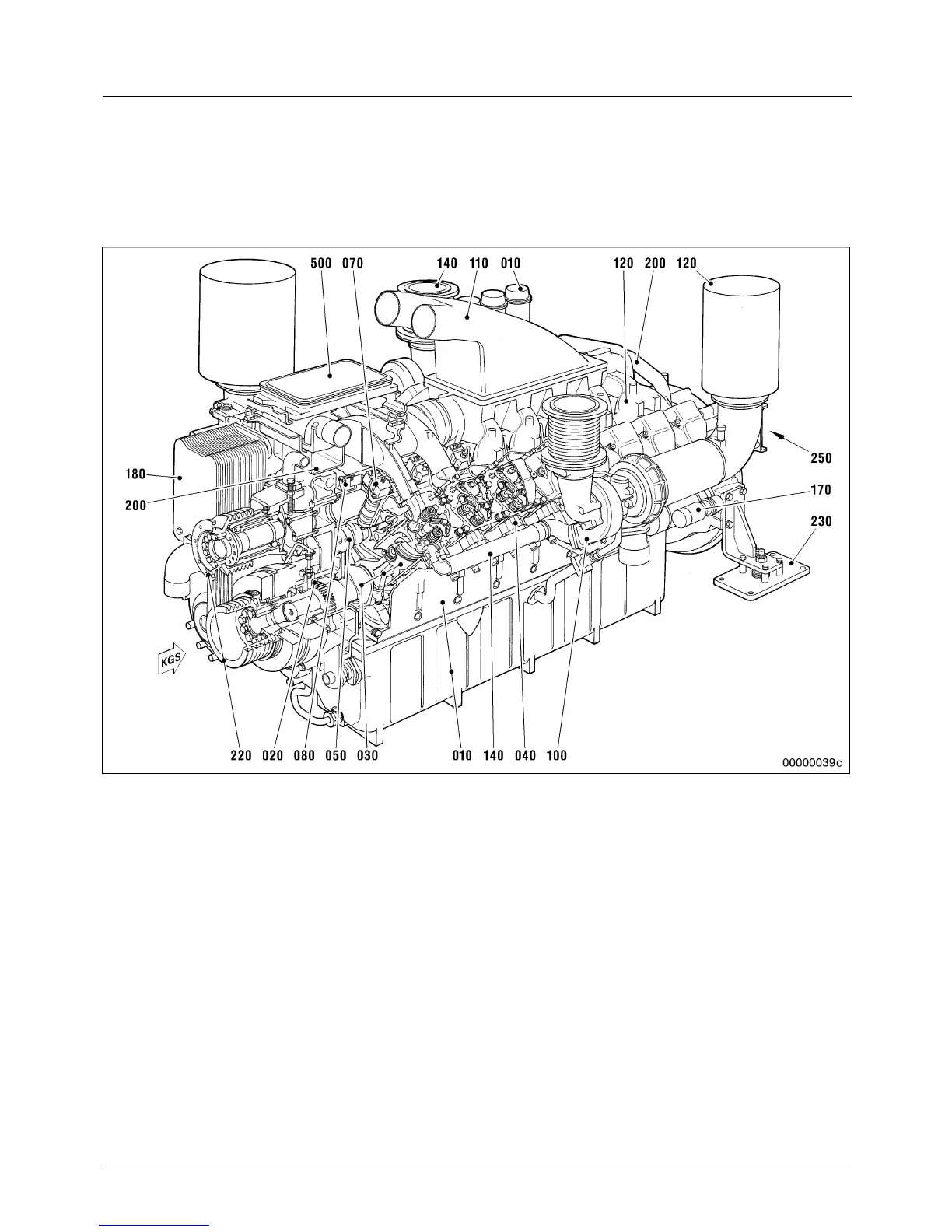

Illustration is applicable to 8/12/16/18V 2000 Gxy engines
010 Crankcase and attachments
020 Gear train
030 Running gear
040 Cylinder head
050 Valve gear
070 HP fuel system
080 LP fuel system
100 Exhaust turbocharger
110 Intercooler
120 Air intake / air supply
140 Exhaust system
170 Starting equipment
180 Lube oil system
200 Cooling system
210 Electric power supply,
engine-related
230 Mounting system
250 Drive systems, drive end and
free end (couplings)
500 Monitoring and control systems,
general electric devices
