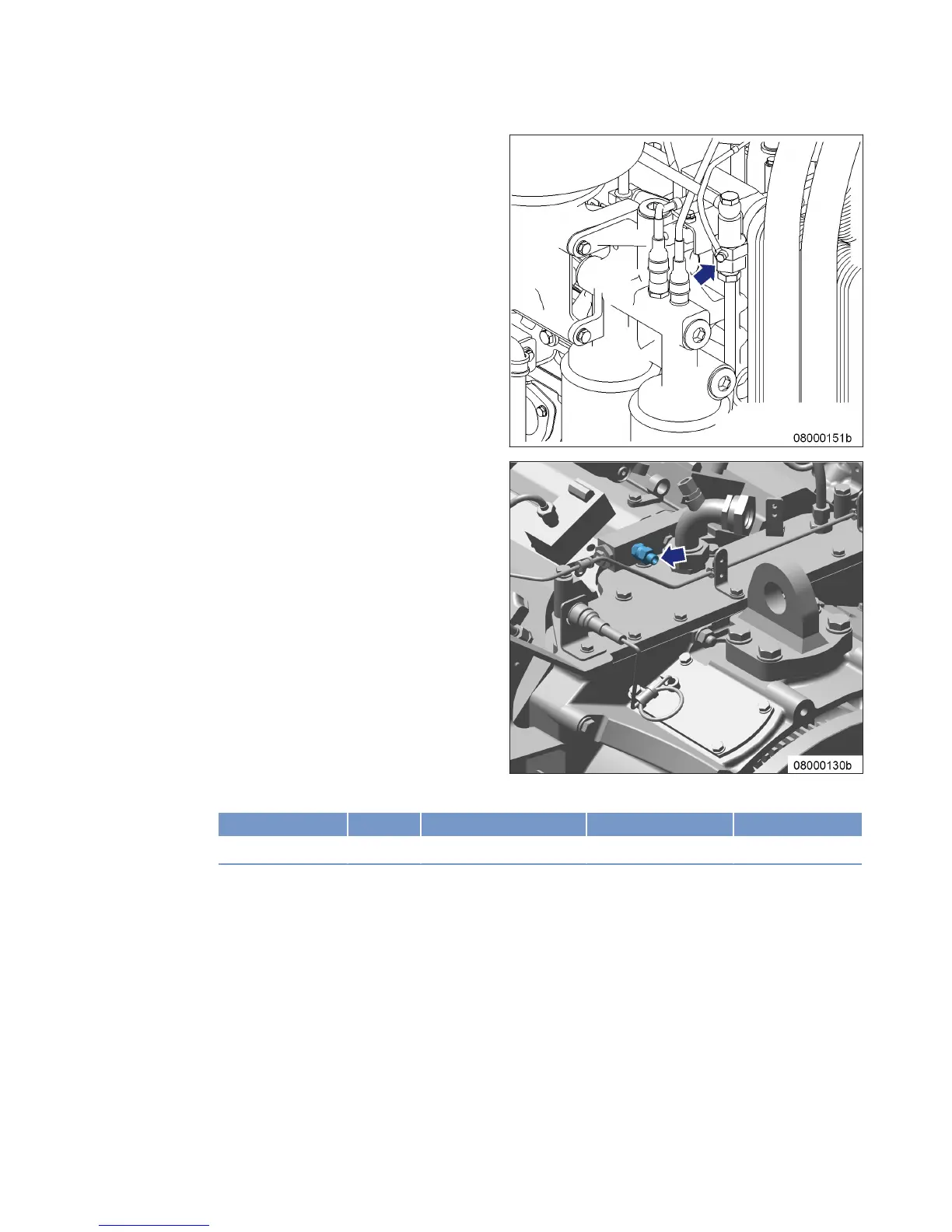

5. Loosen banjo screw (arrowed).
6. Operate the pump with the handle until bub-
ble-free fuel emerges.
7. Tighten banjo screw.
8. Loosen union nut of fuel return line.
9. Loosen non-return valve (arrowed).
10. Operate the pump with the handle until bub-
ble-free fuel emerges.
11. Tighten non-return valve to specified torque using a torque wrench.
Name Size Type Lubricant Value/Standard
Non-return valve Tightening torque (Engine oil) 10 Nm +1 Nm
12. Tighten union nut of fuel return line.
13. Lock fuel priming pump, screw in handle.
MS15018/03E 2016-02
| Fuel System | 101
TIM-ID: 0000000026 - 003
