MTU 16V2000G65 - Engine Overview

3.2 Engine overview

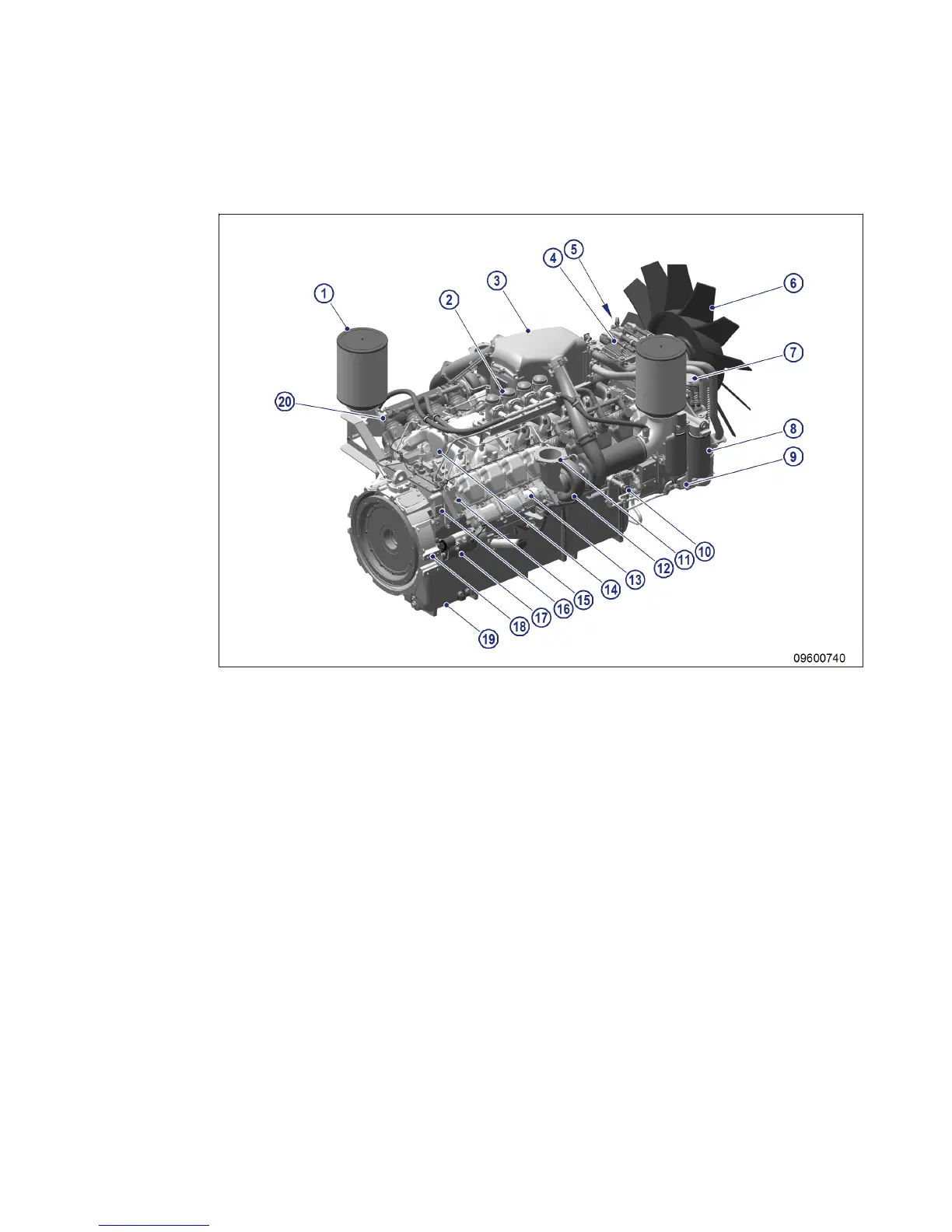

Engine with water-to-air charge-air cooling TB
1 Air filter
2 Oil separator
3 Intercooler
4 Engine governor
5 Fuel filter
6 Fan drive
7 Oil heat exchanger
8 Oil filter
9 Coolant pump
10 Fuel priming pump
11 Air outlet
12 Exhaust turbocharger
13 Exhaust elbow
14 Charge-air manifold
15 Cylinder head
16 Flywheel housing
17 Starter
18 Storage
19 Oil pan
20 Crankcase breather
Figure also applies similarly to 12V/16V/18V2000Gxy
