7 Troubleshooting
7.1 Fault indication on SAM display – Genset applications
SAM fault messages

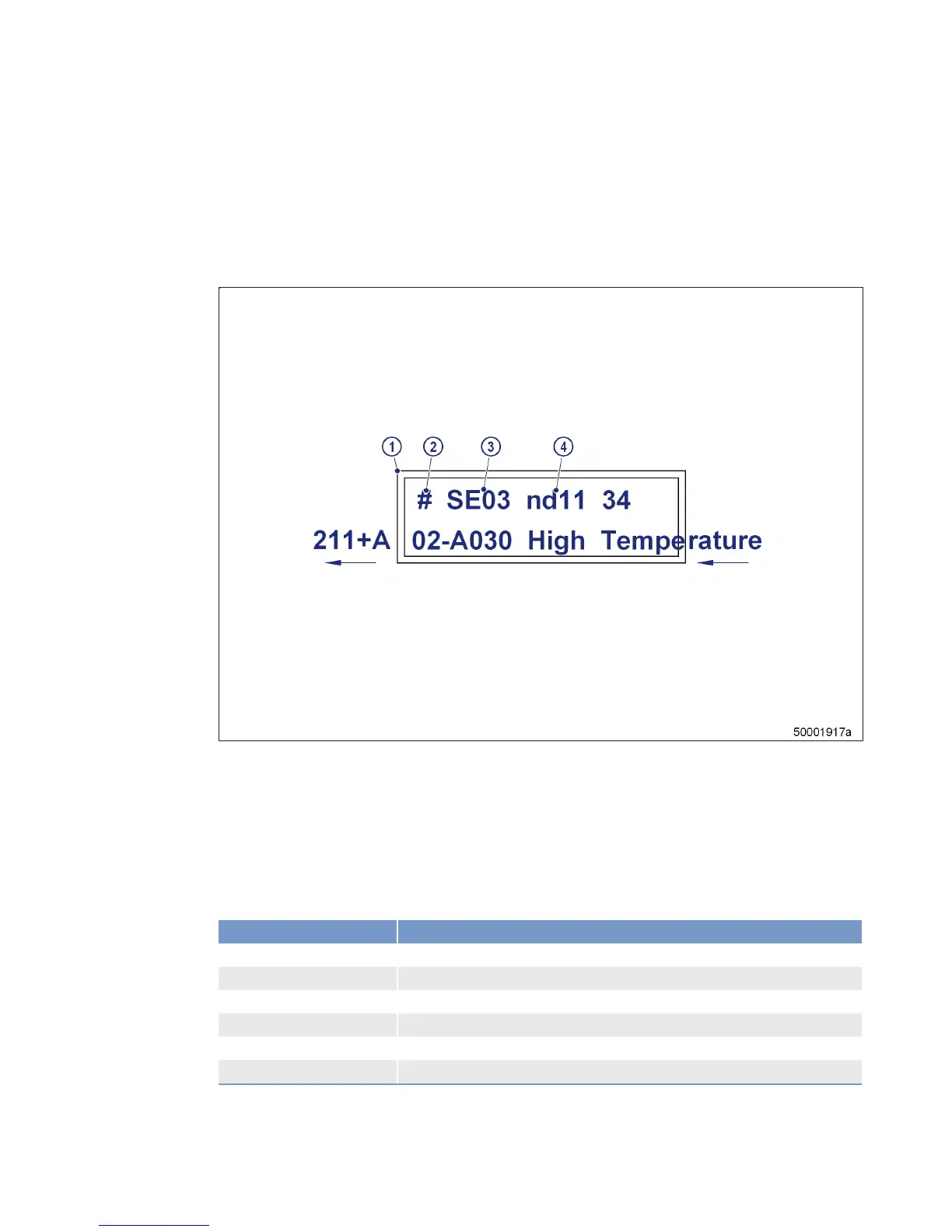

1 2-line LC display
2 Time indicator for alarms
3 Fault type
4 Node number
The structure of the display is as follows:
• First line
– Time indicator for alarms (e.g. #)
– Type of fault (e.g. SE03)
– Node number at which the fault occurred (e.g. nd11)
• Second line (option)
– Running text, providing more information about the fault currently displayed
Time indicator for alarms Meaning
# Alarm is no longer active, does not appear on next power-up.
A Alarm is active.
B Alarm was active during the last hour.
C Alarm was active during the last four hours.
D Alarm was active during the last four to twelve hours.
E Alarm was active more than twelve hours ago.
Proceed to the next alarm by pressing key (↓ ↑).
