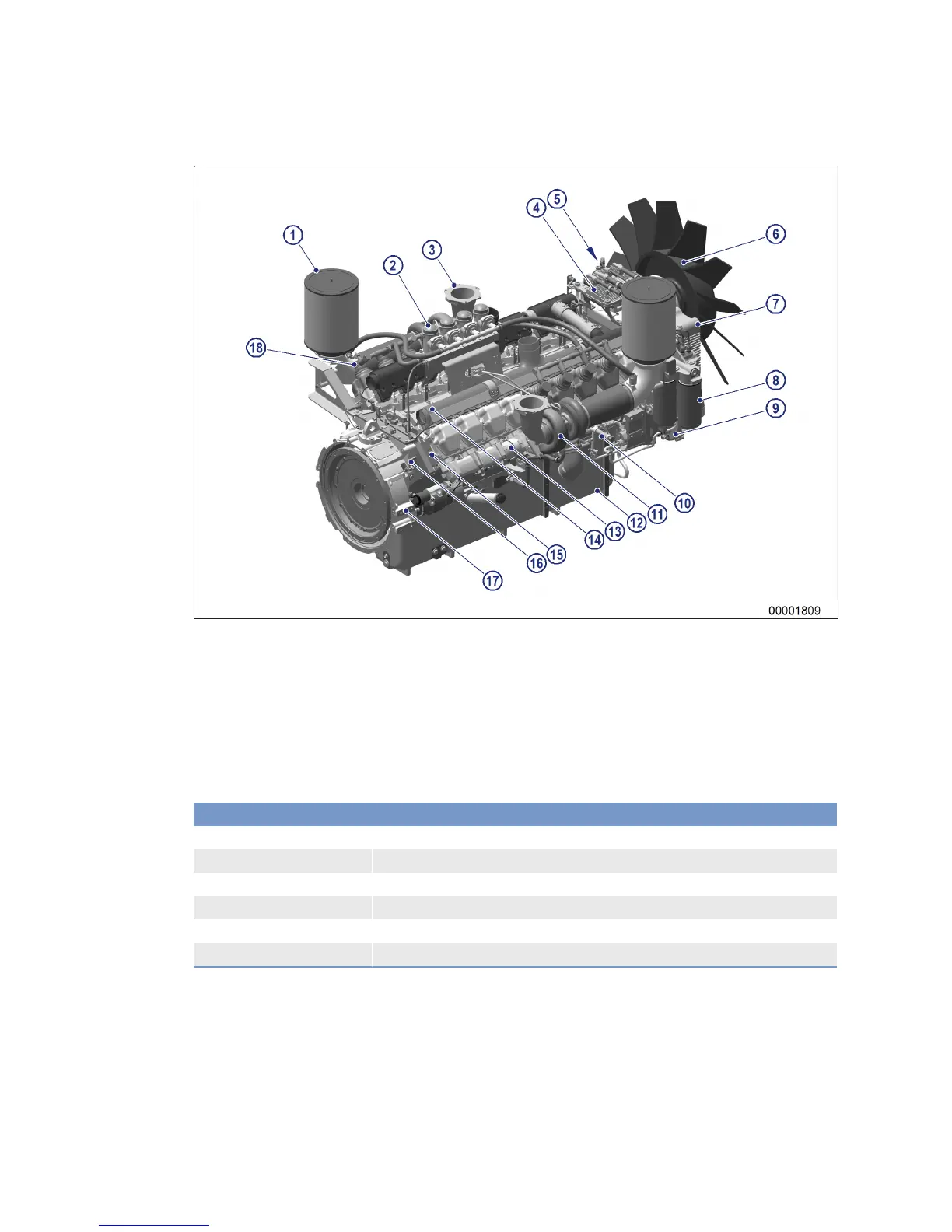

Engine with air-to-air charge-air cooling TD
1 Air filter
2 Oil separator
3 Air outlet
4 Engine governor
5 Fuel filter
6 Fan drive
7 Oil heat exchanger
8 Oil filter
9 Coolant pump
10 Fuel priming pump
11 Exhaust turbocharger
12 Oil pan
13 Exhaust elbow
14 Charge-air manifold
15 Cylinder head
16 Flywheel housing
17 Storage
18 Crankcase breather
Figure also applies similarly to 12V/16V/18V2000Gxy
Engine type designation
Explanation of engine type designation 12V/16V/18V2000Gxy
12/16/18 Number of cylinders
V Cylinder arrangement: V engine
2000 Series
G Application
x Application segment (2, 4, 6, 8)
y Design status (0, 1, 2,...)
20 | General Information | MS15018/03E 2016-02
TIM-ID: 0000009973 - 005
