7.15 Coolant Circuit, General, High-Temperature Circuit
7.15.1 Engine coolant drain and venting points

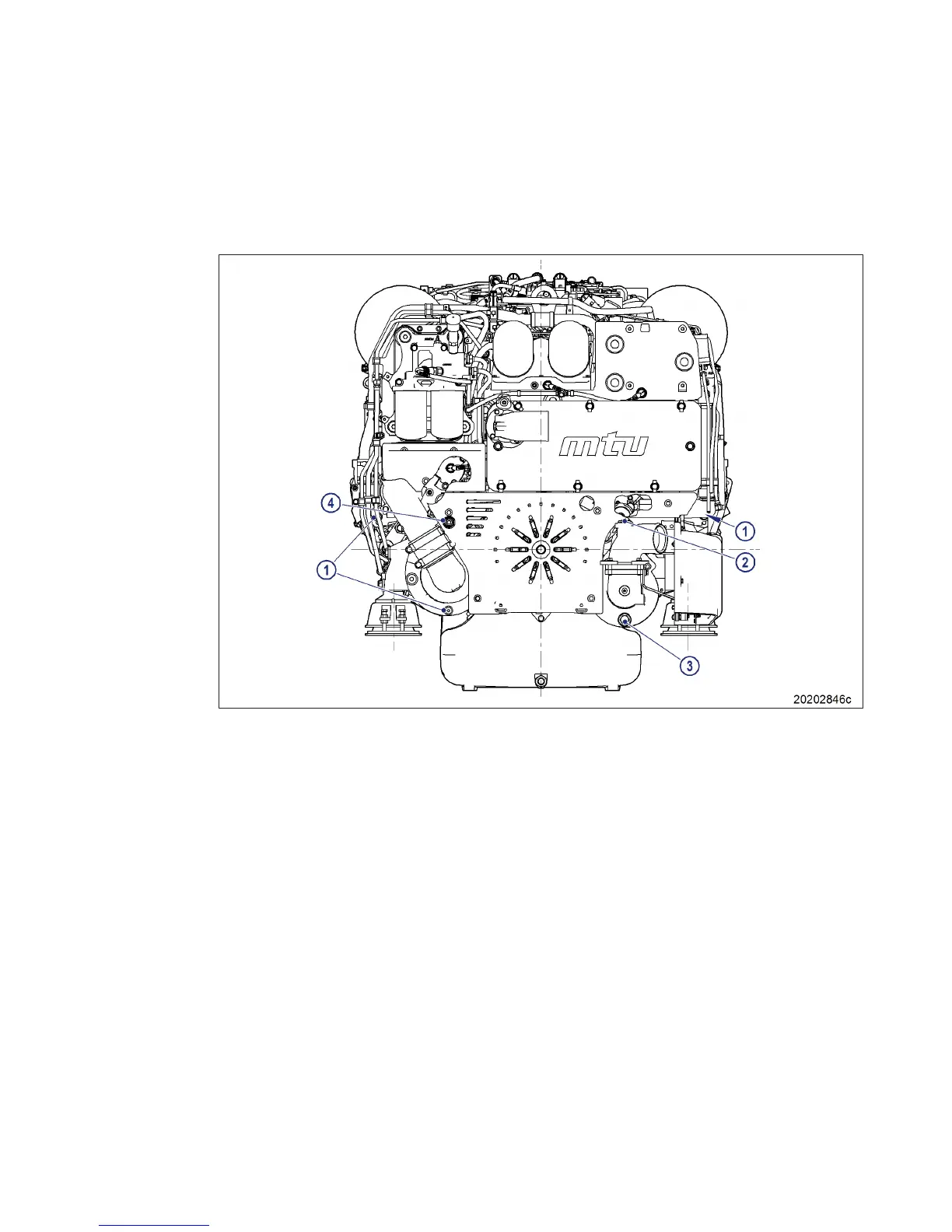

Drain points, free end
1 Engine coolant drain screw
2 Filling screw on seawater
pump
3 Seawater pump drain
4 Preheating line outlet con-
nection
MS150119/01E 2016-02 | Coolant Circuit, General, High-Temperature Circuit | 123
TIM-ID: 0000055251 - 003
