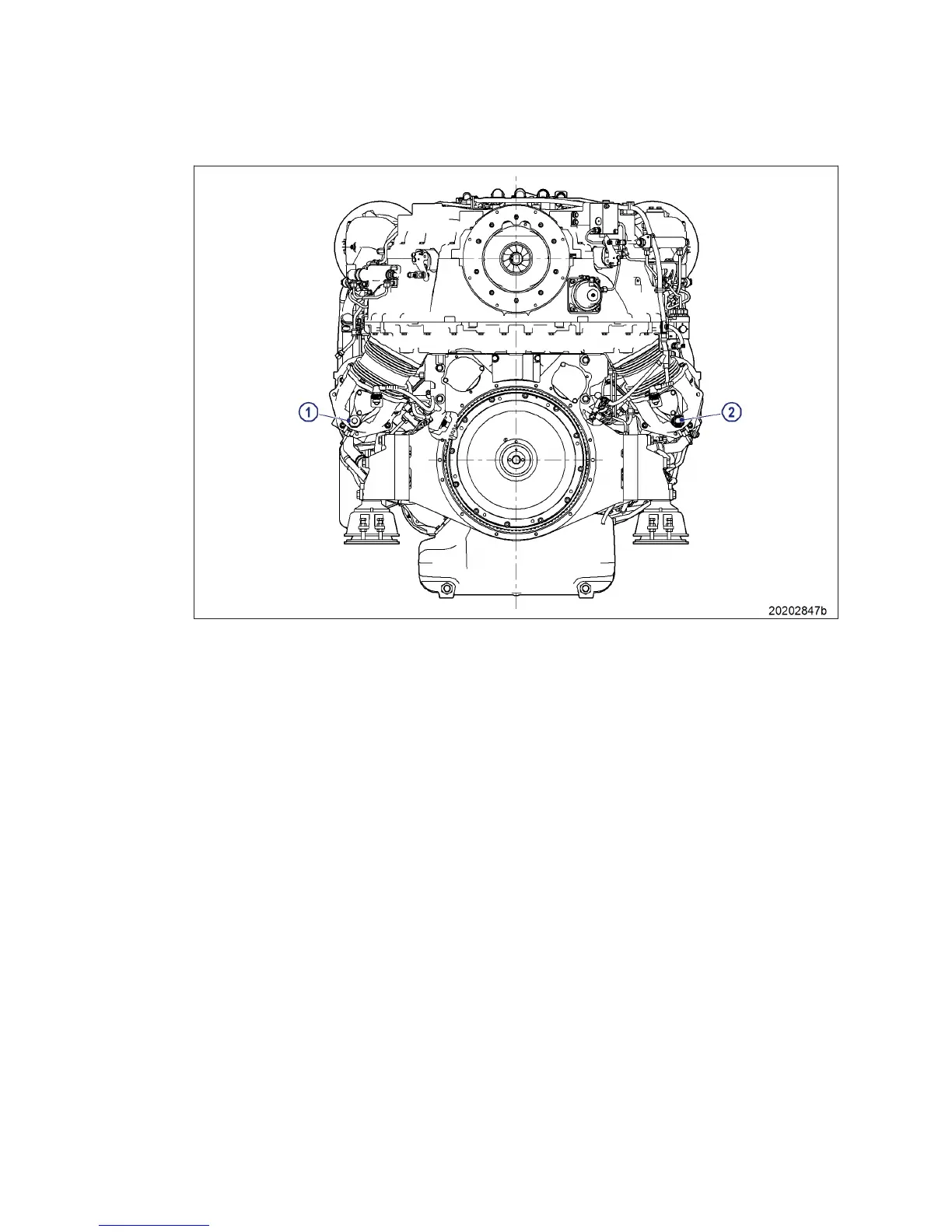

Drain points, driving end
1 Engine coolant drain screw 2 Engine coolant drain screw
Preheating line inlet con-
nection
124 | Coolant Circuit, General, High-Temperature Circuit | MS150119/01E 2016-02
TIM-ID: 0000055251 - 003
