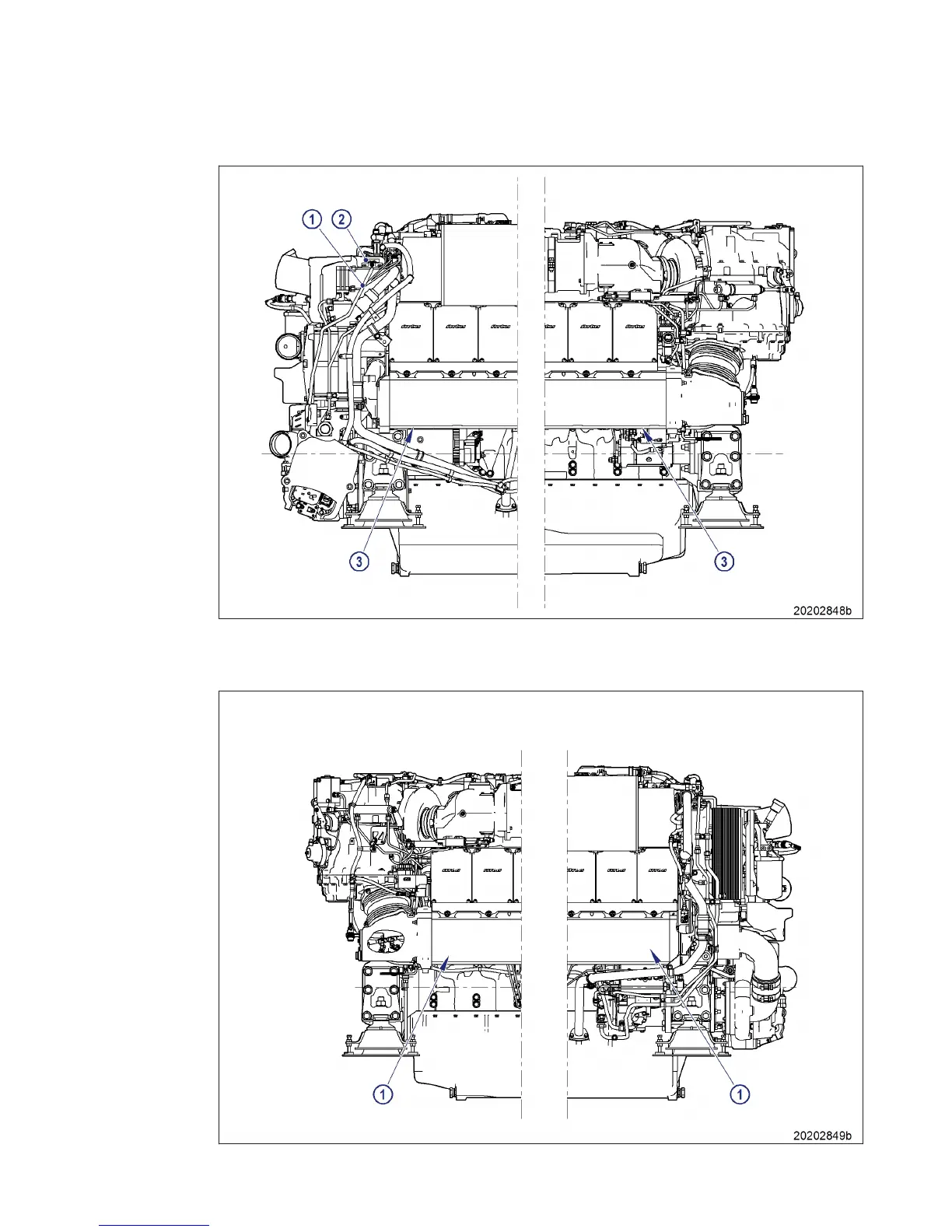

Drain points, left side
1 Engine coolant overflow line 2 Engine coolant filler neck 3 Engine coolant drain screw
Drain points, right side
1 Engine coolant drain screw
MS150119/01E 2016-02 | Coolant Circuit, General, High-Temperature Circuit | 125
TIM-ID: 0000055251 - 003
