Item Type of shielding Comments
7 Shield (A5) On valve plate
8 Shield (A5) On valve plate
9 Shield (A5) On valve plate
10 Shield (A5) On valve plate
11 Shield (A4) On brazed-on union

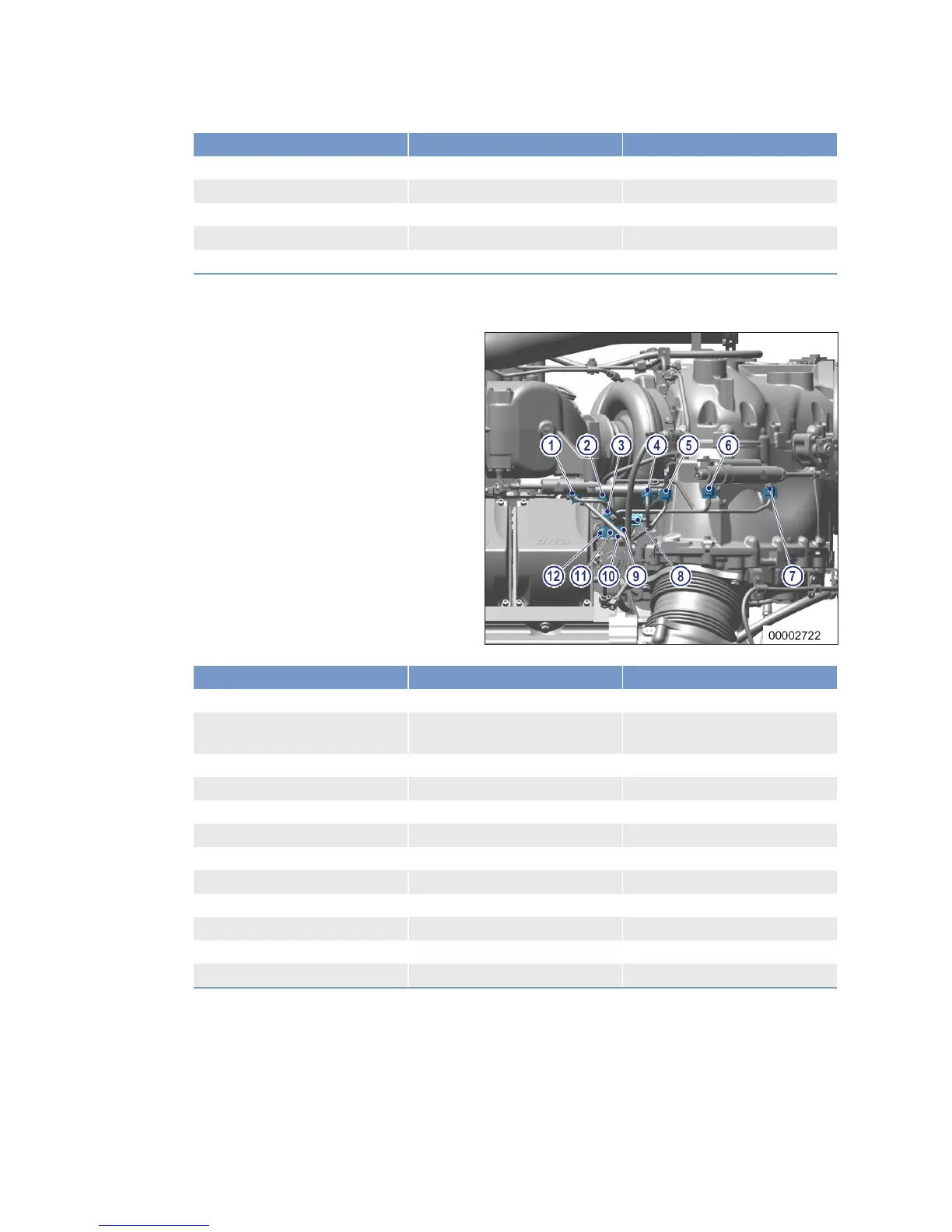

Area of hydraulic cylinder, A-side
Item Type of shielding Comments
1 Shield (A5) Oil supply for air flap
2 Shield (A5) Oil supply for exhaust turbocharg-
er
3 Shield (A4) Oil return line in crankcase
4 Shield (A5) Oil supply for air flap
5 Shield (A4) Oil supply for air flap
6 Shield (A5) Exhaust turbocharger flaps
7 Shield (A5) Exhaust turbocharger flaps
8 Shield (A4) On brazed-on union
9 Shield (A5) On valve plate
10 Shield (A5) On valve plate
11 Shield (A5) On valve plate
12 Shield (A5) On valve plate
74 | SOLAS | MS150119/01E 2016-02
TIM-ID: 0000064358 - 001
