6.1.2 Engine – Barring with starting system
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Connector pliers
0135315483 1
DANGER
Unguarded rotating and moving engine components.
Risk of serious injury – danger to life!
• before barring or starting the engine, ensure that nobody is in the danger zone.
• After working on the engine, check that all protective devices have been reinstalled and all tools
removed from the engine.
Engine – Barring with starting
system

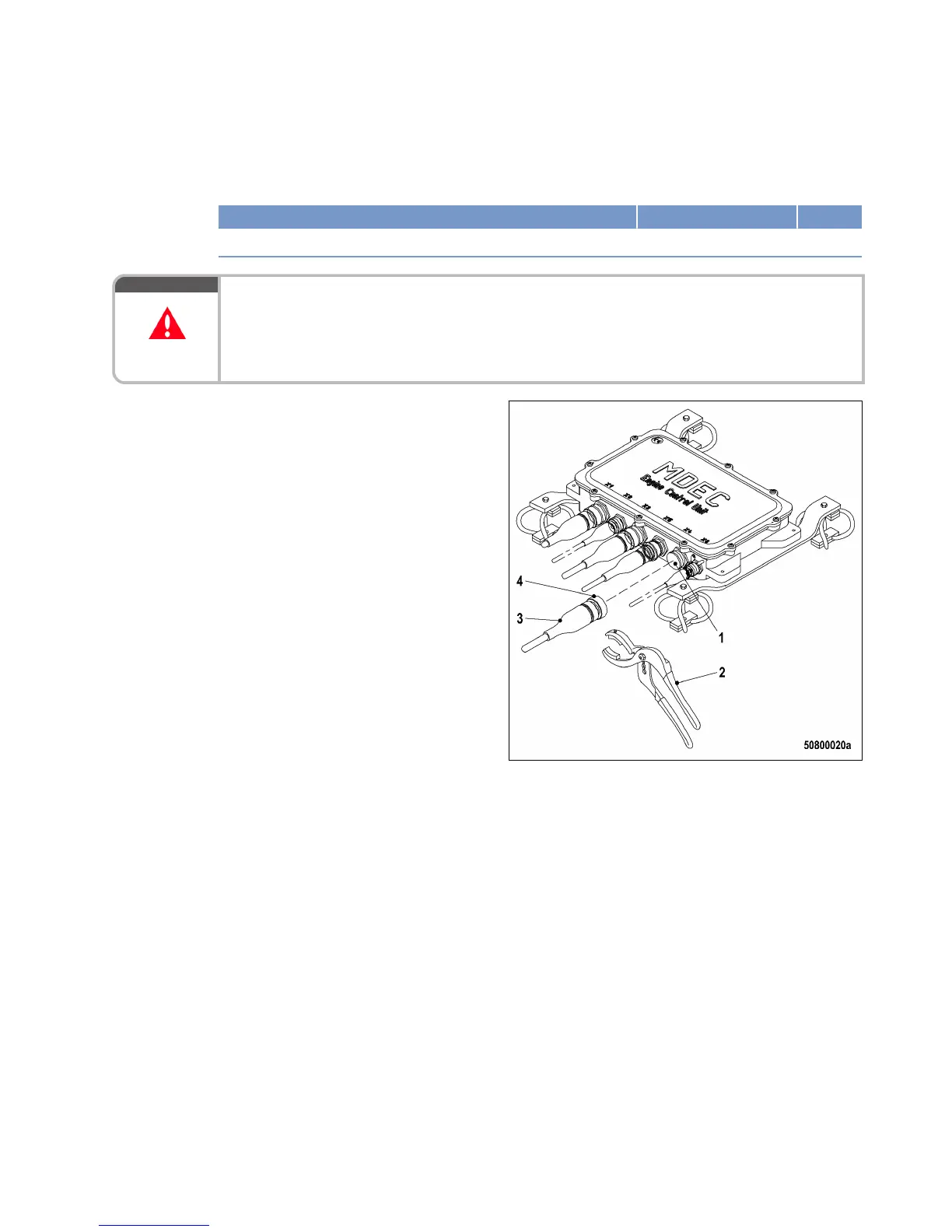

1. Disengage the bayonet coupling (4) of con‐
nector X4 with connector pliers (2) and
withdraw connector (3) from engine gover‐
nor.
2. Bar engine in unloaded condition: Press
START button.
3. Let the crankshaft rotate until oil pressure is
indicated.
4. Engine start is automatically interrupted
when specified starting period is expired. If
necessary, re-start the engine after approx.
20 seconds.
5. Plug connector X4 (3) and use connector
pliers (2) to secure the bayonet coupling (4)
by turning it clockwise until it latches into
place.
MS150031/03E 2011-10 | Task Description | 105
TIM-ID: 0000000950 - 002
