6.18 Battery-Charging Generator
6.18.1 Battery-charging generator drive – Drive belt check and adjustment
Preconditions
☑ Engine is stopped and starting disabled.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Assembly device
F6559691 1
Preparatory steps

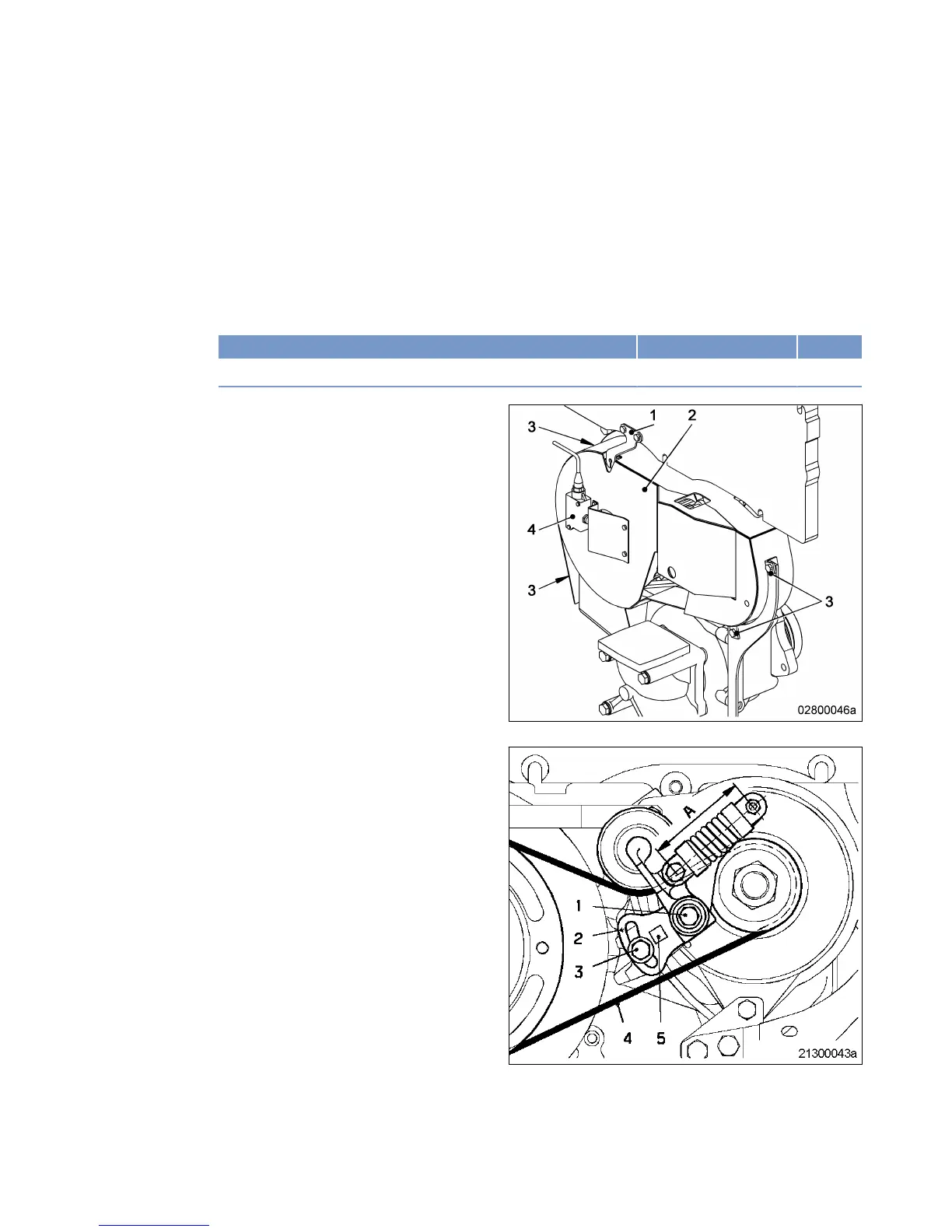

1. Remove limit switch (4).
2. Remove indicator (1).
3. Remove screws (3) of protective cover (2).
4. Remove protective cover.
5. Check drive belt condition (→ Page 166)
Belt drive – Checking distance
1. Measure distance (A) with assembly de‐
vice.
2. If measured value of distance (A) is not
within the tolerance of 98 mm ± 1.5 mm, re‐
adjust belt tension.
MS150031/03E 2011-10 | Task Description | 167
