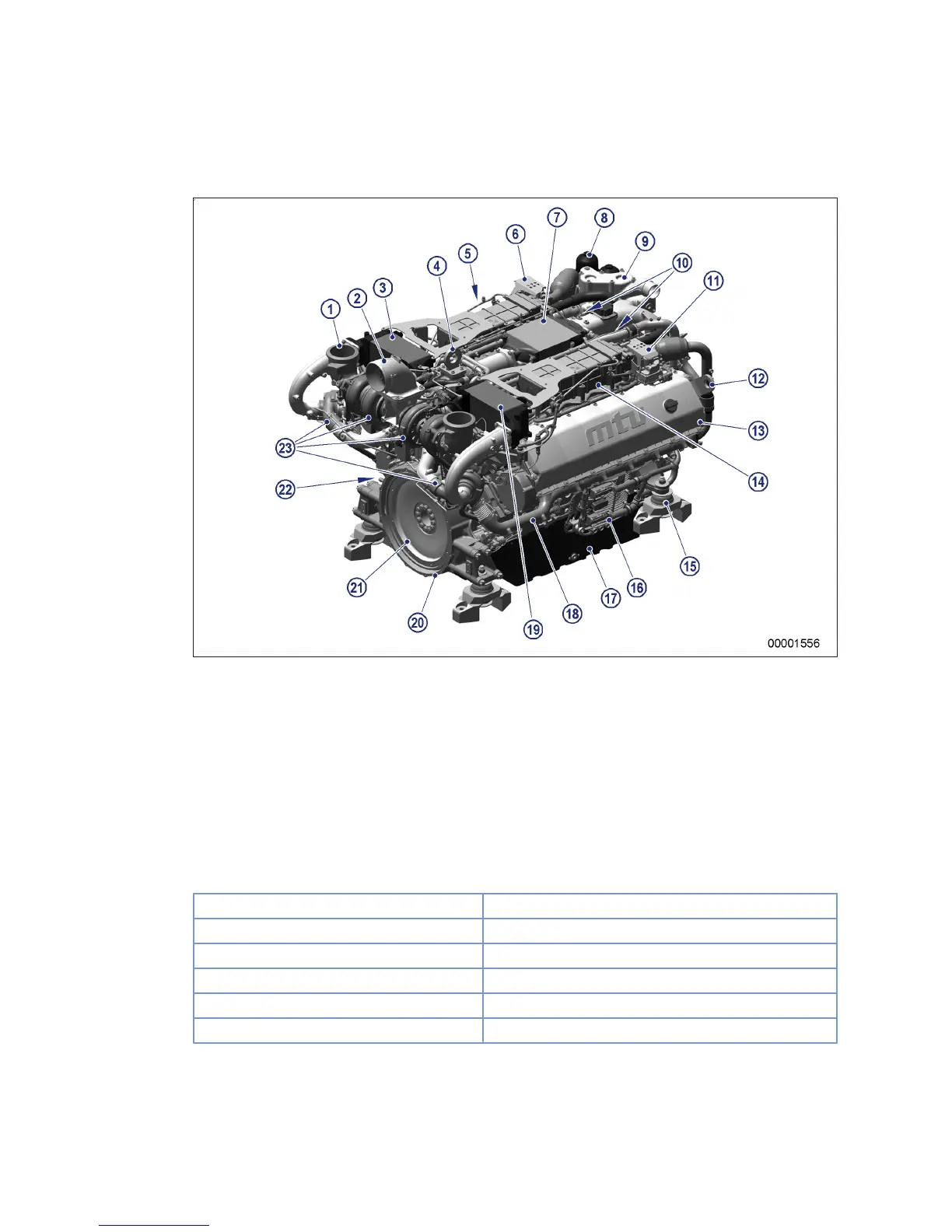

2.2 Engine layout
1 Exhaust outlet
2 Air intake
3 Intercooler
4 Lifting eye, driving end
5 Oil dipstick
6 EGR flap in front of EGR
cooler
7 Intercooler
8 Fuel filter
9 Thermostat housing
10 Oil filter
11 EGR flap in front of EGR
cooler
12 Lifting eye, free end
13 Cylinder head
14 EGR cooler
15 Engine mounting
16 Engine governor
17 Oil pan
18 Exhaust elbow
19 Intercooler
20 Flywheel housing
21 Flywheel
22 Starter
23 Exhaust turbocharger
Engine model designation
Key to the engine model designations 12 V 1600 Rxy
12 Number of cylinders
V Cylinder arrangement: V engine
1600 Series
R Application
x Application segment
y Design index
