MI.NET MULTI-NETWORK COLLECTOR
38
Installation and Operation Manual
SOLAR BATTERY SIGNAL WIRING
This section describes wiring connections between the RSM and the MNC to enable battery alarm signal transfer. Ultimately,
alarms are displayed in the Mi.Host interface.

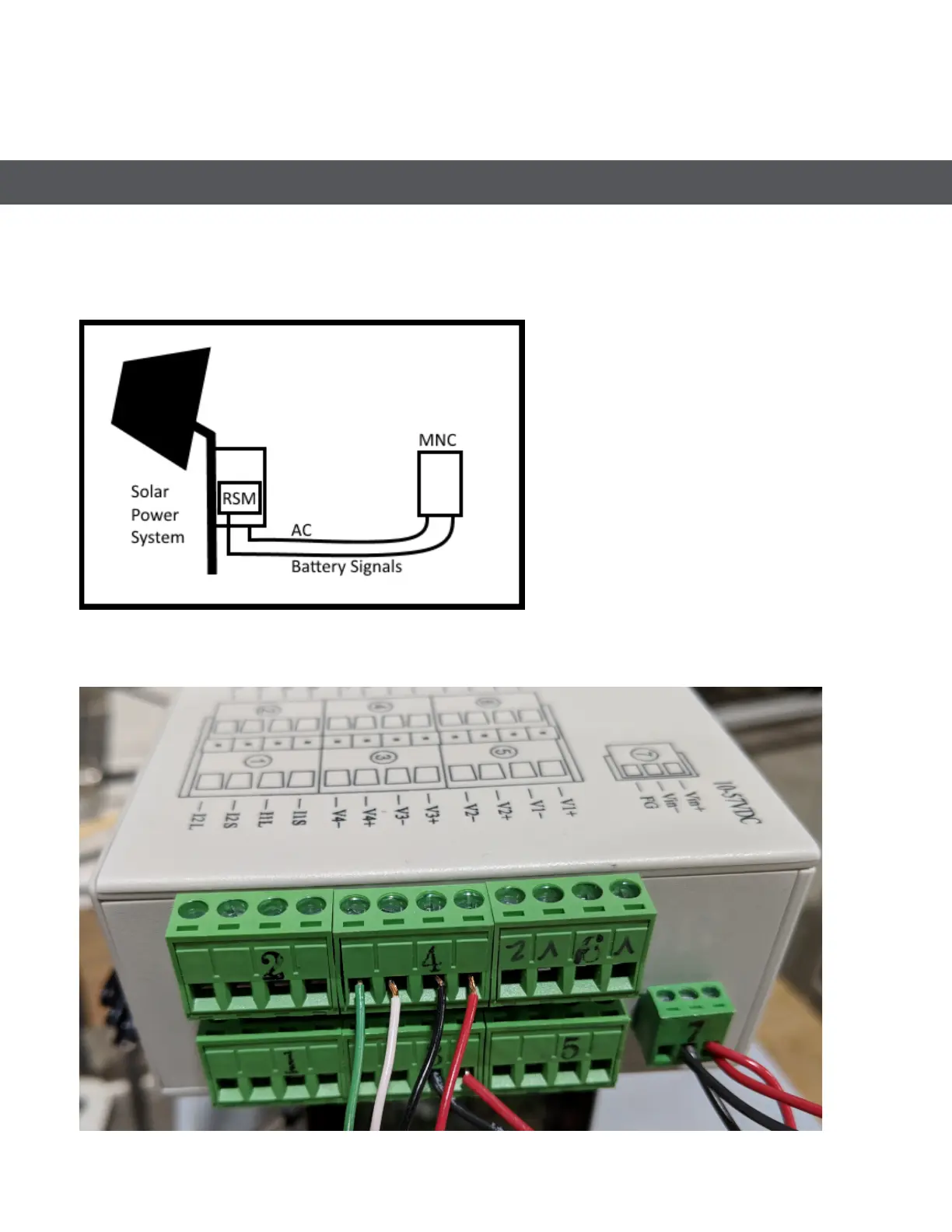

Figure A4-1 Battery signal connection to MNC
Battery signal wiring should be connected from the RSM in the solar power system to the MNC. Connect the RSM signal wires to
Terminal block 4 as shown in Figure A4-2 (note, this image is for guidance only; your RSM may have additional wiring).
Figure A4-2: RSM Block 4 wiring to MNC
