Section 3
WATER COOLED UNIT EQUIPMENT SELECTION SCHEMATIC
ELECTRONIC CONTROL SETTINGS AND ADJUSTMENT INSTRUCTIONS
DFX SERIES 1E CONTROLLER AND PROBE:
The controller is electronic, and is supplied with a temperature probe. The Cut-Out
and Cut-In temperatures are factory set at Welbilt (Halesowen) Ltd, and should not
require any adjustment.
They are as follows:
Cut-Out: -2.0°C
Cut-In: +0.5°C
However, the controller has a built-in feature that allows each individual account
RSHUDWLQJSURȴOHWREHVHWXSWRRSWLPLVHSRZHUXVDJH7KLVIHDWXUHFRQVHUYHVHQHUJ\
by powering down the cooler overnight, during the account closed period. There
is a 7-day timer in the software, with factory default settings which shut the cooler
GRZQDWSPDQGUHVWDUWWKHFRROHUDWDP)RUDFFRXQWVZKHUHWKLVSURȴOH
is inappropriate, the timer must be set-up to suit the individual account, in order to
maximise energy savings. Please refer to the Dfx Series 1e Instruction Manual sent with
the unit for guidance on setting up this feature.
Adjustment Guide:
1RWH7KH&XW2XWDQG'LHUHQWLDO7HPSHUDWXUHDUHIDFWRU\VHWDWWelbilt
(Halesowen) Ltd$Q\DGMXVWPHQWWRWKHVHVHWWLQJVPD\DHFWWKHSHUIRUPDQFHHQHUJ\
saving characteristic and ice weight of the unit. It is not recommended that either of these
parameters is adjusted without consultation with Welbilt (Halesowen) Ltd Engineering
Department.

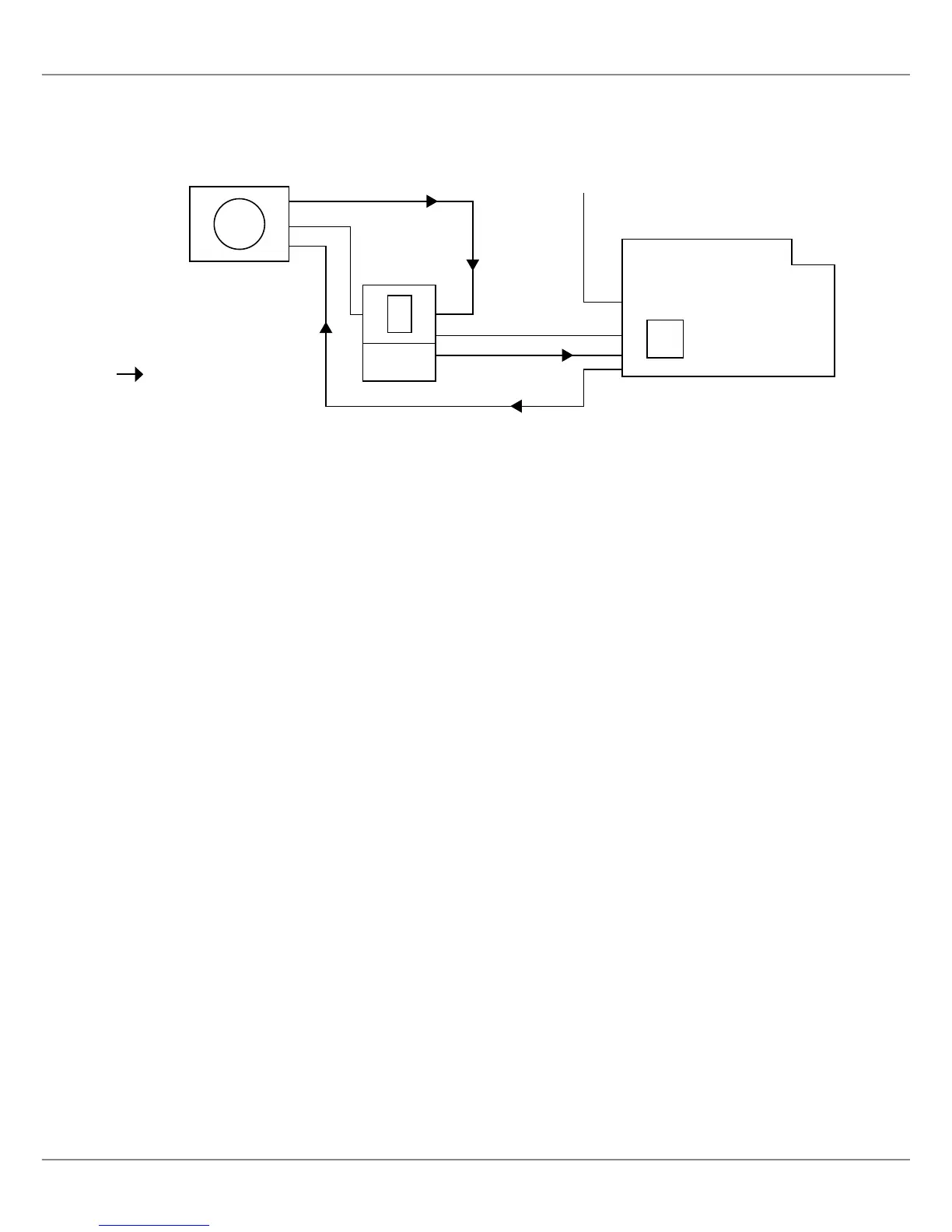

HEAT DUMP
230V Mains Supply
BASE UNIT
230V Supply
24 VAC
GLYCOL
MODULE
Coolant Flow
To Next Page
