Multiplex Icecore 10 R290 User Manual

28
Section 5
Section 5 – Spare parts list
01-3000-xx Hyper Warwick Integral
REF PART No. DESCRIPTION QTY
1 PI57433 Fan Motor Blade 9" Aluminium (Sucker) 1
2 PI43513 Clip-In Shuttered Socket 1
3 PI56613 DFX1E C\W Short Probe 1
4 SA57798 Condenser Motor Assembly 1
5 SA57810 Elco Agitator Motor Assembly (With Agitator Blade) 1
6 OP73718 Filler Plug 1
7 OP71737-01 Green Neon Indicator 1
8 PI56363 Slide Switch 1
9 MM57765 Icecore 15 Fan Motor Bracket - 9” 1
10 PI48538 M5 X 6Mm Three Blade Agitator 1
11 PI57901 Mag Drive Soda Pump Insulation 1
12 MO57785 Mag Drive Soda Recirc Motor 1
13 OP73711 Neon Indicator Red 1
14 SA57727 Pump Spares Kit Hyper Warwick R290 1
15 SG-73-0027 Rubber Foot 30Dia X 18 H 6
16 OP74326 Capacitor (Secop Ref 117U5017) 1
17 PI015427 Start Relay (Secop Ref 117U7019) 1
18 PM57936 Hyper Warwick R290 Packing (NOT SHOWN) 1
BALLOONS REFERENCE SPARE PARTS LIST PAGE #34

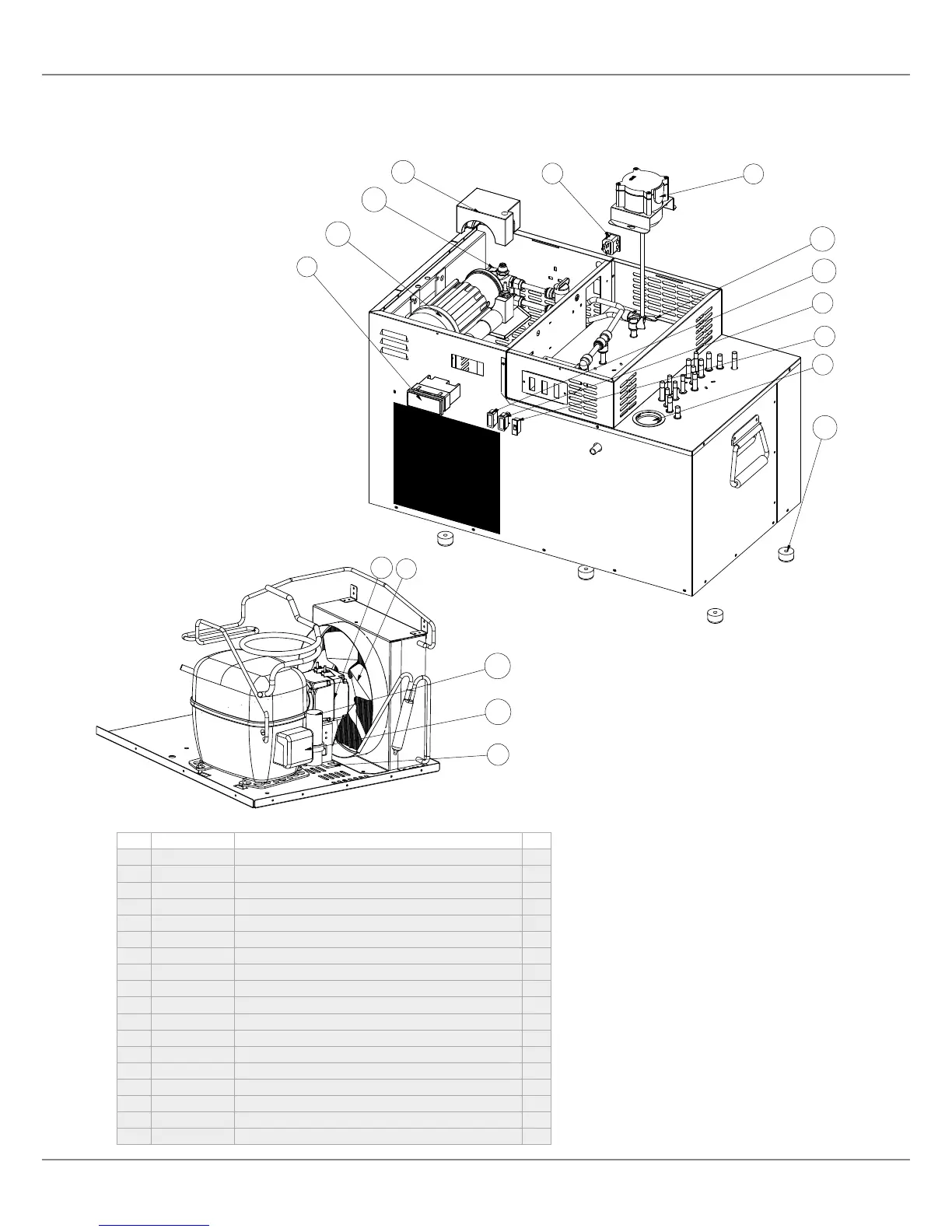

01-3000-01 HYPER WARWICK R290 INTEGRAL SPARES PART 2.
1
4
9
16
17
BALLOONS REFERENCE SPARE PARTS LIST PAGE #34
01-3000-01 HYPER WARWICK R290 INTEGRAL SPARES PART 1.
11
14
12
3
5
2
13
7
8
6
15
10
BALLOONS REFERENCE SPARE PARTS LIST PAGE #34
01-3000-01 HYPER WARWICK R290 INTEGRAL SPARES PART 1.
11
14
12
3
5
2
13
7
8
6
15
10
