Multiplex Icecore 10 R290 User Manual

29
Section 5
01-3001-xx Hyper Warwick Water Cooled
REF PART No. DESCRIPTION QTY
1 MO46686 4” Box Fan 1
2 PI43513 Clip-In Shuttered Socket 2
3 PI56613 DFX1E C\W Short Probe 1
4 SA57810 Elco Agitator Motor Assembly (With Agitator Blade) 1
5 OP73718 Filler Plug 1
6 OP71737-01 Green Neon Indicator 1
7 PI42589 Thermal Switch 1
8 PI57649 Hyper Warwick Heat Exchanger Flow Tube 1
9 PI57650 Hyper Warwick Heat Exchanger Return Tube 1
10 PI48538 M5 X 6Mm Three Blade Agitator 1
11 PI57901 Mag Drive Soda Pump Insulation 1
12 MO57785 Mag Drive Soda Recirc Motor 1
13 OP73711 Neon Indicator Red 1
14 SA57727 Pump Spares Kit Hyper Warwick R290 1
15 PI53547 Size F Herbi Clip 2
16 SG-73-0027 Rubber Foot 30Dia X 18 H 6
17 PI56363 Slide Switch 1
18 OP74326 Capacitor (Secop Ref 117U5017) 1
19 PI015427 Start Relay (Secop Ref 117U7019) 1
20 PM57936 Hyper Warwick R290 Packing (NOT SHOWN) 1
BALLOONS REFERENCE SPARE PARTS LIST PAGE #35

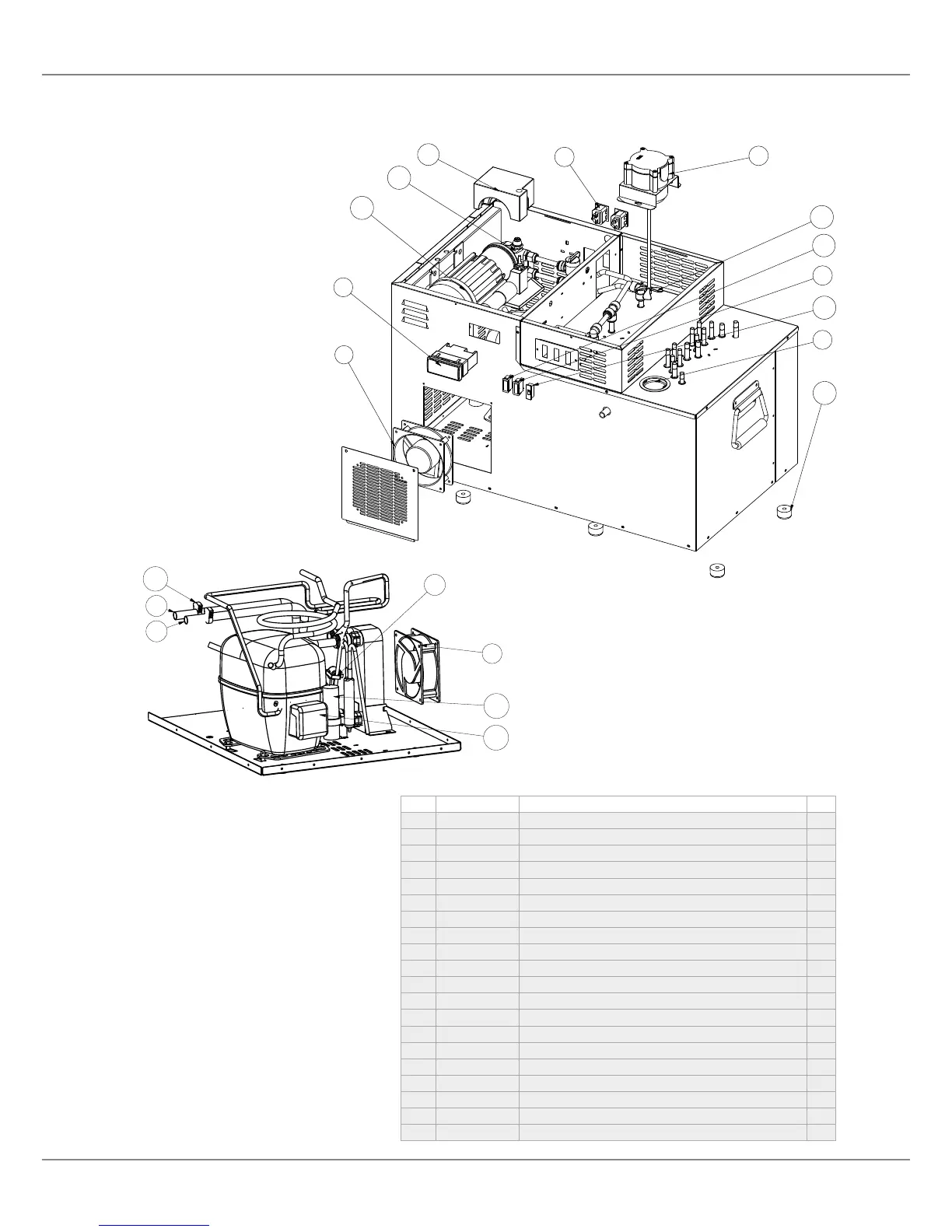

01-3001-01 HYPER WARWICK R290 WATER COOLED SPARES PART 2.
1
15
9
8
7
18
19
01-3001-01 HYPER WARWICK R290 WATER COOLED SPARES PART 1.
14
12
1
3
BALLOONS REFERENCE SPARE PARTS LIST PAGE #35
11
4
13
6
17
5
16
2
10
01-3001-01 HYPER WARWICK R290 WATER COOLED SPARES PART 1.
14
12
1
3
BALLOONS REFERENCE SPARE PARTS LIST PAGE #35
11
4
13
6
17
5
16
2
10
