Multiplex Icecore 10 R290 - Page 31

31
Section 5
26
INTEGRAL FRIDGE SPARES
(P30/31)
21
20
23
19
15
24
22
18
25
INTEGRAL FRIDGE SPARES
(P30/31)
28
29
34
31
32
33
30
27
INTEGRAL FRIDGE
WATERCOOLED FRIDGE SPARES
(P31)
28
29
30
27
35
36
37
38
39
40
41
WATER COOLED FRIDGE

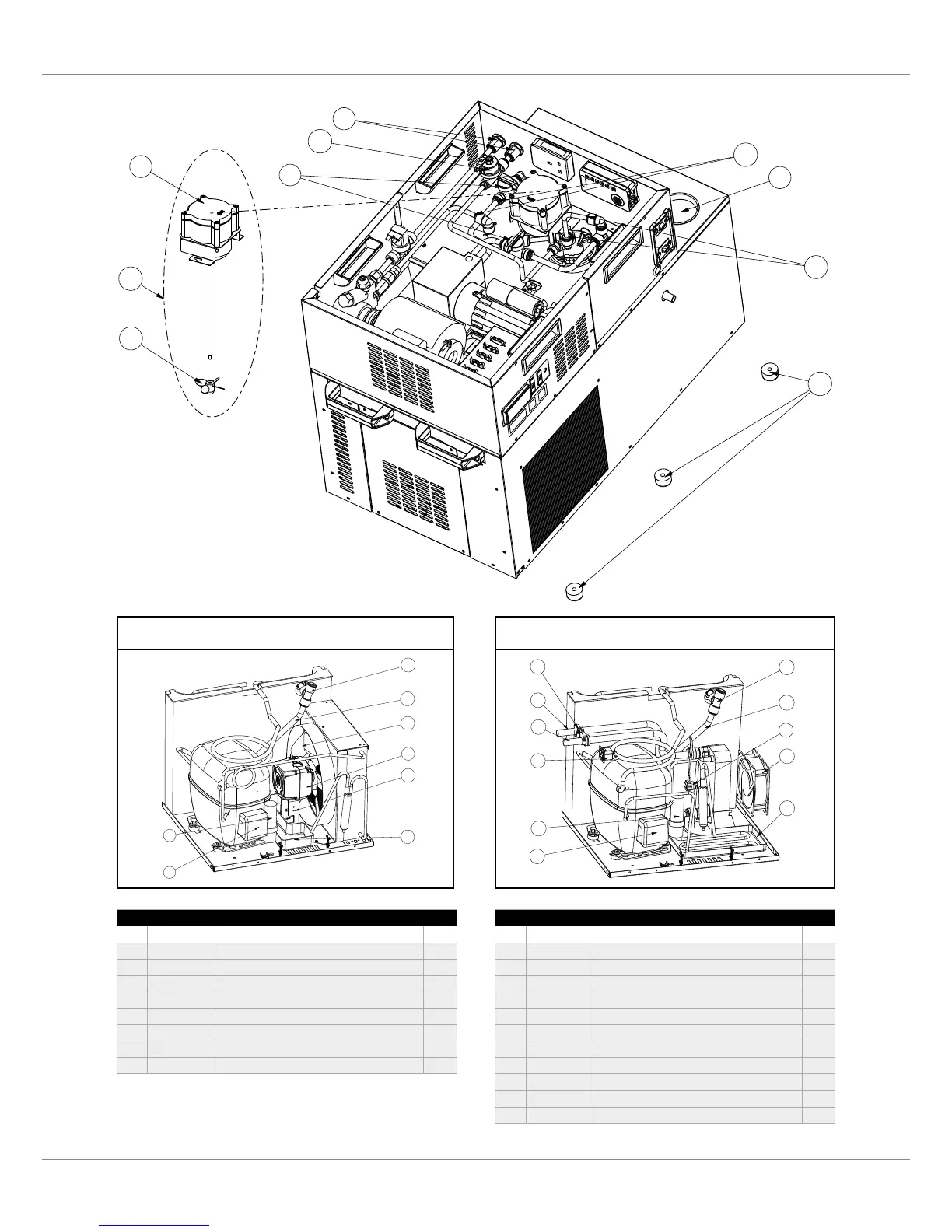

IC10 INTEGRAL FRIDGE SPARES (11-1000-xx)
REF PART No. DESCRIPTION QTY
27 OP74326 CAPACITOR (SECOP REF 117U5017) 1
28 OP72923 JOHN GUEST 1/2" EQUAL TEE 1
29 TA015941 IC10 BATH TO BOIL OFF TRAY TUBE 1
30 PI015427 START RELAY (SECOP REF 117U7019) 1
31 SA57798 CONDENSER MOTOR ASSEMBLY 1
32 MM57765 IC15 FAN MOTOR BRACKET 9" 1
33 PI015933 IC10 INTEGRAL BOIL OFF TRAY 1
34 PI57433 FAN MOTOR BLADE 9" ALUMINIUM 1
IC10 INTEGRAL FRIDGE SPARES (11-1000-xx)
REF PART No. DESCRIPTION QTY
27 OP74326 CAPACITOR (SECOP REF 117U5017) 1
28 OP72923 JOHN GUEST 1/2" EQUAL TEE 1
29 TA015941 IC10 BATH TO BOIL OFF TRAY TUBE 1
30 PI015427 START RELAY (SECOP REF 117U7019) 1
35 PI43513 CLIP IN SHUTTERED SOCKET 1
36 PI57649 HEAT EXCHANGER FLOW TUBE 1
37 PI57650 HEAT EXCHANGER RETURN TUBE 1
38 PI53547 SIZE F TUBE CLIP 2
39 MO46686 4" BOX FAN 1
40 PI015956 IC10 WC BOIL OFF TRAY 1
41 PI42589 THERMAL SWITCH 1
