Multiplex Icecore 10 R290 User Manual

39
Section 7
11-1000-xx / 11-1001-xx
ICECORE 10
COLD CARB (11-1000-xx)
INTEGRAL
ICECORE 10
COLD CARB (11-1001-xx)
WATER COOLED

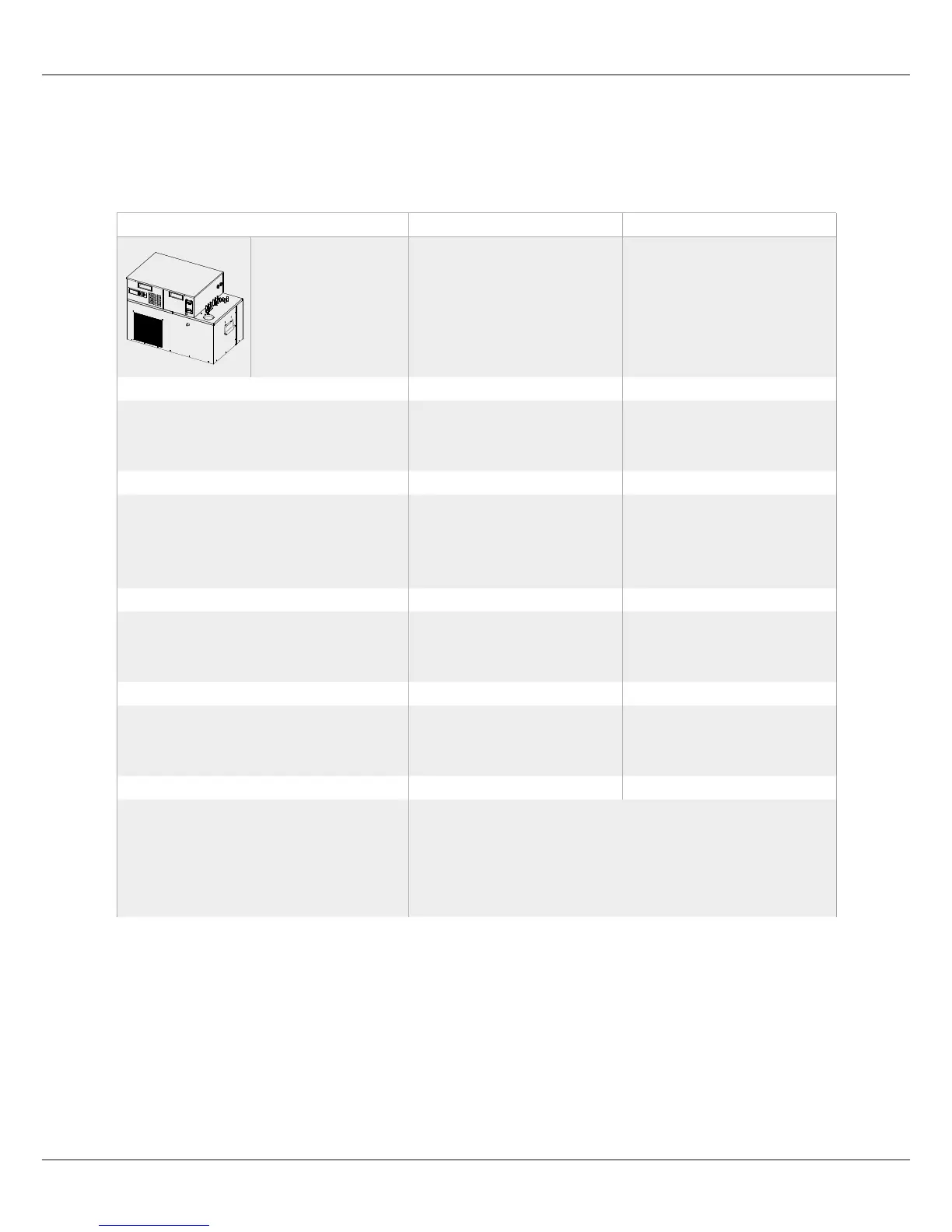

Physical Data
Height 535 mm 535 mm
Width 762mm (inc. handles) 762mm (inc. handles)
Depth 440 mm 440 mm
Operating Weight 87 kgs 87 kgs
Max Noise dB(A) 70 dBA 70 dBA
Climatic Class 3 3
Electrical
Mains Voltage 220-240 VAC, 50 Hz 220-240 VAC, 50 Hz
Run Current 5.5 Amps 7.25 Amps
Fuse Rating 10 Amps 10 Amps
Refrigeration
Compressor Size 12cc 12cc
Duty @ 24ºC Ambient 720 Watts 720 Watts
Refrigerant R290 (GWP 3 CO2e 0.42Kg) R290 (GWP 3 CO2e 0.42Kg)
Charge 140 grams 100 grams
Controls
Ice Bank Control DFX 1e Electric Control DFX 1e Electric Control
Panel Switches 1 slide switch for soda pump 1 slide switch for soda pump
1 slide switch for carb pump 1 slide switch for carb pump
System protection
Compressor Klixon Klixon
Carbonator Pump Thermal Fuse Thermal Fuse
Recirc Pump Thermal Fuse Thermal Fuse
Coils
Syrup coils 6 x 1.2m 5/16” OD, 316 Stainless steel
Soda coil 11m 3/8” OD, 316 Stainless steel
Pre-chill coil 8m 3/8” OD, 316 Stainless steel
Re-chill coil 4m 3/8” OD, 316 Stainless steel
Still water coil 4.2m 3/8” OD, 316 Stainless steel
6SHFLȴFDWLRQV
