Part Number: 9290312 October/22/2018 13
Section 2 Installation
Important
Allow four (4)ft (1.22m) of tubing for a service loop to
allow the cabinet to be pulled out during service and
cleaning. Cut off extra tubing if needed.
8. Once connections have been made put the solenoid
cover back into place.
Drip tray
9. Place drip tray or drain pan in proper location lined up
below the dispensing taps.
Important
Drip trays equipped with a drain need to be sealed to
the counter top, be sure to follow all local codes.
NITROGEN REGULATOR & TANK ASSEMBLY
DANGER
Tank under high pressure. Do not drop or allow tank to
fall over. Tank must be chained and secured to prevent
movement as per OSHA requirements. Do not attempt to
handle or connect to tank unless properly trained.
NITROGEN IS AN ASPHYXIANT GAS. A LEAK IN AN
ENCLOSED AREA COULD DISPLACE OXYGEN AND CAUSE
ASPHYXIATION. ALWAYS TEST GAS HANDLING SYSTEMS
FOR LEAKS. A N2 GAS DETECTOR IS RECOMMENDED.
Nitrogen cylinders contain high-pressure gas which can
be hazardous if not handled properly. Make sure you READ
and UNDERSTAND the following procedures for nitrogen
cylinders BEFORE installation.
Important
Use only food grade nitrogen (99.5% pure).
1. ALWAYS connect the nitrogen cylinder to the primary
regulator and NEVER directly to the unit, keg, or
dispensing system. Failure to do so could result in
an explosion with possible death or injury when the
cylinder valve is opened.
2. ALWAYS follow correct procedures when cylinders are
changed.
3. ALWAYS secure the cylinder in an upright position with
a chain.
4. NEVER drop or throw a nitrogen cylinder.
5. ALWAYS keep a nitrogen cylinder away from heat.
Store extra cylinders in a cool place (preferably 70°F).
Securely fasten with a chain in an upright position
when storing.
6. ALWAYS check the D.O.T. test date on the cylinder neck
before installation. Ask your gas supplier for D.O.T. test
requirements.
7. NEVER connect a product container unless there is
a safety in the pressure system at or on the nitrogen
regulator.

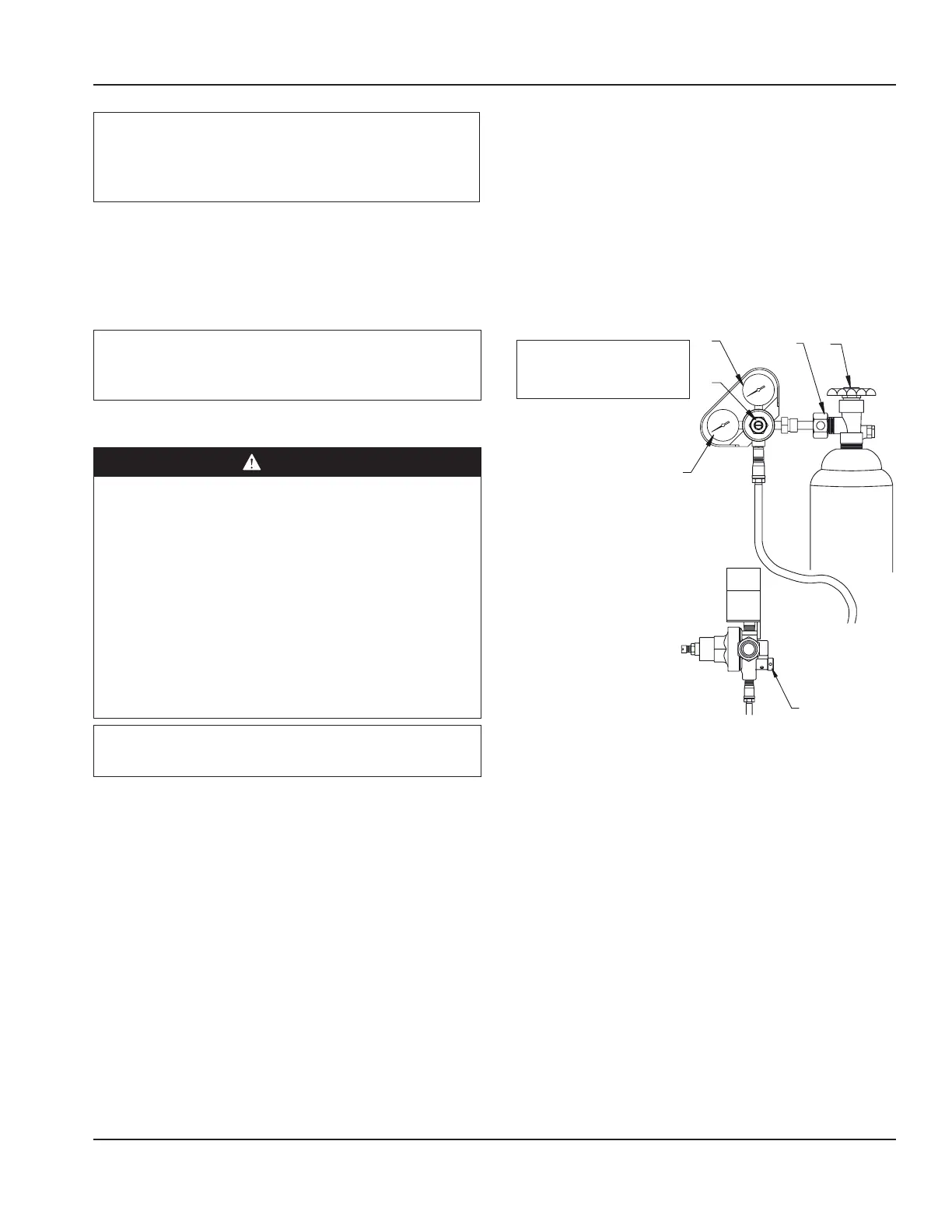

NITROGEN INSTALLATION/REPLACEMENT
NOTE: During initial installation of the unit a bracket for the
nitrogen cylinder must be installed to solid wall nearby and
a chain used to secure it to the bracket.
n
Warning
Verify gauge orientation
before setting pressures!
E
B
NITROGEN
NITROGEN
INTEGRAL SAFETY
DEVICE
TO PRODUCT
CONTAINER
1. Make sure cylinder valve “A” is closed.
2. Unscrew (counter clockwise) regulator key “B” as far out
as it will go. (The regulator is now in the off position.)
3. Remove regulator from empty cylinder at “D”.
4. Remove dust cap from new cylinder at “D”. Open and
close valve “A” quickly to blow dust from outlet.
5. With cylinder valve “A” in closed position, re-attach
regulator to cylinder at “D”.
6. Open valve “A” all the way. (This is important because
this cylinder valve seals in two places.)
7. Screw regulator key “B” in (clockwise) until required
pressure is reached “E”.
NOTE: Drinks will not pour if outlet valve “A” is closed.
To Next Page
