22 Part Number: 9290312 October/22/2018
Operation Section 3
NITROGENATOR
Nitrogen tank is equipped with a pressure relief valve that
will automatically purge when pressure exceeds operating
limit of the system of 100 psi (.689 MPa, 689 kPa, 6.89 bar).
When valve relieves there may be a quick pressure relief
sound heard coming from cabinet. Relief sound shouldn’t
last more than a few seconds and may not be noticeable on
an audible level.

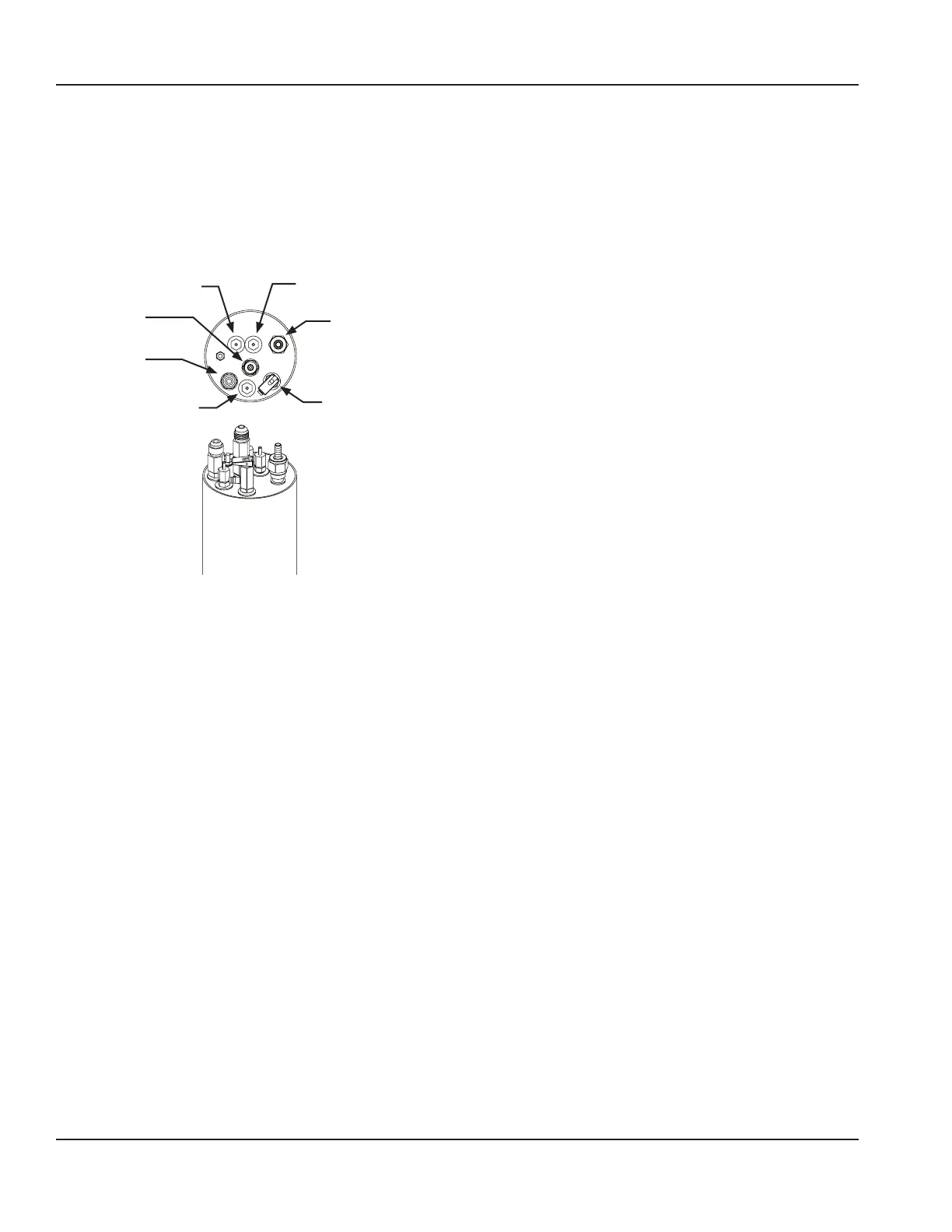

Low Probe
(Black)
Liquid Inlet
(3/8" Flare)
N₂ Inlet
(1/4" Flare)
Common Probe
(White)
PRV Pressure
Relief Valve
(1/4" Barb)
Liquid Outlet
(3/8" Flare)
High Probe
(Red)
