18 Part Number: 9290312 October/22/2018
Installation Section 2
DOOR HINGE REVERSAL
Instructions for installations that require the cabinet door to
be reversed.
1. Use a screwdriver to remove the bottom hinge pin.
NOTE: Lock-tight was used during factory installation, so
extra force may be required.
2. Tilt door out from bottom and slide top pin out of the
hinge bracket.
3. Remove top hinge pin from door.
4. Use a putty knife or similar tool to remove both plugs
from door to expose alternate hinge pin locations and
re-install the plugs in original hinge pin locations.
5. Install top hinge pin on new hinge side.
6. Remove top and bottom hinge brackets from cabinet
face.

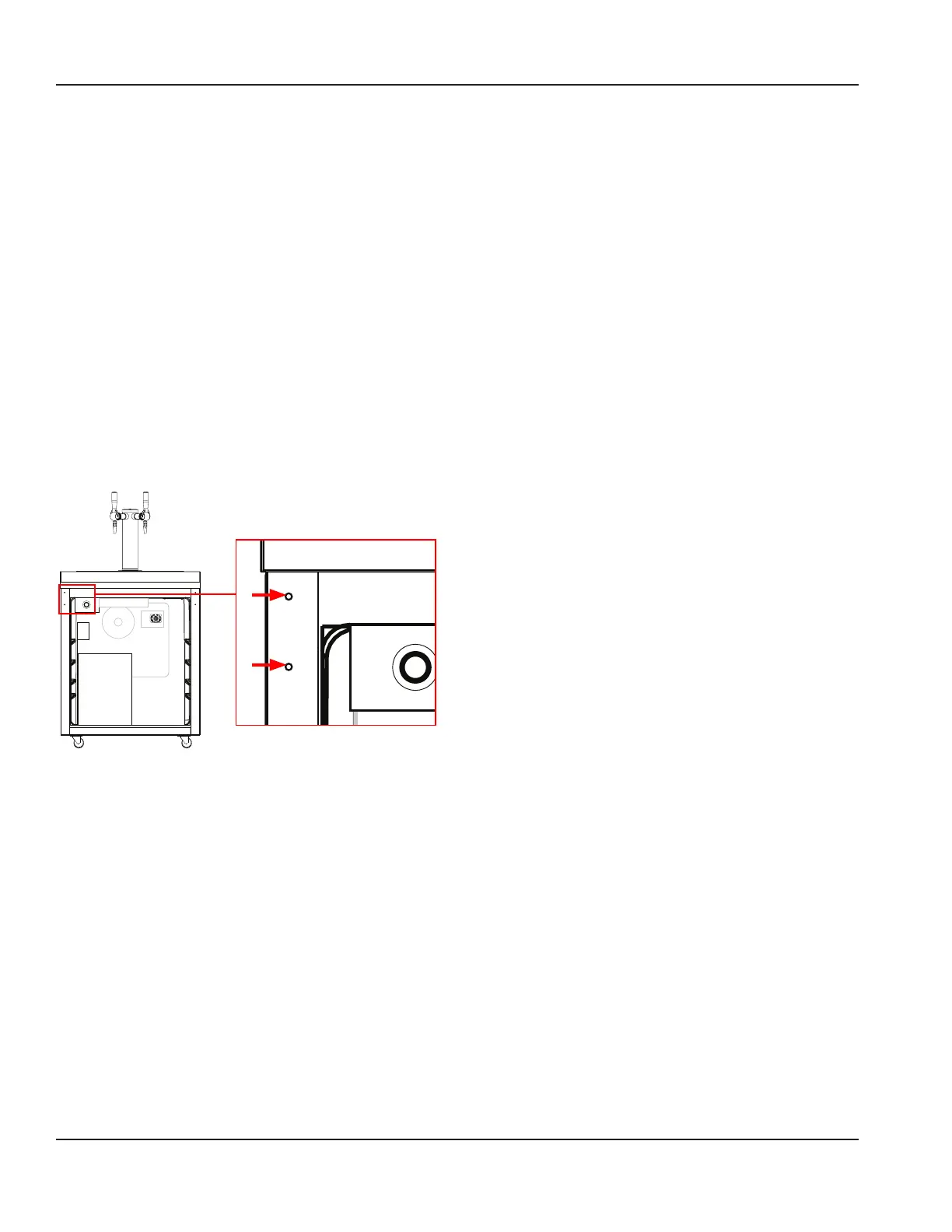

7. Locate etch marks on the opposite side of cabinet face
and drill 1/8" (0.3175 cm) holes.
8. Install top and bottom hinge brackets in new locations.
9. Slide top door hinge pin into top hinge bracket and
close door onto cabinet face.
10. Install bottom hinge pin through hinge bracket and
into door.
