WTB-16PD TRACK-DRIVE POWER BUGGY • OPERATION MANUAL — REV. #0 (08/31/20) — PAGE 33
MAINTENANCE
When performing any maintenance on the power buggy
or engine, follow all safety messages and rules for safe
operation stated at the beginning of this manual.
WARNING
Accidental starts can cause severe
injury or death.
ALWAYS place the ON/OFF switch in
the OFF position.
Disconnect and ground spark plug leads
and disconnect the negative battery
cable from the battery before servicing.
WARNING
Some maintenance operations may
require the engine to be running.
Ensure that the maintenance area
is well ventilated. Exhaust contains
poisonous carbon monoxide gas
that can cause unconsciousness and
may result in DEATH.
CAUTION
ALWAYS allow the engine to cool
before servicing. NEVER attempt any
maintenance on a hot engine.
NOTICE
Operating the engine with a blocked filter screen,
dirty or plugged cooling fins, and/or cooling shrouds
removed will cause engine damage due to overheating.
DANGER
DO NOT use gasoline as a cleaning solvent to avoid
creating the risk of fire or an explosion.
AIR CLEANER (100 HOURS)
Thoroughly remove dirt and oil from the engine and
control area. Clean or replace the air cleaner elements as
necessary. Check and retighten all fasteners as necessary.
1. Release the latch tabs (Figure 27) on each side of the
air cleaner cover and remove the cover.

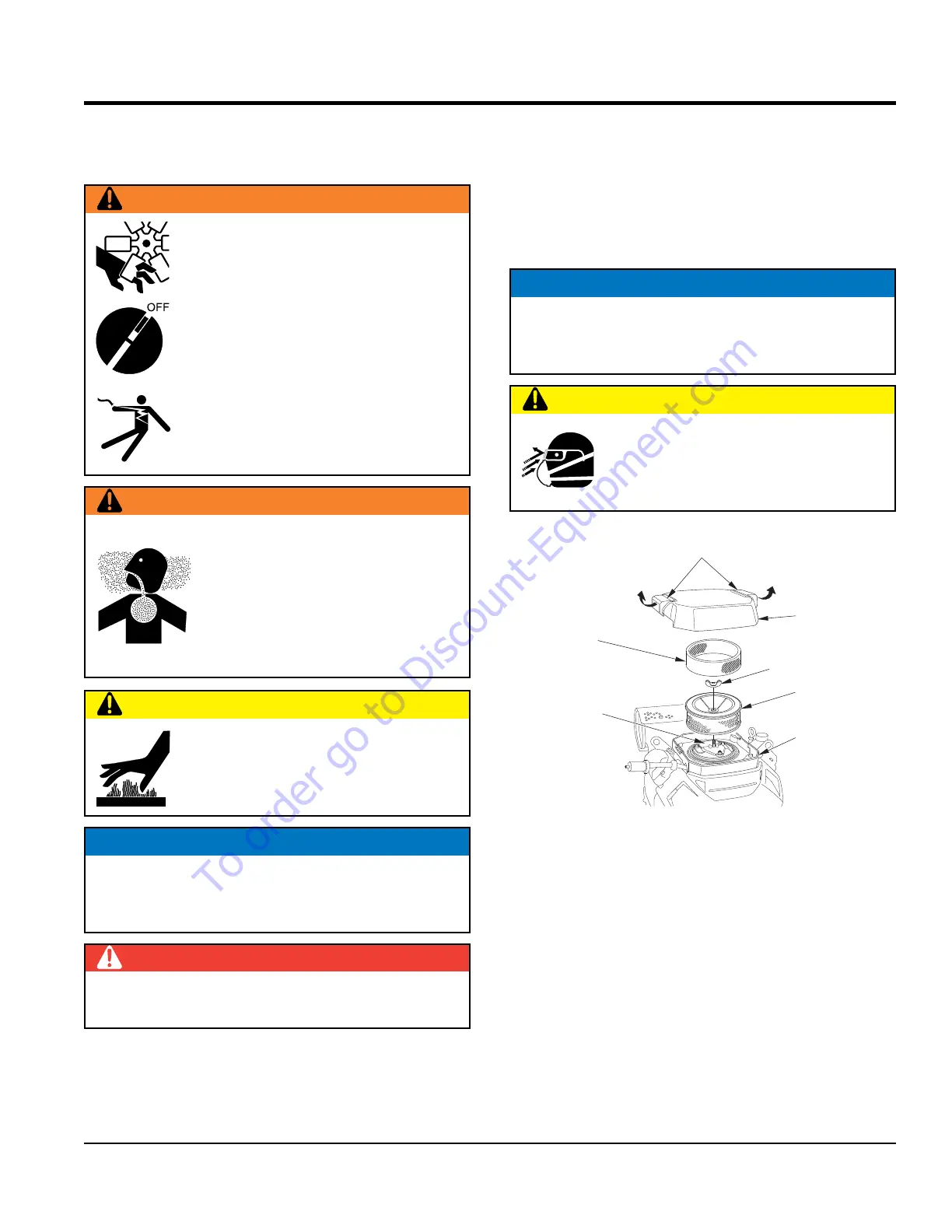

Figure 27. Air Filter Components
2. Remove the wing nut from the paper filter element.
3. Remove the outer foam filter.
4. Remove the inner paper filter.
5. Inspect both air filter elements and replace them if
necessary.
NOTICE
Operating the engine with loose or damaged air cleaner
components could allow unfiltered air into the engine,
causing premature wear and failure.
CAUTION
Wear protective equipment such as
approved safety glasses or face shields
and dust masks or respirators when
cleaning air filters with compressed air.
FOAM FILTER
ELEMENT (OUTER)
AIR CLEANER
COVER LATCHES
AIR CLEANER
WING NUT
PAPER FILTER
ELEMENT (INNER)
AIR CLEANER CASE
AIR CHAMBER
