MAINTENANCE
6. To clean the paper air filter (Figure 28), tap the filter
element several times on a hard surface to remove dirt,
or blow compressed air [not to exceed 30 psi (207 kPa,
2.1 kgf/cm²)] through the filter element from the air
cleaner case side.

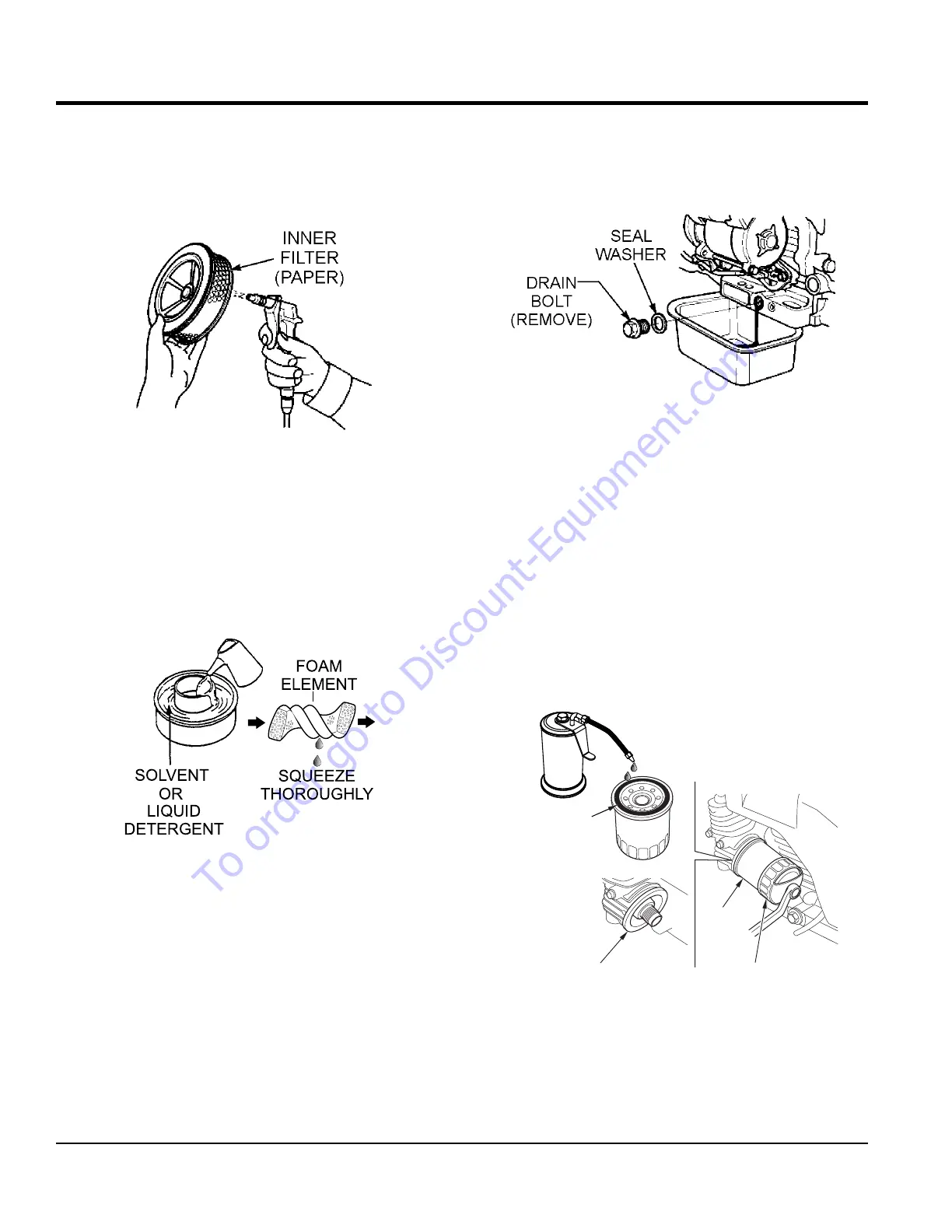

Figure 28. Cleaning Inner Paper Filter
7. NEVER! try to brush off dirt; brushing will force dirt
into the fibers. If the paper element is excessively dirty,
replace the element.
8. Clean the foam air filter (Figure 29) element in warm,
soapy water, rinse and allow to dry thoroughly, or clean
with a nonflammable solvent and allow to dry. DO NOT
pour any type of oil into the foam element.
Figure 29. Cleaning Foam Element
9. Wipe dirt from the inside of the air cleaner body and
cover using a moist cloth. Be careful not to let any
dirt or debris enter the air chamber that leads to the
carburetor.
10. Reinstall the foam air filter element to the air cleaner
cover, then reinstall the paper air filter element and
cover to the air cleaner case. Securely latch the hook
tabs onto the air cleaner cover.
CHANGING ENGINE OIL (100 HOURS)
1. Drain the engine oil into a suitable container when the
oil is warm as shown in Figure 30.
Figure 30. Draining Engine Oil
2. Remove the oil drain bolt and sealing washer and allow
the oil to drain into a suitable container.
3. Reinstall the drain bolt with sealing washer and tighten
securely.
4. Replace engine oil with the recommended type oil as
listed in Table 5. For engine oil capacity, see Table 3.
DO NOT overfill.
OIL FILTER (200 HOURS)
1. Replace the engine oil filter (Figure 31) every 200 hours.
Figure 31. Oil Filter
2. Use an oil filter socket and remove the oil filter.
3. Clean the area around the oil filter mounting base.
COAT RUBBER
SEAL WITH THIN
LAYER OF OIL
OIL FILTER
MOUNTING BASE
OIL FILTER\
SOCKET
OIL FILTER
