Category Description
Certifications and Compliance
EMC Compliance KC
Radio Compliance KC
Safety Compliance IEC 60950-1 2nd ED

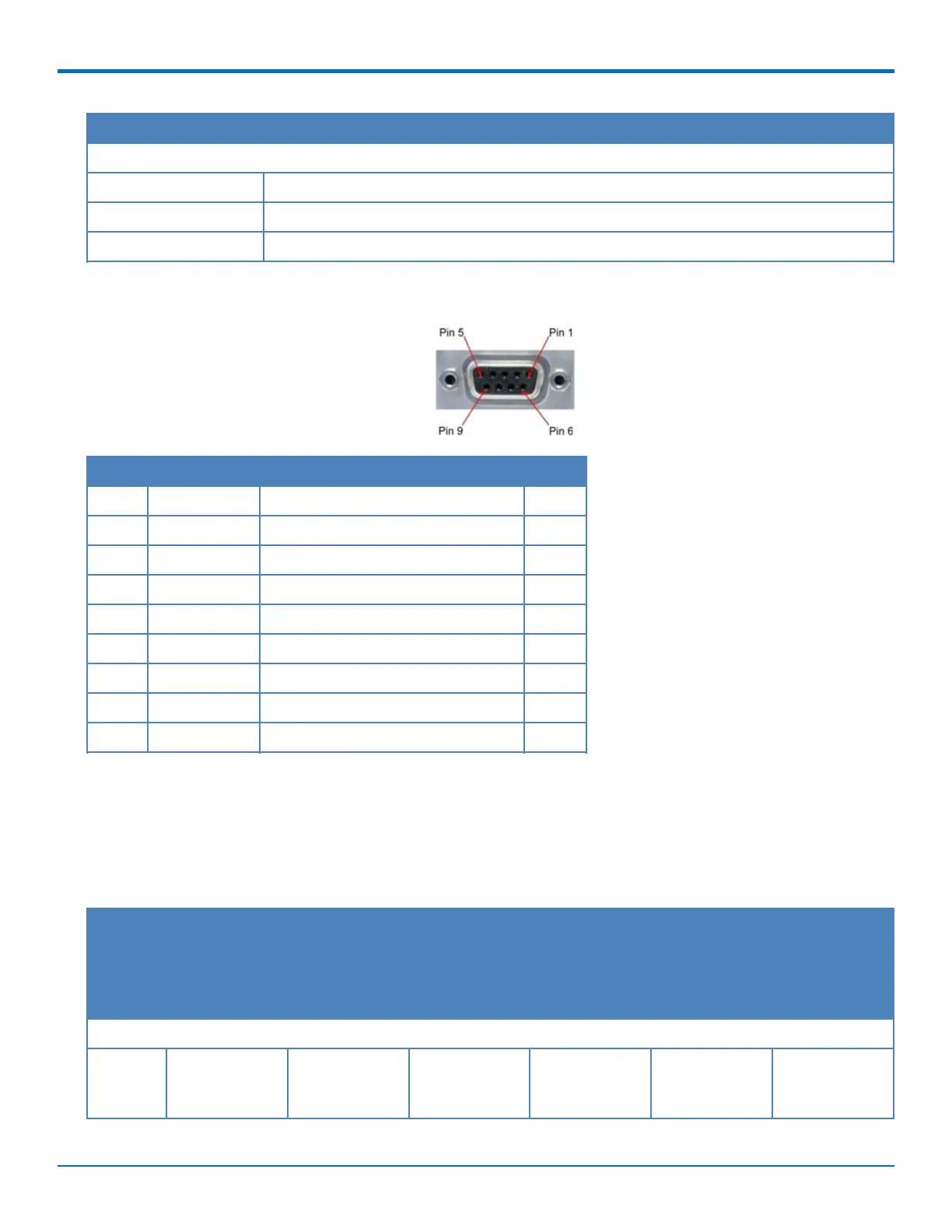

RS-232 9-Pin Female Connector
Pin Abbreviation Description In/Out
1 CD Carrier Detect O
2 RX Receive O
3 TX Transmit I
4 DTR Data Terminal Ready I
5 GND Ground --
6 DSR Data Set Ready O
7 RTS Request to Send I
8 CTS Clear to Send O
9 RI Ring Indicator O
Power Measurements
Multi-Tech Systems, Inc. recommends incorporating a 10% buffer into your power source when determining
product load.
Serial Model: MTC-MNK1-B01 Power Draw
Radio
Protocol
Sleep mode
current,
connected to
wireless
Cellular call
box
connection, no
data
Average
measured
current at
maximum
power
Average TX
pulse
amplitude
current
Total inrush
charge, in
Total inrush
charge
duration during
power-up
9 Volts
LTE 836.5
MHz
(Band 5)
12 mA 26 mA 105 mA 144 mA 0.762 mC 9.1 mS
