Description
22 11.06.2014
2 Description
2.1 Construction of the machine

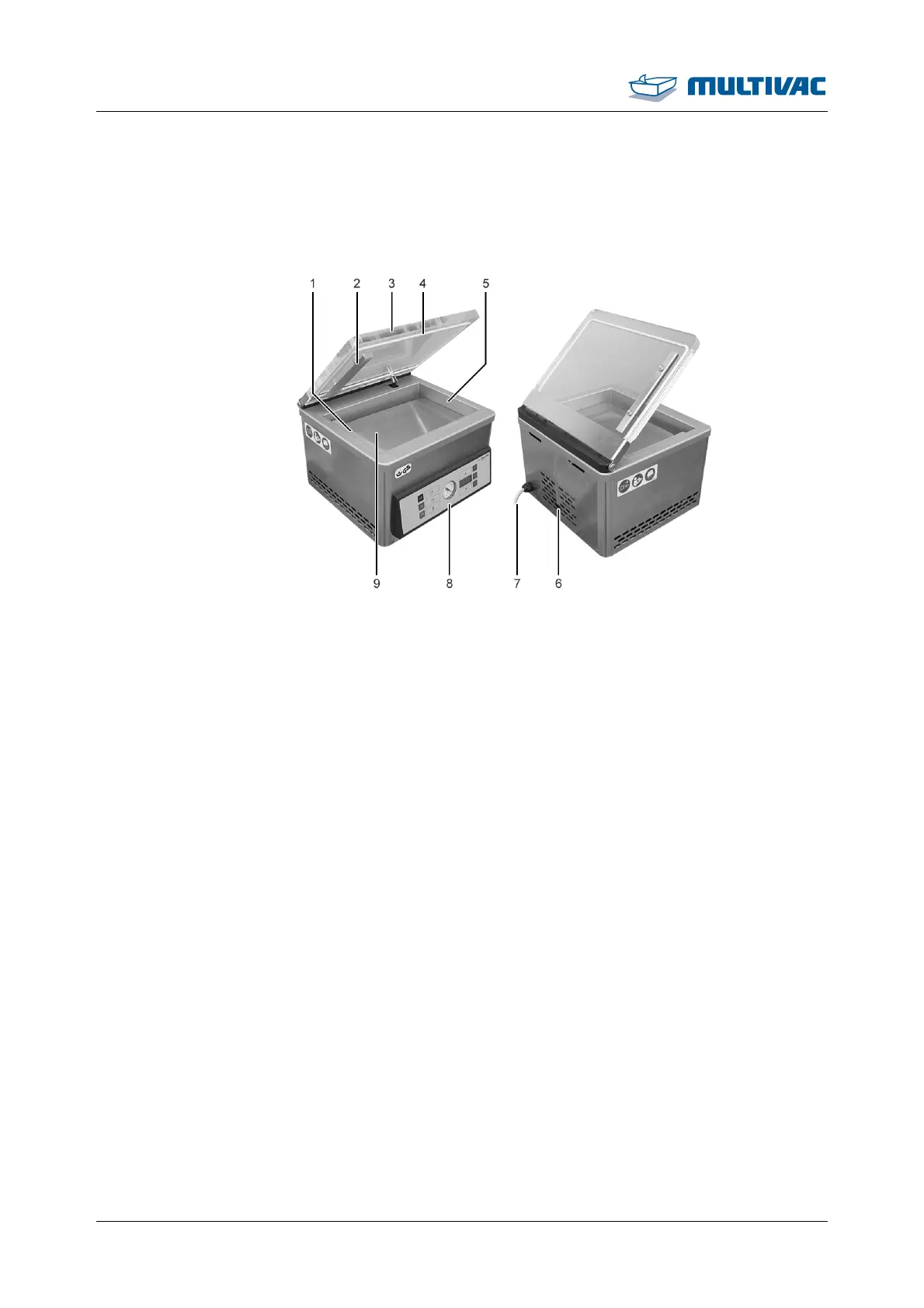

Fig. 8: Construction of the machine
1
Sealing bar
2
Counter-pressure bar
3
Chamber lid
4
Chamber lid gasket
5
Chamber
6
Oil sight glass
7
Power supply connection
8
Control terminal
9
Filling plates and sloping insert with support angle
