Section 78 00-02-0604
08-08-07 - 9 -

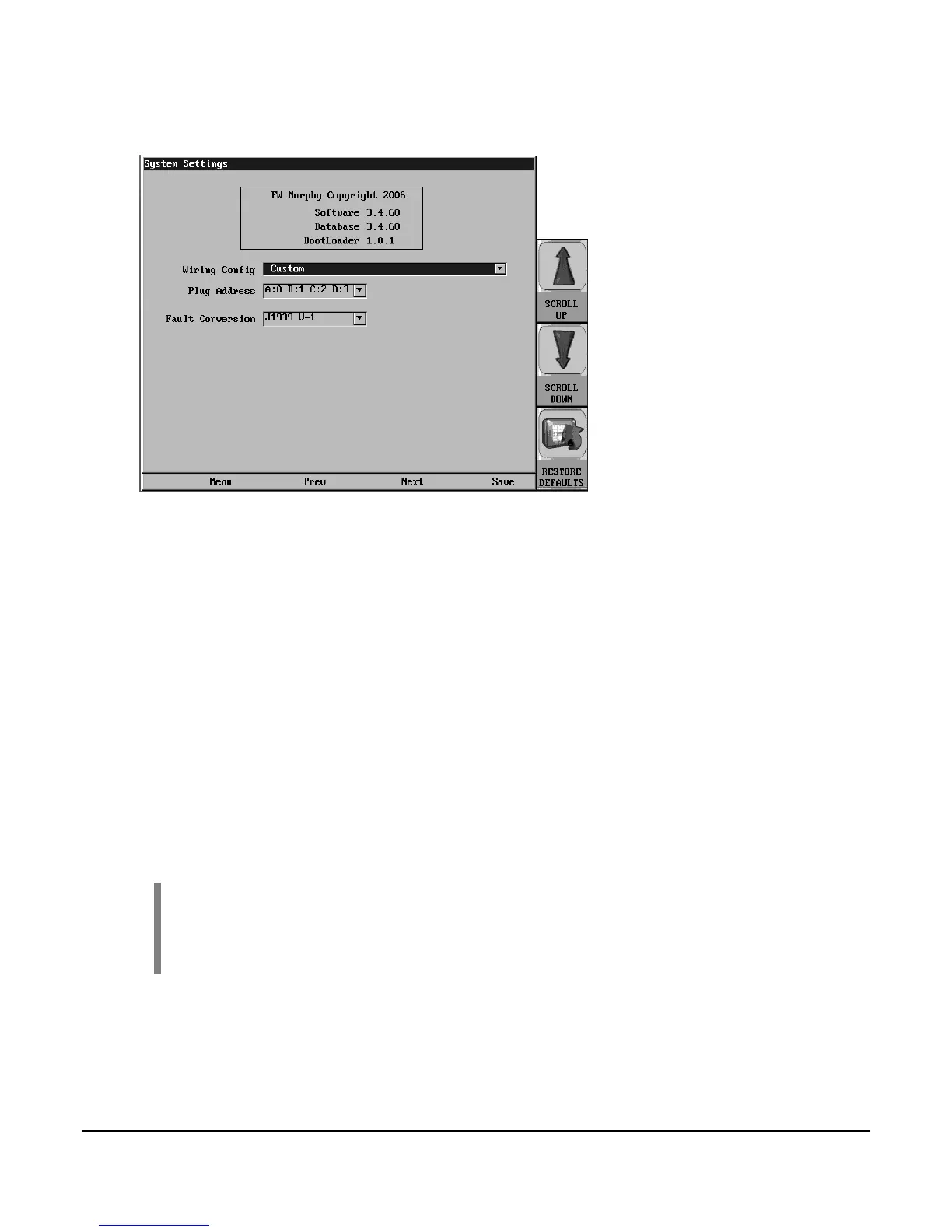

3. From the ‘Utilities’ sub-menu, select ‘System Settings’. The following screen is
displayed.
4. With the cursor highlighting the ‘Wiring Config’ field, press the Scroll Up or Scroll
Down virtual buttons (located to the right of the display), to scroll through the list of
options. The field options consist of the following:
• Custom
• (A) Engine(s) – Single Harness Plug A-Port, Stbd
• (B) Engine(s) – Single Harness Plug A-Stbd, Port
• (C) Engines – Dual Harness Plug A&B-Port, Stbd
• (D) Engines – Dual Harness Plug A&B-Stbd, Port
• (E) NMEA – Plug D-Port, Stbd
• (F) NMEA – Plug D-Stbd, Port
NOTE: This setting needs to match the wiring configuration for how your
HV1000 display was installed. Refer to the “Wiring Instructions” section of
the “HelmView Model HV1000 Installation Manual” for the associated wiring
diagrams for each of these options.
The following table is provided as a partial reference list of engines and their
appropriate wiring configuration.
