Throttle
The Throttle menu allows the operator to set up the items for throttling the engine such as throttle type, rate of RPM
increase/decrease, throttle Inc/Dec pulse time, throttle RPM deadband and other parameters pertaining to throttling
of the engine. Review Throttle under the Menu Glossary section of this manual for a full list and definition of each
setting.
Input / Output
The Input/Output Menu allows the user to establish the I/O needed for the application. This includes Digital Inputs,
Analog Inputs, Relay Outputs and Digital Outputs. This menu is tied to other aspects of the controller menu such
as Auto Start Functions, Auto Throttling Methods, Analog inputs for Mechanical Engine setup, Warning / Shutdown
functions and all outputs needed for starting/controlling the engine and alerting the user.
The Digital Inputs of this menu can be configured from the face of the controller to accept three types of inputs.
• High, B(+)
• Low, B(-)
• Open
The Analog Inputs of this menu can be configured from the face of the controller to accept one of four types of
senders without having to order a new controller or arrange jumpers on the hardware.
• Resistive
• 4-20mA
• 0-5VDC
• B(-) for additional Digital Inputs
The Outputs are configurable for the operator to choose which output function to use with the desired output
type as shown below.
• Relay [10A, Form C]
• Digital Out [200mA, 5VDC]
• Digital Out [2A, B(+)]
• Digital Out [1A, B(-)]
NOTE: Although the functionality exists to set all analog and digital inputs to the same
function, Enovation Controls strongly advises against this.

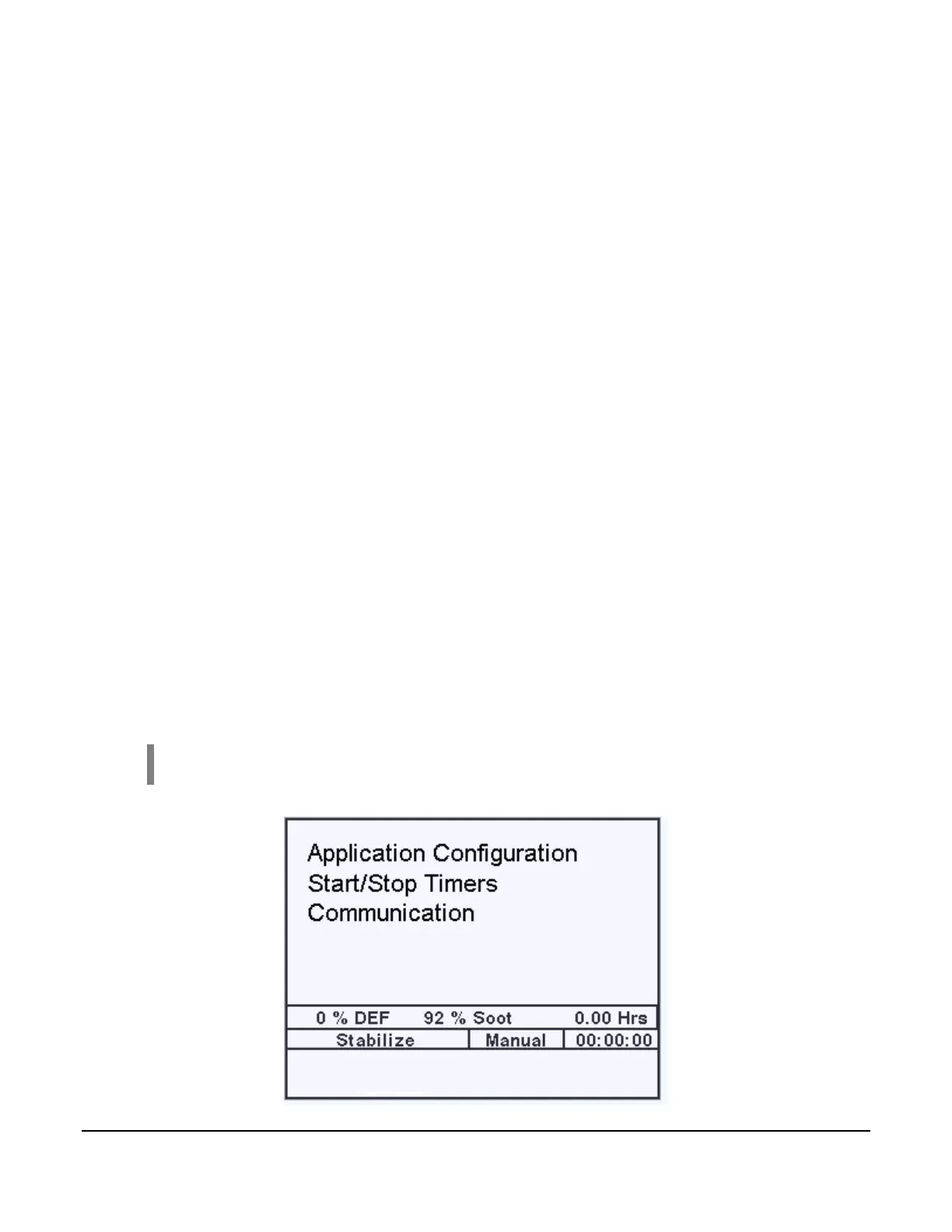

(Main Menu, page 2)
