MPC-20 Screens in Order

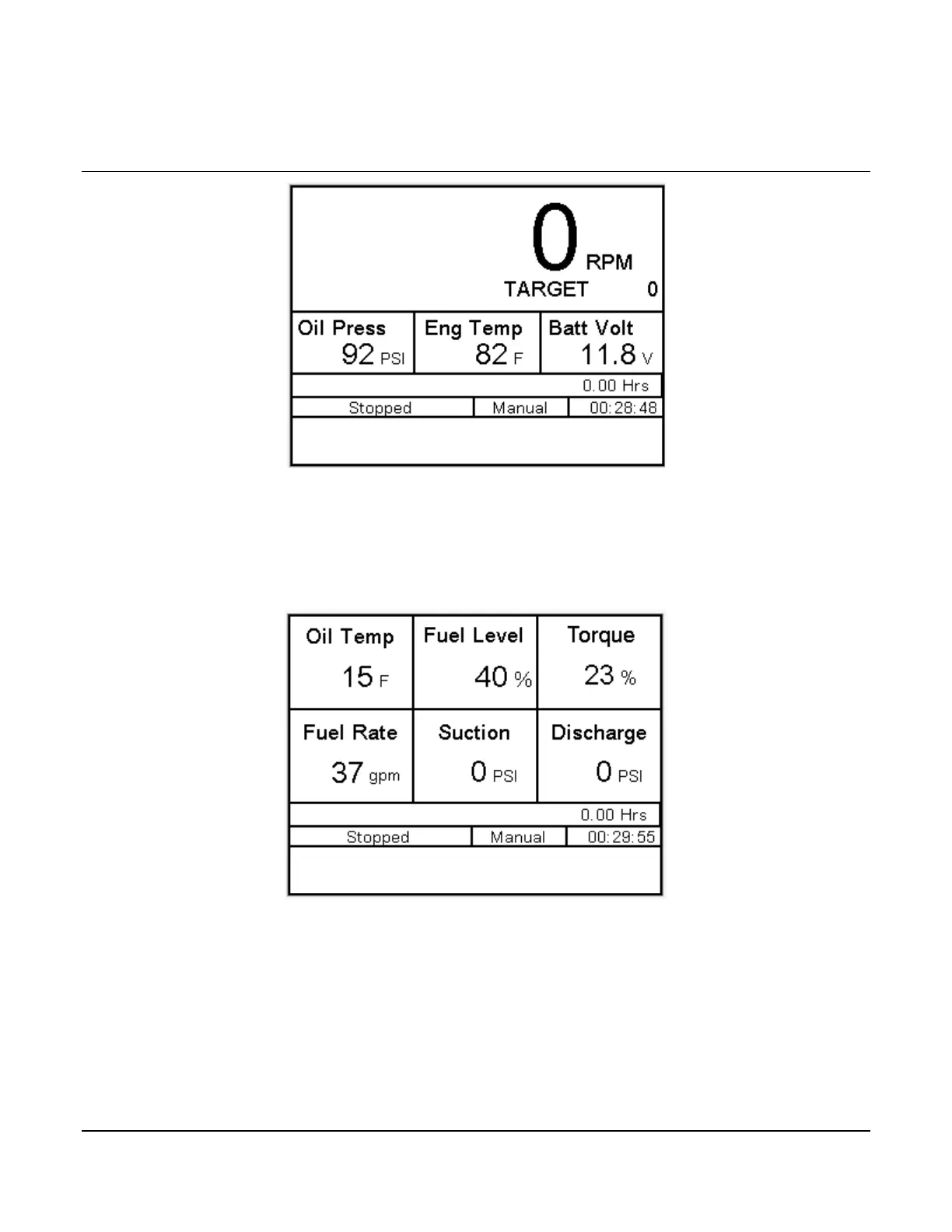

This is the main screen, and it displays actual and target RPM, Oil Pressure, Engine Temperature, Battery
Voltage, Engine Hours, Engine State and Mode of Operation.
This screen is the first six-up screen, and it displays Oil Temperature, Fuel Level, Torque, Fuel Rate, Suction and
Discharge to the operator. If alternate parameters are desired, these may be changed within the free MPC-20
Software Configuration tool.
