Section 40 00-02-0994
2016-06-28 - 24 -

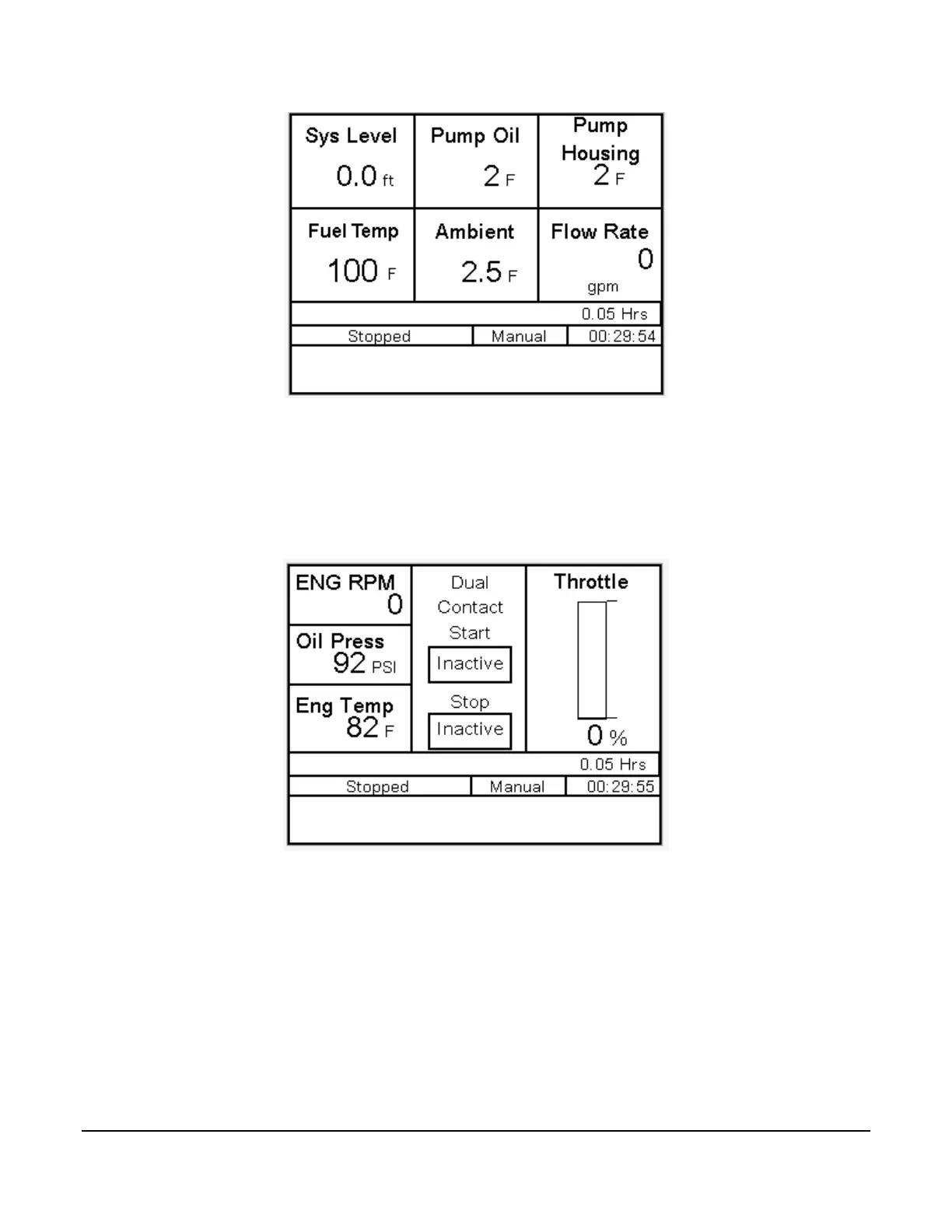

This screen is the second six-up screen, and it displays to the operator System Level, Pump Oil, Fuel
Temperature, Ambient (temperature) and Flow Rate (gpm). If alternate parameters are desired, these may be
changed within the free MPC-20 Software Configuration tool.
This screen displays the auto start/stop type and will also illustrate the throttling method for the auto start/stop.
This screen is set to display dual contact start (floats) and throttling to max RPM.
