Description
User manual 59719_hdb_en_12 14 / 65
3.2 Module structure

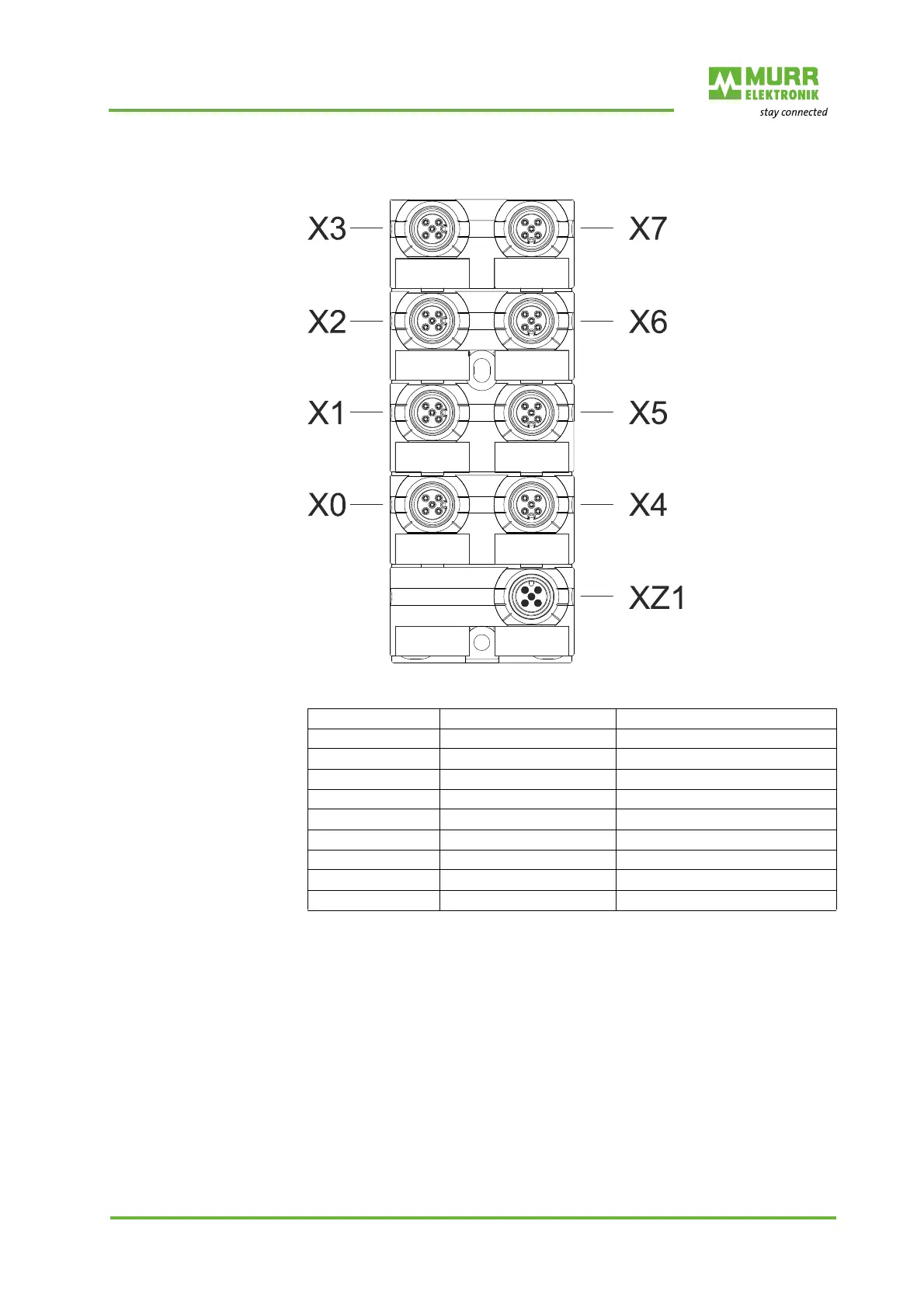

Fig. 3-1: Module structure and port designations
Art. No. Port designation Explanation
59719, 59819 X0 ... X7 Digital inputs and outputs US
XZ1 Module supply, IO-Link Class A
59718, 59818 X0 ... X3 Digital inputs and outputs UA
X4 ... X7 Digital inputs and outputs US
XZ1 Module supply, IO-Link Class B
59710, 59810 X0 ... X7 Digital inputs US
XZ1 Module supply, IO-Link Class A
