Mounting
User manual 59719_hdb_en_12 36 / 65
5.3 Mounting distance

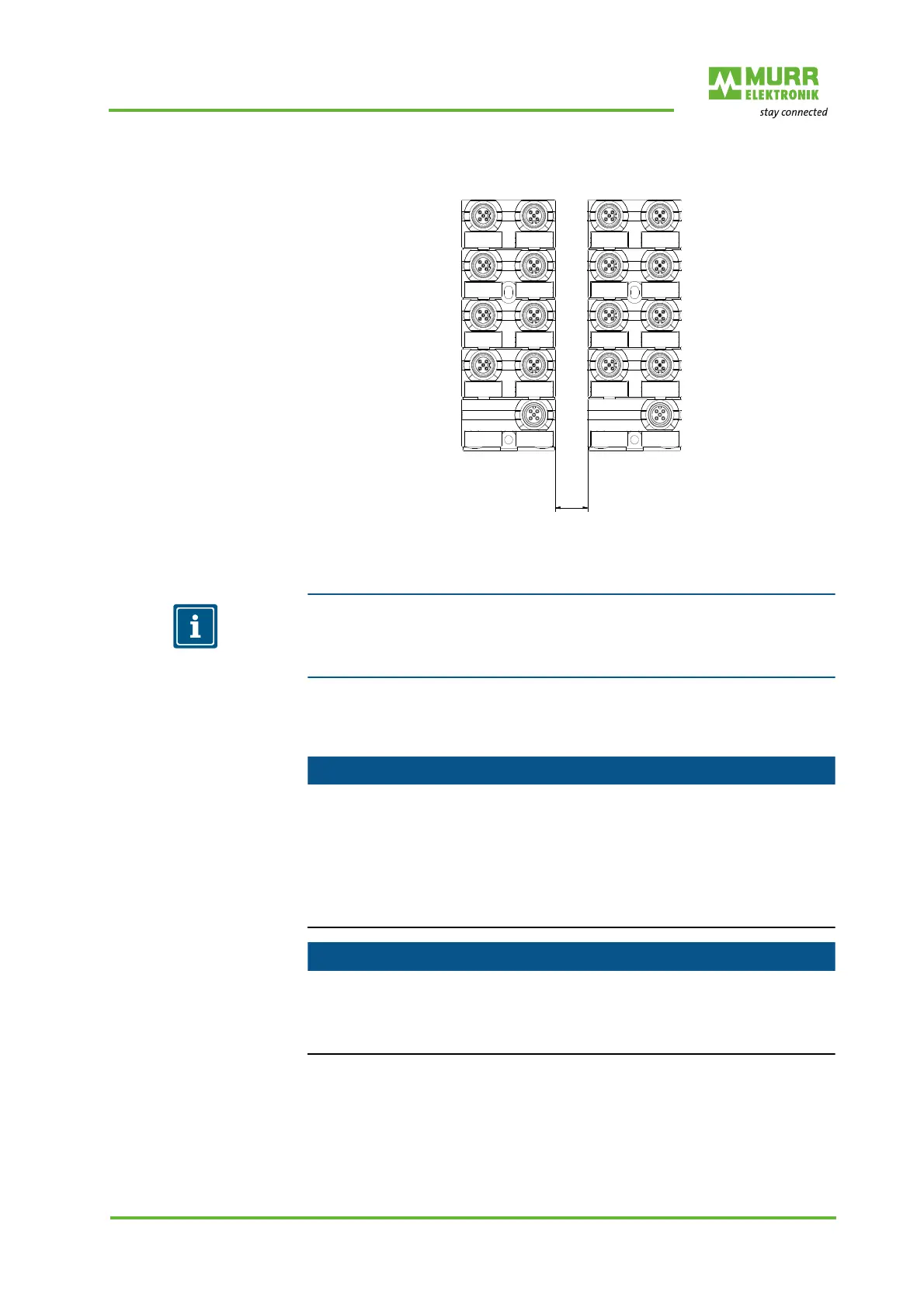

Fig. 5-2: Distance between modules
a | Male connector straight: 5 mm
male connector angled: 50 mm
NOTE
If angled male connectors are used, a minimum distance of 50 mm must
be adhered to.
5.4 Mounting the module
NOTICE
Material damage due to incorrect installation
The fastening screws and tightening torques depend on the surface of the in-
stallation site.
Use fastening screws that are suitable for the
mounting surface structure!
Carefully tighten the screws! The indicated tightening
torques have to be adhered to.
NOTICE
Material damage through improper use
Do not use the modules as climbing aids. Improper use can cause the mod-
ules to break off or to be damaged otherwise.
Install the modules in such a way that they cannot be used as climbing aid!
