Description
User manual 59719_hdb_en_12 16 / 65

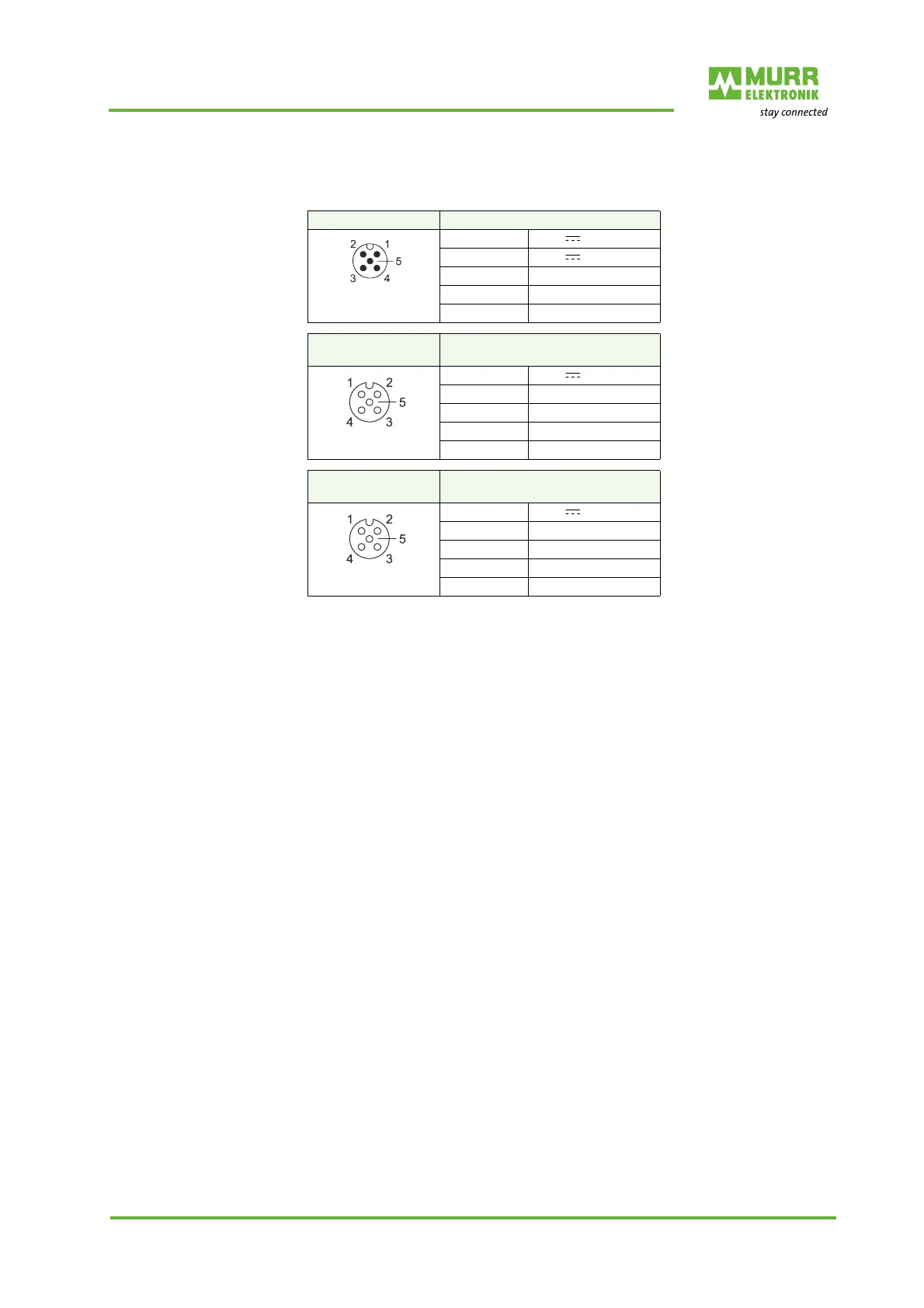

3.3.2 IO-Link Class B
Art.-No. 59718, 59818
IO-Link XZ1 (M12 male connectors)
Pin 1 24 V US (L+)
Pin 2 24 V UA (P24)
Pin 3 0 V US (L-)
Pin 4 C/Q IO-Link
Pin 5 0 V UA (N24)
DIO X0 ... X3 (M12 female connec-
tors)
Pin 1 24 V UA
Pin 2 DIO UA
Pin 3 0 V UA
Pin 4 DIO UA
Pin 5 FE
DIO X4 ... X7 (M12 female connec-
tors)
Pin 1 24 V US
Pin 2 DIO US
Pin 3 0 V US
Pin 4 DIO US
Pin 5 FE
