RJ-901C/RJ-900C Maintenance Manual 7 Adjustment
7-23
7.5 PF Encoder Assembly Position Adjustment
This section describes the procedure to adjust the PF encoder assembly.
After replacing the PF encoder, adjust the PF encoder position with a jig.
7.5.1 Jigs and Tools
The jigs and tools required for PF encoder assembly position adjustment are as follows.
• PF encoder adjusting jig
NOTE
"10.4 Jigs and Tools" p.10-7
7.5.2 Adjustment Procedure
To adjust PF encoder, follow the steps below.

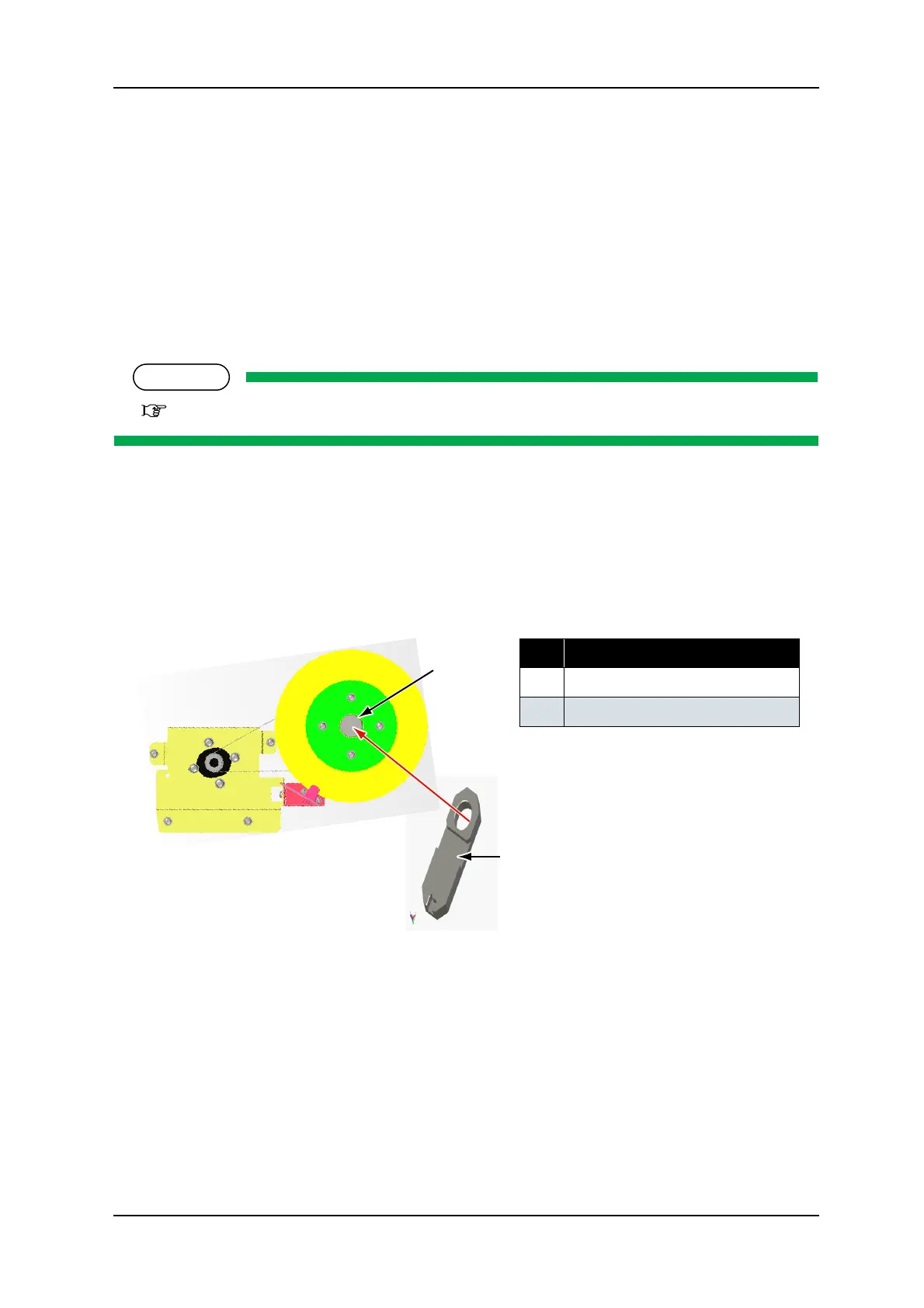

1. Align the hole on the PF encoder adjusting jig with the grid roller.
No. Part name
1 Grid roller
2
PF encoder adjusting jig


