4.2.1 Removing R Side Cover

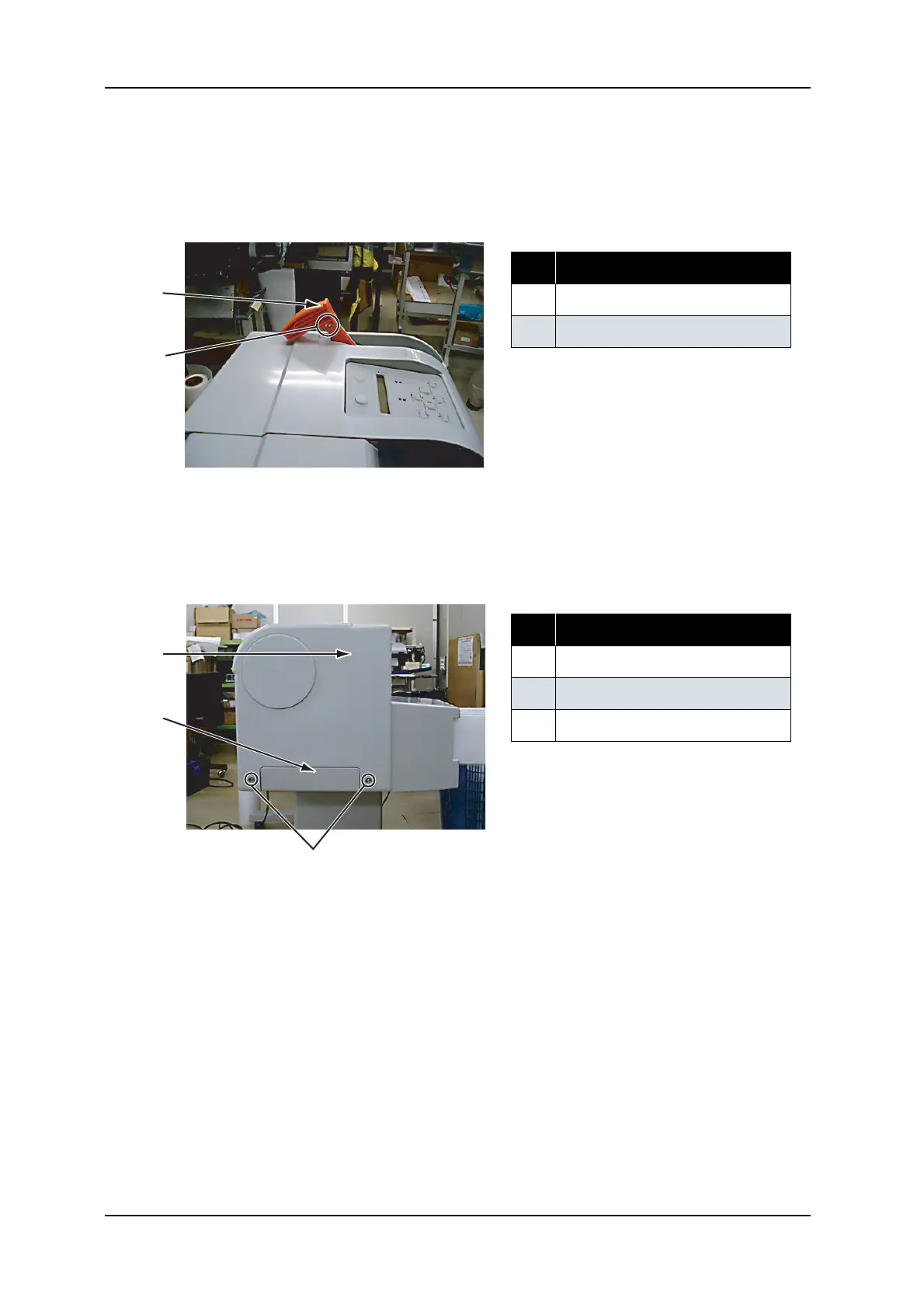

1. Move down the pressure lever backward.
2. Remove the pressure lever cap-retaining screw (M4
× 10, P tight binding black: 1pce).
3. Remove the waste fluid cassette.
4. Remove the R side cover outer screw (tapping screw M4 × 8, S tight cup: 2pcs).
5. Open the front cover.
No. Part name
1 Pressure lever cap
2 Pressure lever cap screw
No. Part name
1 R side cover
2 Waste fluid cassette
3 R side cover outer screw
1
2
1
2
3
