(2) Required Space

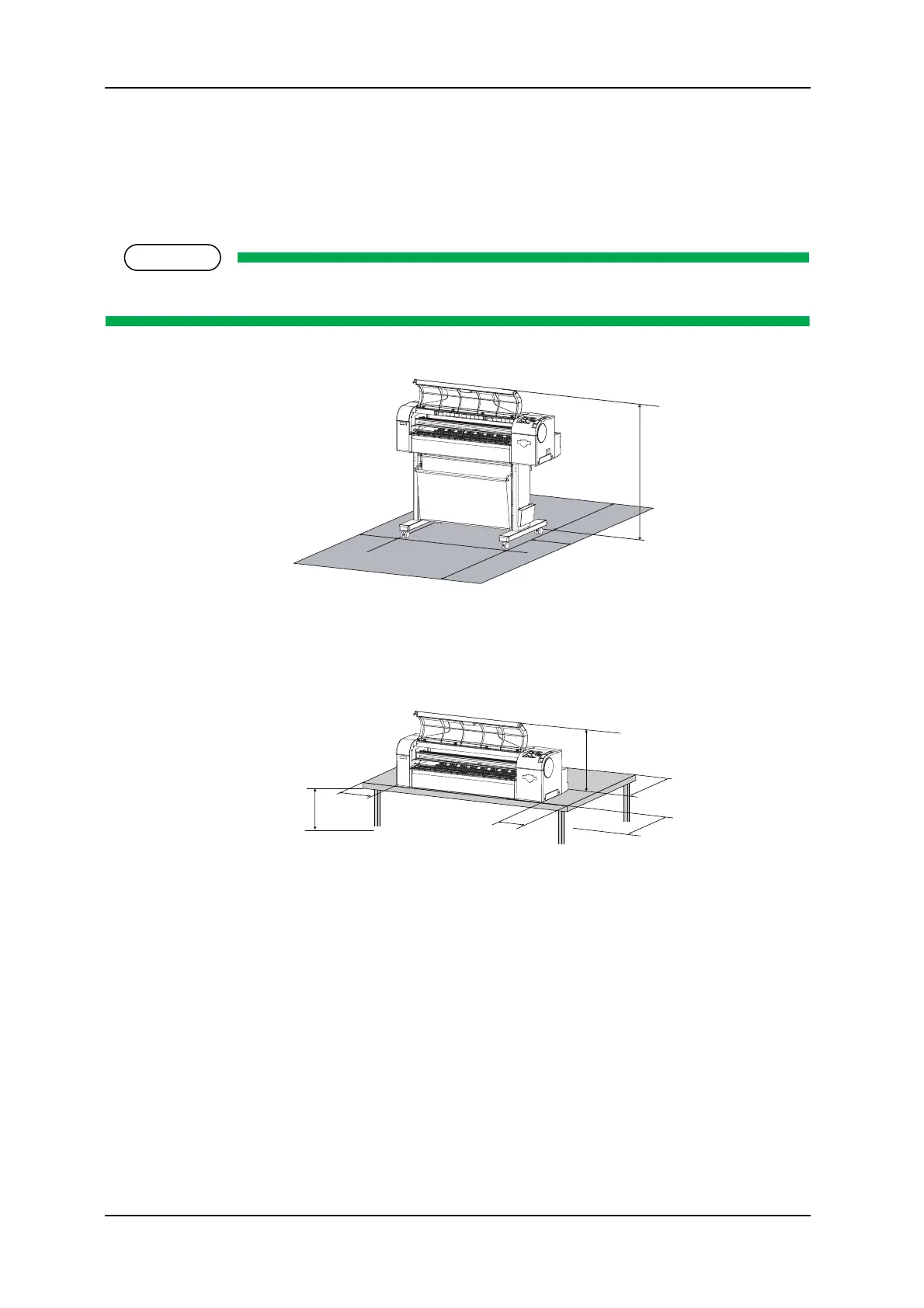

Install the plotter on a flat surface that fulfills the following conditions.
• The place to install plotter with the optional stand should have enough loading capacity.
NOTE
For the plotter and the optional stand, refer to"3.2 Product Specifications" p.3-2.
* Do not use RJ-900C without optional stand.
b
a
d
c
e
a=450mm (17.7 inch)
b=300mm (11.8 inch)
c=480mm (18.9 inch)
d=180mm (7.1 inch)
e=1198mm (47.2 inch)
a
d
c
b
f
e
a=300mm (11.8 inch)
b=500mm (19.7 inch)
c=300mm (11.8 inch)
d=100mm (3.9 inch)
e=567mm (22.3 inch)
f=600㨪800mm (23.6㨪31.5 inch)
