4 Parts Replacement RJ-901C/RJ-900C Maintenance Manual
4-50

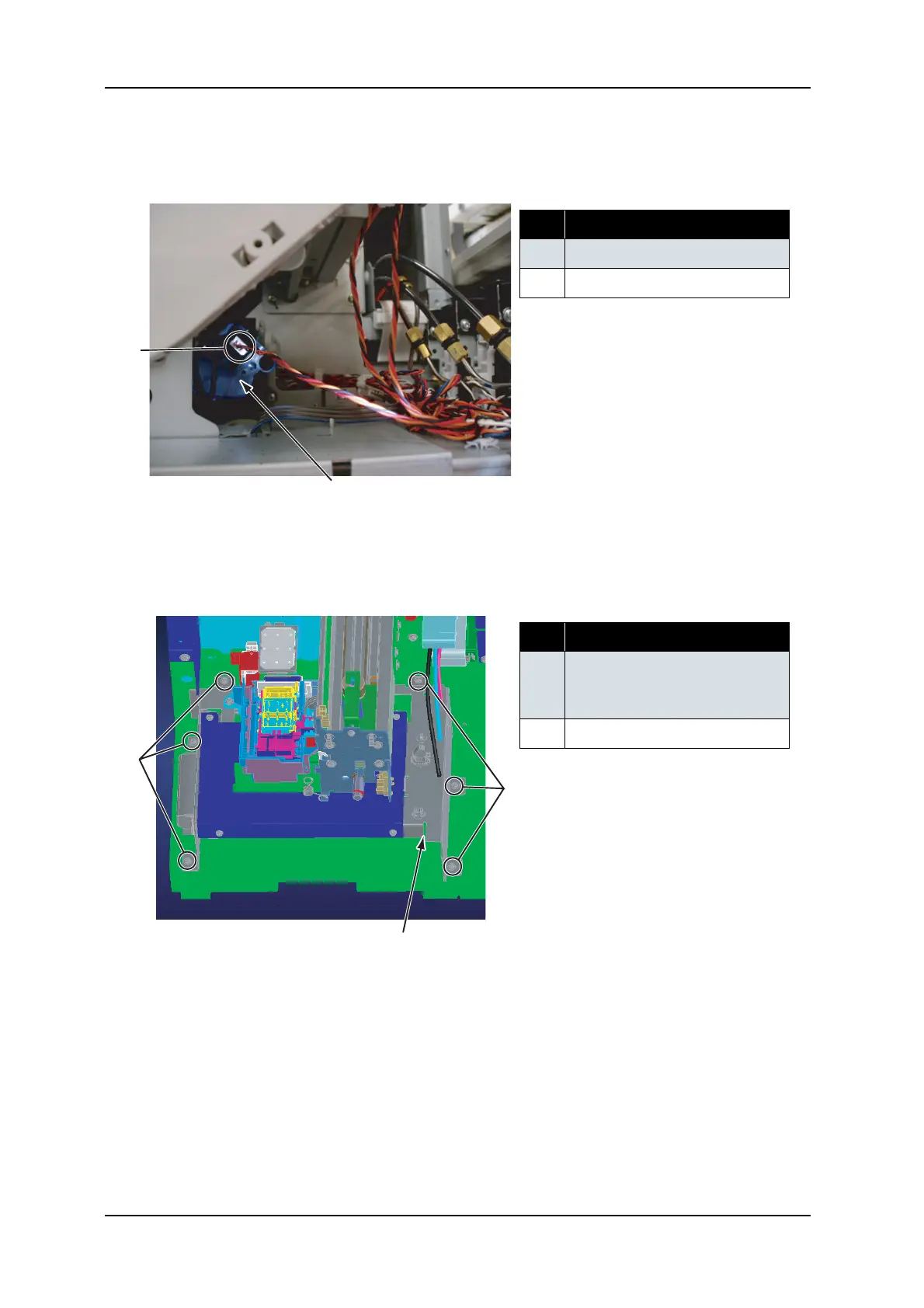

7. Remove the wiper phase sensor connector.
8. Remove the maintenance base 2-retaining screw (tapping screw M3 x 6, S tight cup: 6pcs).
No. Part name
1 Wiper phase sensor connector
2 Pump unit
No. Part name
1
Maintenance base 2-retaining
screw (tapping screw M3 x 6, S
tight cup)
2
Maintenance base 2
1
2
1
1
2
