Mutoh Ultima Multi-Purpose Cutting Plotter - Operation Instructions
18
AP-75125, Rev 1.3 ; 20/10/04
2.7. INSTALLING A TOOL
At the right-hand side of the cutter head, you will find a pivoting mounting bracket. Opening this bracket will
enable you to install a full range of cutting and drawing tools.

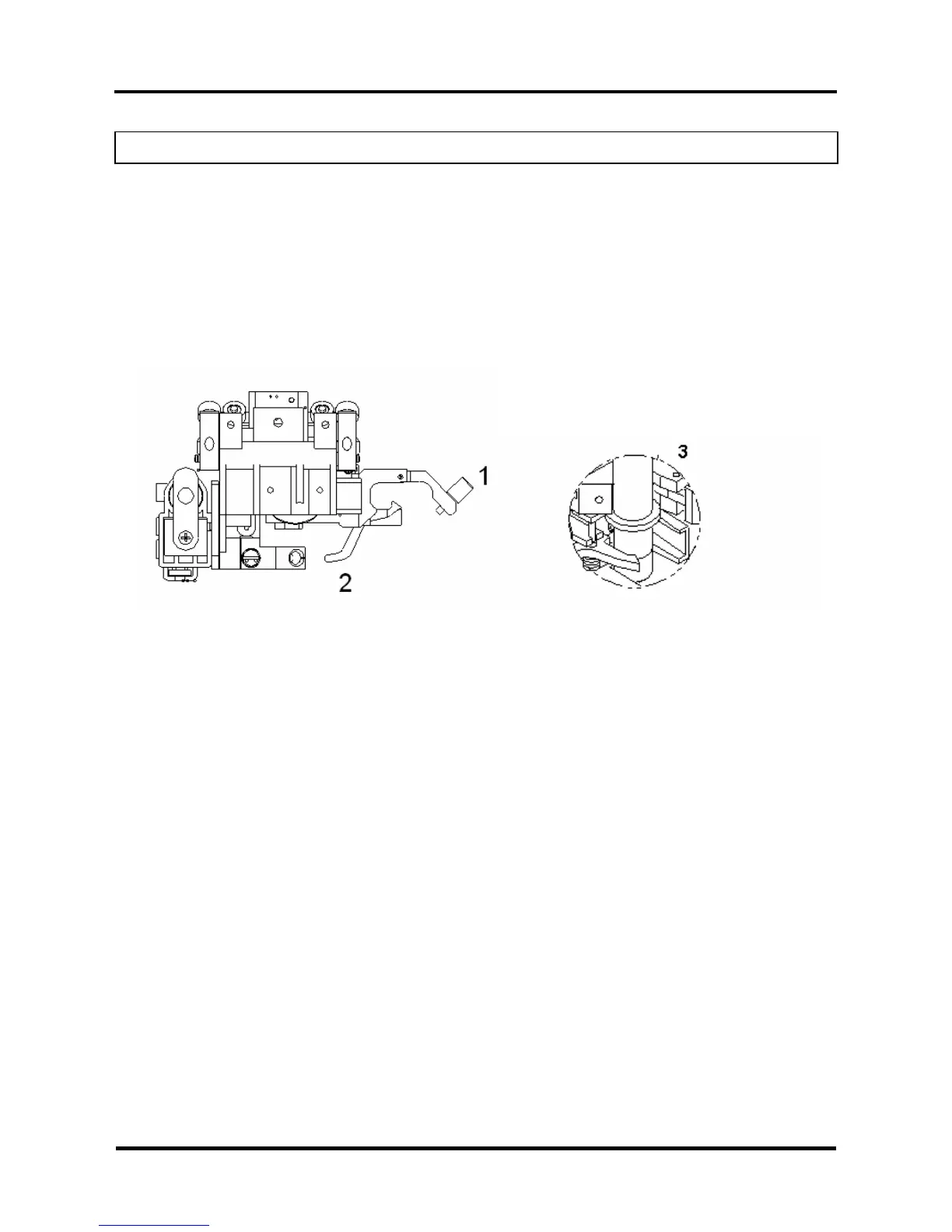

Step 1 : Open the screw (1) to unlock the tool head-mounting bracket.
Step 2 : Hold back the clip (2) of the tool head and slide the tool into position, making sure the tool collar
fits into the groove just beneath the locking screw (3).
Step 3 : Fasten the screw to secure the tool into position.
