10� Install lifting arms (g. 13).
Connect the lifting arm and the carriage by shafts.
Install the lifting arms onto the carriages and ensure the arm lock could work.
11� Fill with hydraulic oil (32# anti-abrasion hydraulic oil for winter, 46# for summer).
The volume of oil tank is 10 l. To insure the lift works normally, the amount of oil in it should at least reach 80% of the
tank’s total volume.
12� Trial running.
1. Do refer to the operation instructions in advance and keep in mind that no vehicle left on the lift in the process of trial
running.
2. Check if mechanical locks can be well engaged or released in the running process.
3. Check and ensure all the connections are in good condition.
4. No vehicle on the lift during trial running.
Step10: Install lifting arms.
Connect the lifting arm and the carriage by shafts.
Install the lifting arms onto the carriages and ensure the arm lock could work.
Step11: Fill with hydraulic oil.
The volume of oil tank is 10L.To insure the lift work normally, the amount of oil in it should at least reach 80% of the tank’s total
volume.
32#anti-abrasion hydraulic oil for winter, 46# for summer.
Step12: Trial running.
1. Do refer to the operation instructions in advance and keep in mind that no vehicle left on the lift in the process of trial running.
2.Check if mechanical locks can be well engaged or released in the running process. Adjust by screwing the hex head screw as
showed in the following drawing in case the locks do not work well. (Screw clockwise in case the lock can not release and screw
counterclockwise in case the lock can’t be engaged.)
3. Check and ensure all the connections are in good condition.
4. No vehicle on the lift during trial running.
Step10: Install lifting arms.
Connect the lifting arm and the carriage by shafts.
Install the lifting arms onto the carriages and ensure the arm lock could work.
Step11: Fill with hydraulic oil.
The volume of oil tank is 10L.To insure the lift work normally, the amount of oil in it should at least reach 80% of the tank’s total
volume.
32#anti-abrasion hydraulic oil for winter, 46# for summer.
Step12: Trial running.
1. Do refer to the operation instructions in advance and keep in mind that no vehicle left on the lift in the process of trial running.
2.Check if mechanical locks can be well engaged or released in the running process. Adjust by screwing the hex head screw as
showed in the following drawing in case the locks do not work well. (Screw clockwise in case the lock can not release and screw
counterclockwise in case the lock can’t be engaged.)
3. Check and ensure all the connections are in good condition.
4. No vehicle on the lift during trial running.

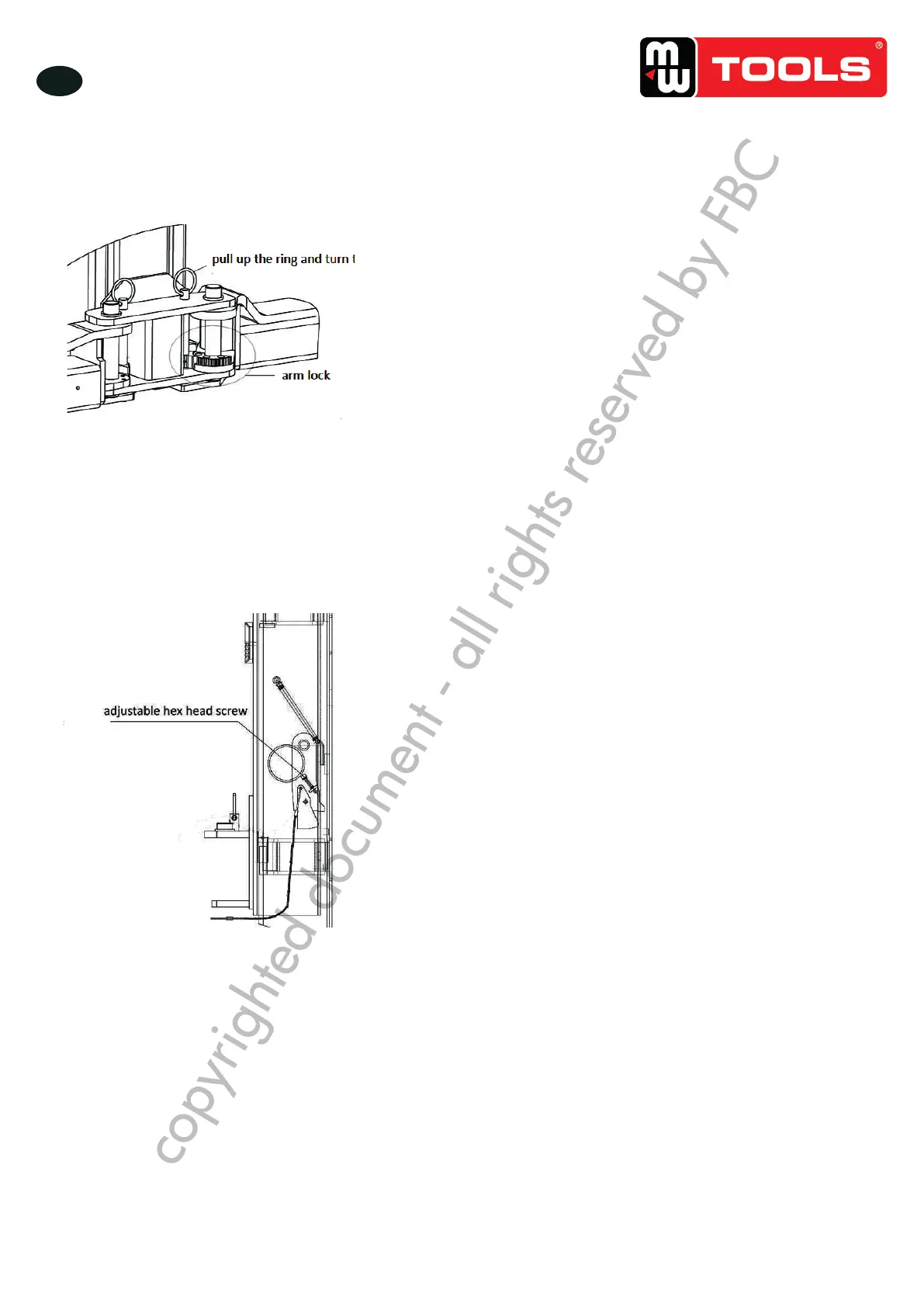

Fig� 13
