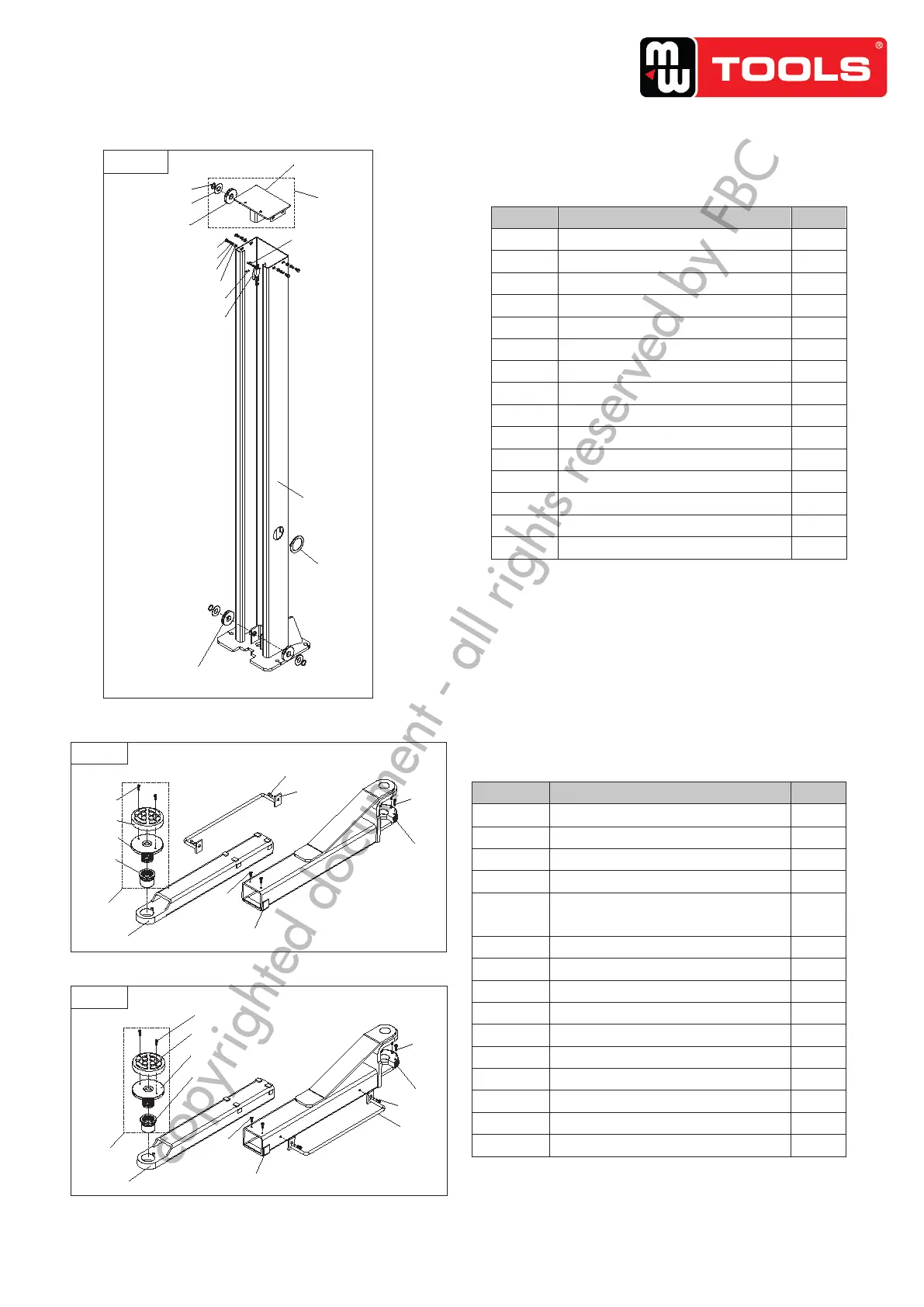

MW TOOLS HB240 - Page 47

47
M1.2.HB240-HB240M.NLFREN 21112017
USER’S GUIDE V1.0 201511
- 19 -
2D-100
2D-101
2D-104
2D-102
2D-104
2D-114
2D-110
2D-105
2D-106
2D-107
2D-108
2D-115
2D-113
2D-112
2D-109
2D-116
2D-202
2D-203
2D-211
2D-206
2D-208
2D-204
2D-205
2D-207
2D-201
2D-212
2D-200
2D-210
2D-209
2D-900
2D-202
2D-203
2D-211
2D-901
2D-209
2D-902
2D-204
2D-205
2D-207
2D-201
2D-210
2D-212
S/NN
Name
Qty
2D-101
Shaft snap ring Ø25
6 pc
2D-102
Large flat washer Ø25
6 pc
2D-104
Pulley Ø108*25mm
4 pc
2D-105
Hex screw M12*25
8 pc
2D-106
Spring washer Ø 12
8 pc
2D-107
Flat washer Ø 12
8 pc
2D-108
Hex nut M12
8 pc
2D-109
Cross round head cap screw M4*25
2 pc
2D-110
Top limit switch ME8104
1 pc
2D-112 Column cover 4 pc
2D-113
Column
16 pc
2D-114
Cross round head cap screw M4*25
8 pc
2D-115
Top plate
2 pc
2D-116
Complete top plate assembly
S/NN
Name
Qty
2D-201 Cross countersunk head screw M8*16 8 pc
2D-202
Rubber lifting pad 120*30mm
4 pc
2D-203
Lifting tray
4 pc
2D-204
Swivel nut
4 pc
2D-205 C
omplete tray assembly
(2C-201,202,203,204)
4 set
2D-206 Lifting arm1 1 pc
2D-207
Cross socket head cap screw M8*12
8 pc
2D-208
Lifting arm2
2 pc
2D-209
Fender
4 pc
2D-210
Hex socket head cap screw M8
8 pc
2D-211
Semi-circle block
4 pc
2D-212
Hex socket head cap screw M8*12
12 pc
2D-901
Lifting arm3
2 pc
2D-902
Lifting arm4
1 pc
