MW TOOLS HB240 - Page 48

48
M1.2.HB240-HB240M.NLFREN 21112017
USER’S GUIDE V1.0 201511
- 20 -

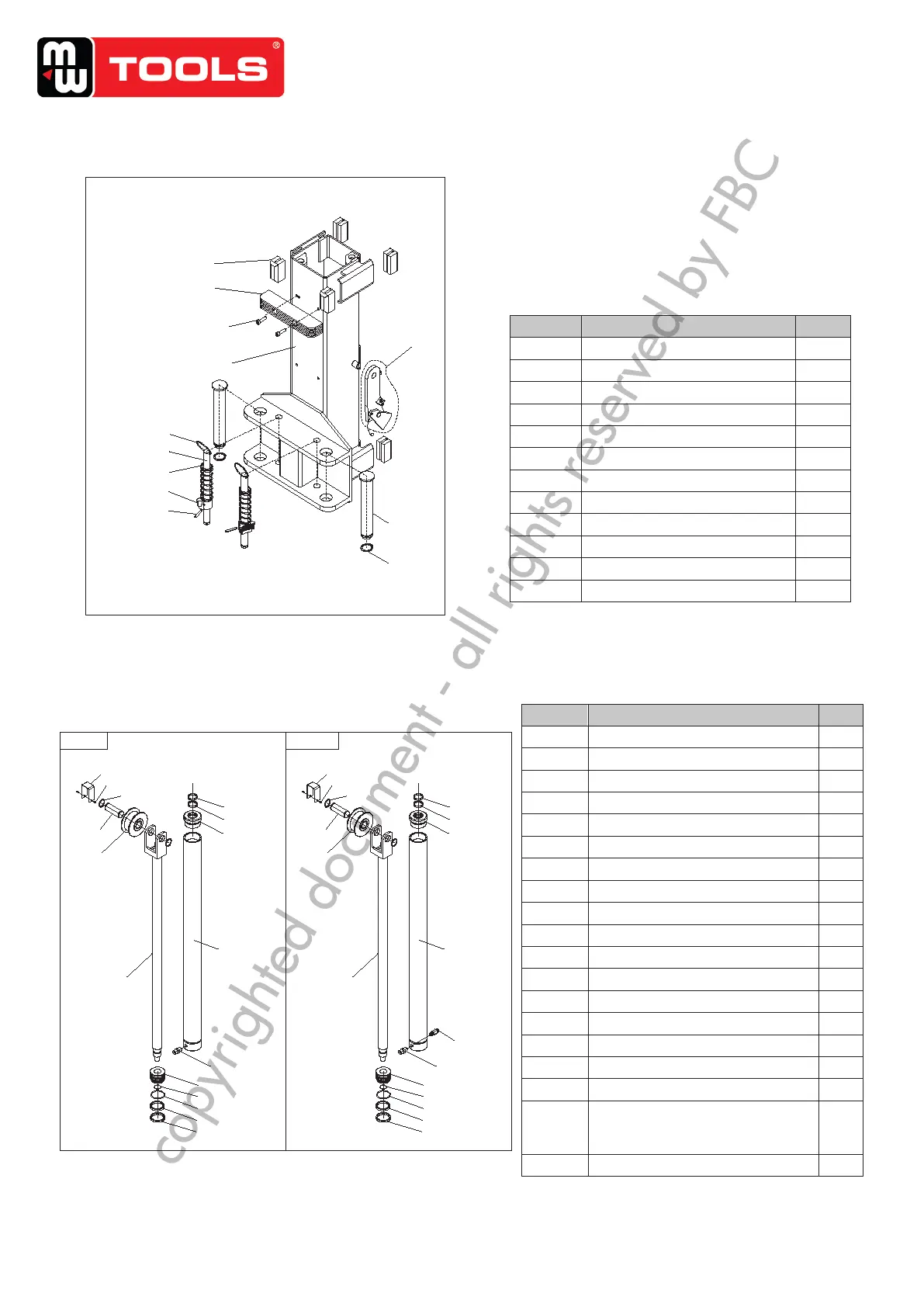

2D-400
2D-401
2D-402
2D-403
2D-414
2D-405
2D-406
2D-407
2D-408
2D-409
2D-410
2D-412
2D-411
2D-417
2D-416
2D-101
2D-415
2D-1100
2D-401
2D-402
2D-403
2D-414
2D-1102
2D-405
2D-406
2D-407
2D-408
2D-409
2D-410
2D-1101
2D-411
2D-417
2D-416
2D-101
2D-415
2D-301
2D-302
2D-307
2D-308
2D-309
2D-303
2D-304
2D-310
2D-305
2D-306
2D-311
2D-312
S/NN
Name
Qty
2D-301
Slider
16 pc
2D-302
Protection rubber pad
2 pc
2D-303
Cross flat head cap screw M8
4 pc
2D-304 Carriage 2 pc
2D-305
Key ring Ø 4*60
4 pc
2D-306
Locking shaft Ø 22
4 pc
2D-307
Spring
4 pc
2D-308
Teeth block
4 pc
2D-309
Elastic cylindrical pin
4 pc
2D-310 Shaft snap ring Ø 40 4 pc
2D-311
Pin shaft
4 pc
2D-312 Insurance device 1 set
S/NN Name Qty
2D-401
Y-ring 48*6mm
2 pc
2D-402 Guided ring 44*10mm 2 pc
2D-403
Oil cylinder cover
2pc
2D-405
Oil hose connector
1pc
2D-1102 Oil hose connector 2pc
2D-406
Piston
2pc
2D-407
O-ring 25*4mm
2pc
2D-408 O-ring 64*5.5mm 2pc
2D-409
Guided ring 63*9.2mm
2pc
2D-410 Y-ring 63*10mm 2pc
2D-411
Piston rod
2pc
2D-412
Slave oil cylinder
1pc
2D-414
Chain wheel
2pc
2D-415
Shaft
2pc
2D-101
Shaft snap ring Ø30
4pc
2D-416
Hex socket head cap screw M8*16
4pc
2D-417 Retaining plate 2pc
2D-418 C
omplete seal rings(including
401,402,407,408,409 and 410)
2set
2D-1101
Master oil cylinder
1pc
copyrighted document - all rights reserved by FBC
