2202L5JE-DA-C5-N_2015.05.
5 Maintenance and Inspection
Compound 2-stage Screw Compressor 5.5 Reassembly
1612LSC Speed Increaser Type
5-59
e)
After installing the jig, turn the speed increaser gear casing upside down to be able to install the
speed increaser gear spindle, and place the casing on the work stand used at disassembling.
f) Insert the speed increaser gear spindle into the spindle thrust bearing by lightly tapping the end of
the spindle with a soft hammer or the like.

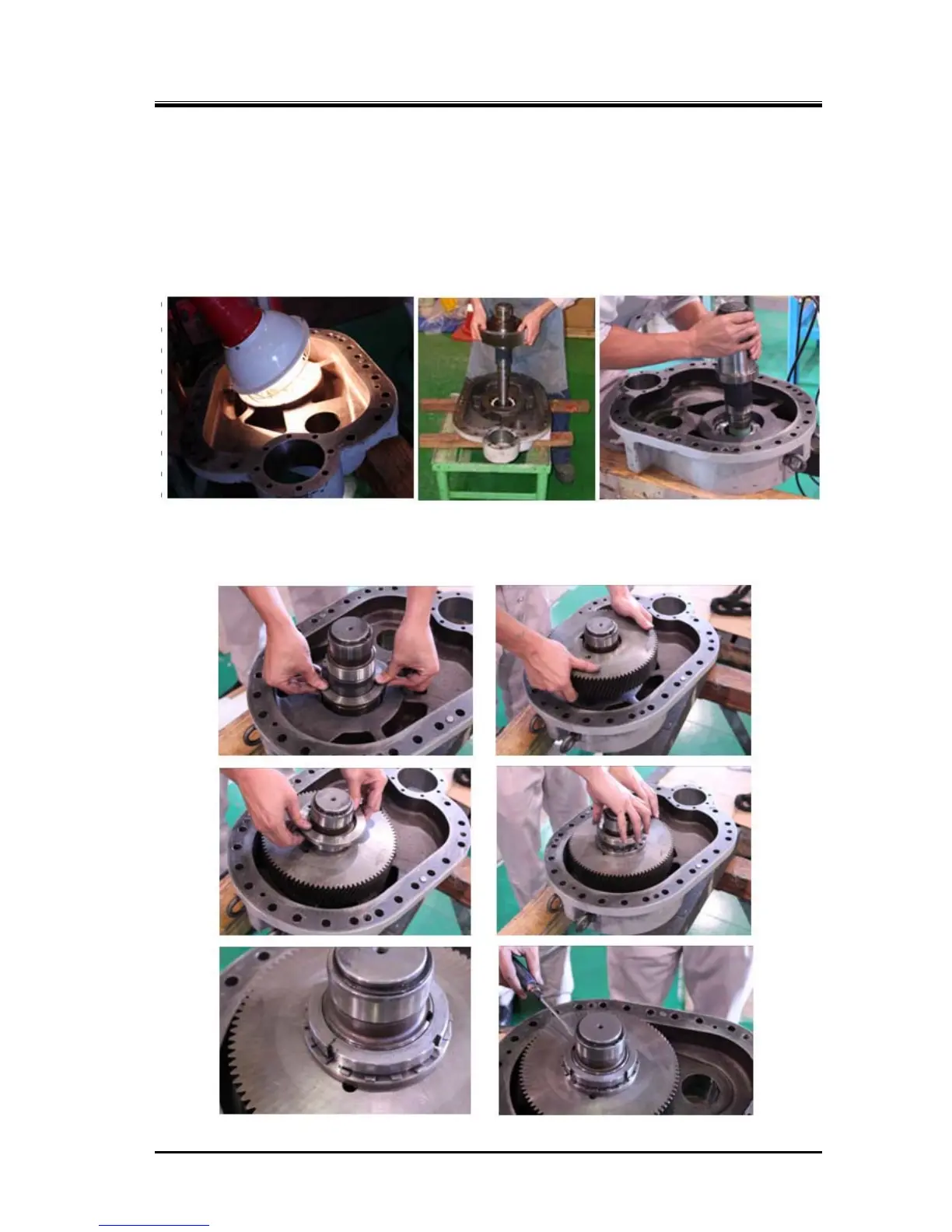

Alternatively, preheat the speed increaser gear casing using a light projector (following picture to the
left) before insertion of the spindle. Then the spindle can be inserted smoothly without using a soft
hammer (following picture to the center/right).
Attaching the Spindle
Insert Spindle Insert Spindle
with Drive Gear without Drive Gear
Note: In case of installing the speed increaser drive gear in this step, refer to following pictures.
To Next Page
