EV-040 Rev. 10 – 2014
18
Installing the chain counter
(see connection diagram)
Warning
ALWAYS DISCONNECT THE BATTERY PRIOR TO INSTALLATION.
• The chain counter must be positioned so that the display will be easy to read. It should not be
exposed to direct sunlight.

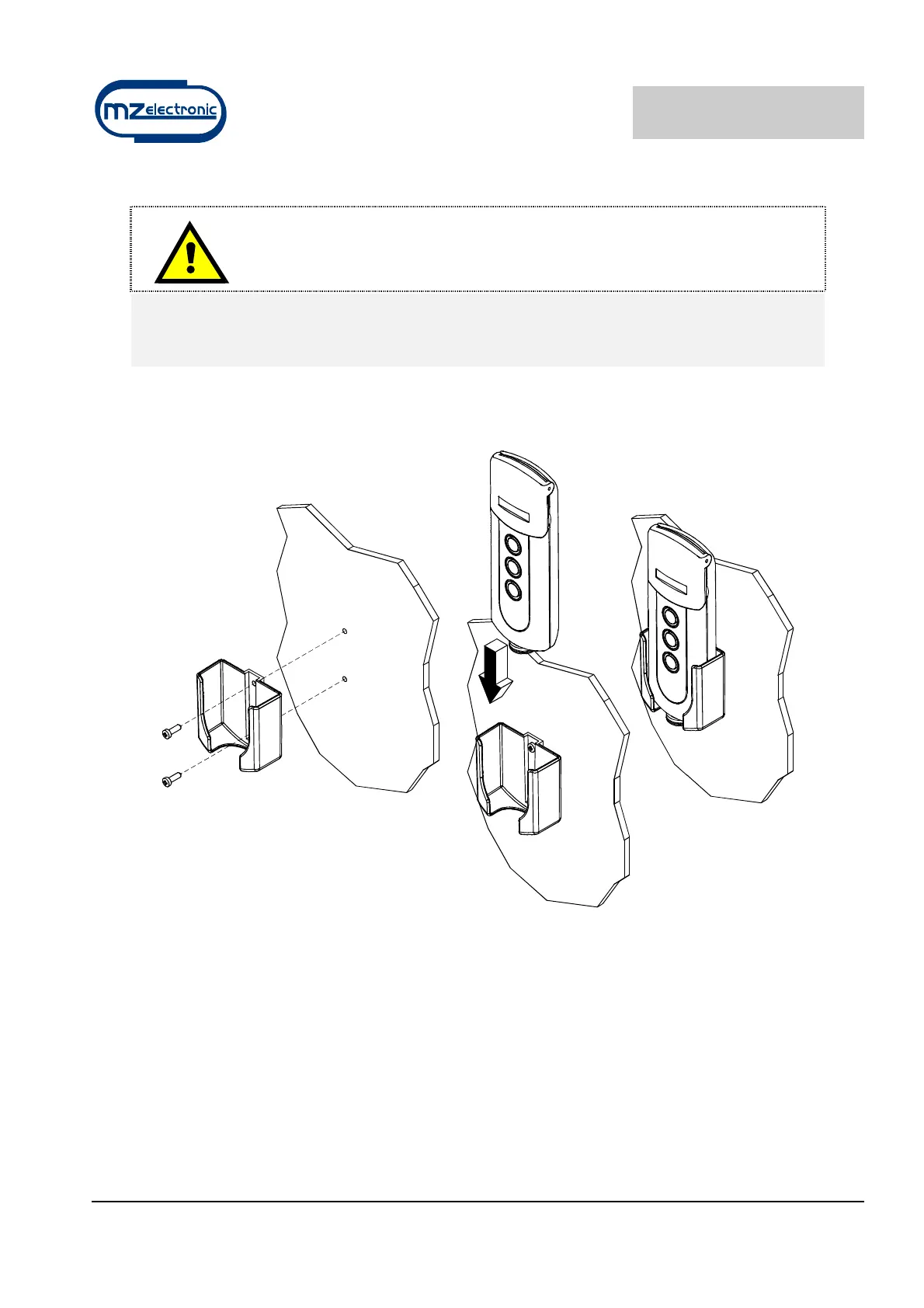

• Secure the instrument in place with the bracket provided, tightening the two screws using a
cross screwdriver.
• For instructions on making electrical connections, see the attached diagram. The wires must
have a minimum cross section size of 1.5 mm².
• Install a 3 A (ampere) fast safety fuse on the + wire of the battery. Do not use the voltage
generated by the engine battery set to provide power.
• The instrument complies with EMC standards (EN55022) and must be positioned at a distance
of:
− 30 cm (~1 Ft) from the compass;
− 50 cm (~1.5 Ft) from radio equipment;
− 2 metres (~6.5 Ft) from radio transmitter equipment;
− 2 metres (~6.5 Ft) from the radar beam.
