EV-040 Rev. 10 – 2014
English
19

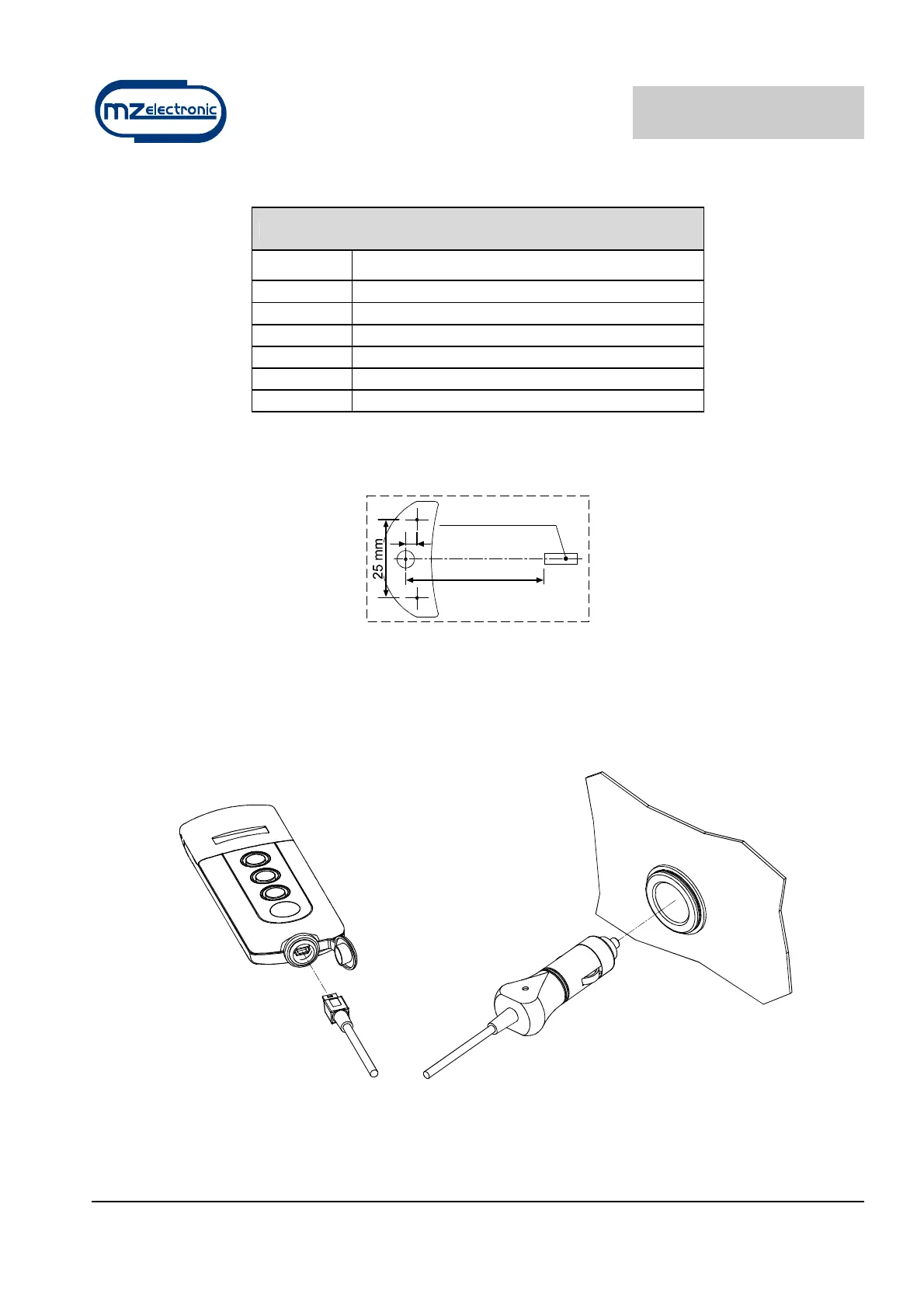

Connections
6-POLE CONNECTOR
PIN SIGNAL
1 + battery
2 - battery
3 DOWN command
4 UP command
5 Magnetic sensor
6
Sensor hole
min.44 mm(1”3/4)
4
magnetic sensor
sensore magnetico
Recharging the transmitter
Open the cap on the rear of the transmitter, insert the plug of the battery charger making sure
that the reference mark is facing upward. Plug the battery charger into a cigarette lighter to start
charging.
When the charger is switched on the blue LED will light up.
