PPA55xx Quick User Guide
Page 101

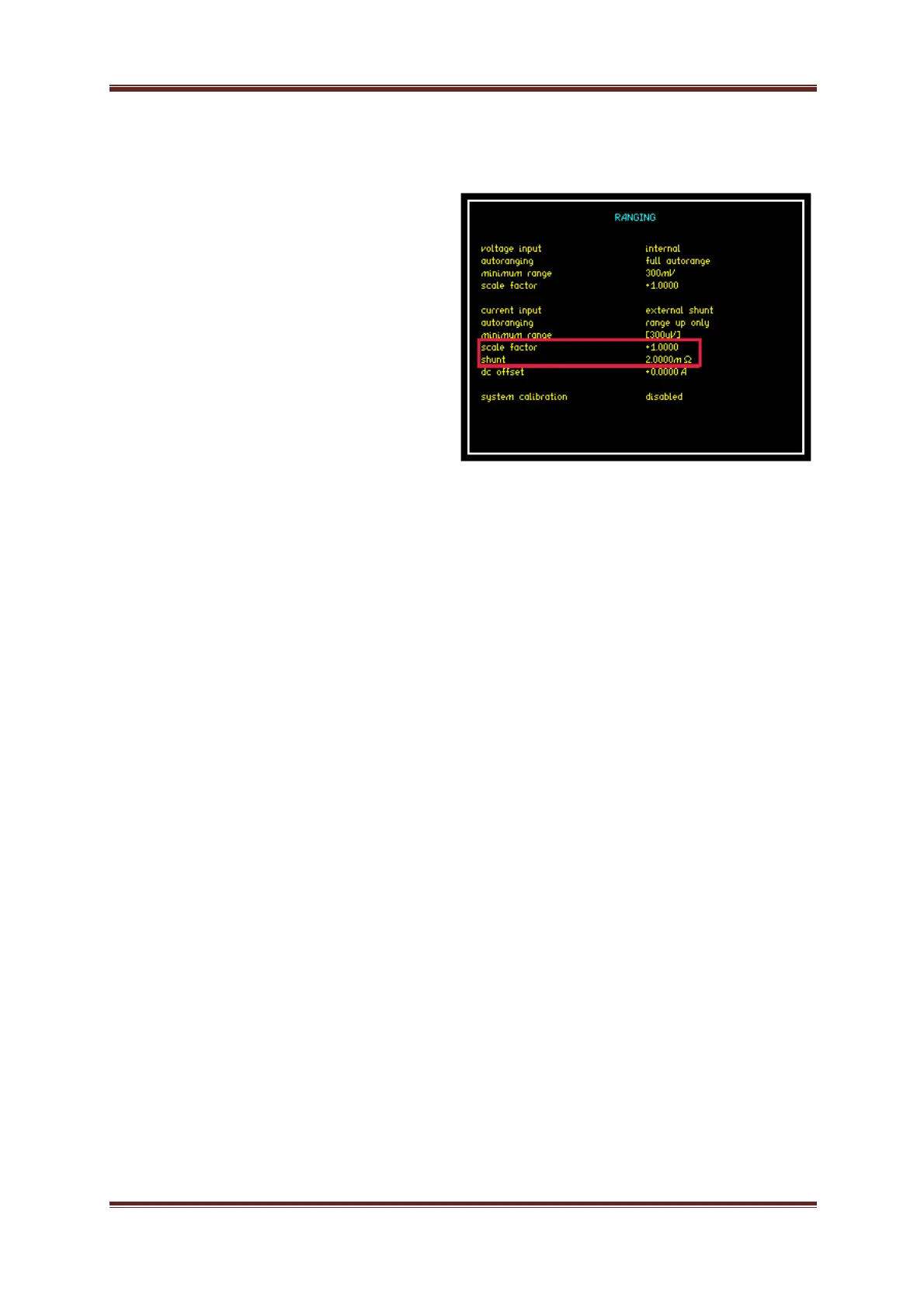

Set the range value of the PPA55xx to the
selected channel the Rogowski Coil is
connected to,
Input the correct shunt value
corresponding to the switch value on
the Rogowski Transducer
The shunt value is set to 2mΩ to
reflect the switch position being set to
1KA (2mV per A) and a scale factor of
1:1
We set 2mΩ as a 2mΩ shunt would also produce the same 2mV/A
Connection should be made as per the following diagrams
