PPA55xx Quick User Guide
Page 36

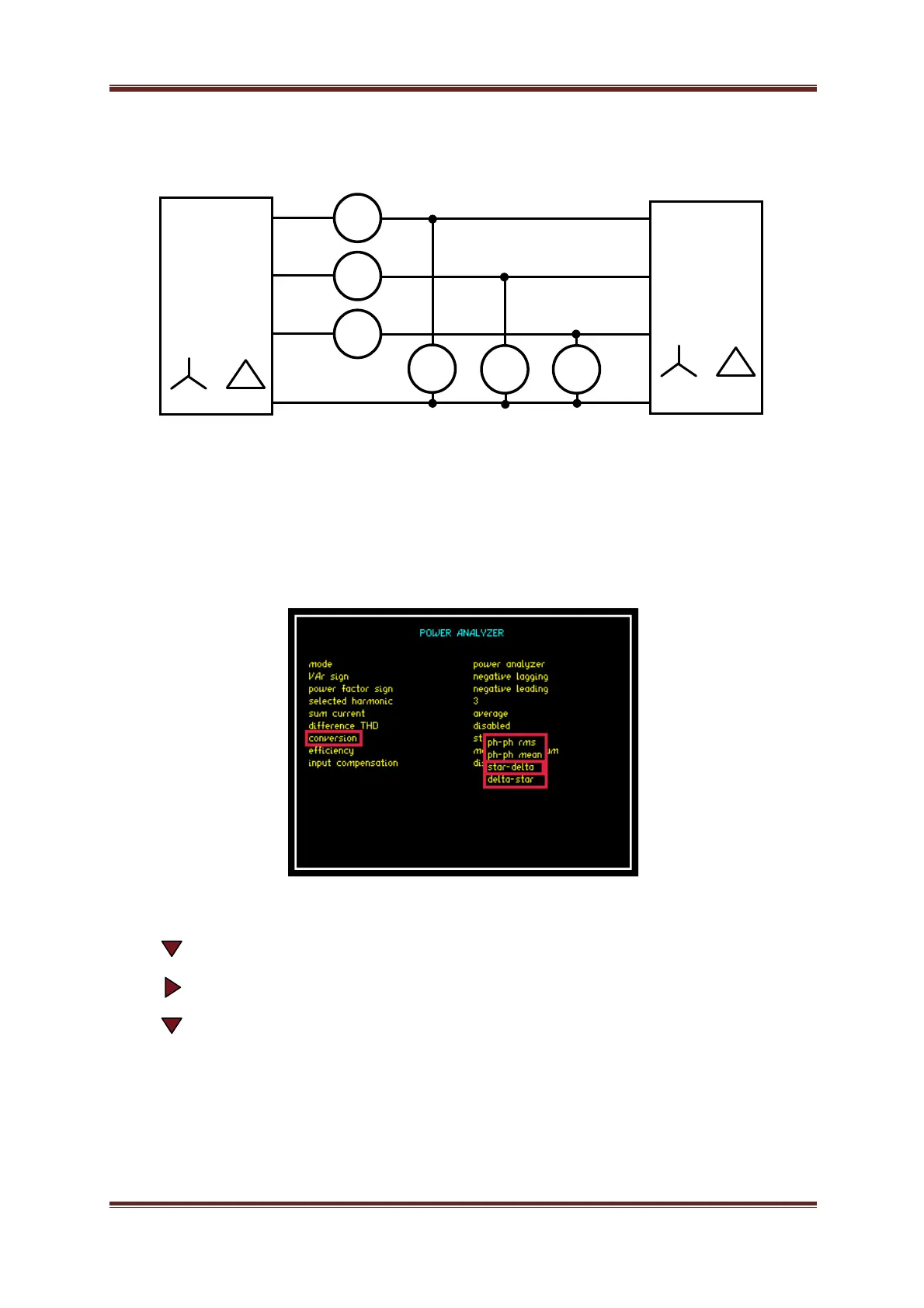

Three Phase Three Wattmeter Star Connections
To configure PPA55xx to calculate the correct phase power when the Load
topology is in a Star Configuration;
Access “Power Analyzer” mode either through the “Mode” or the “POWER” button
as per the screenshot below
Press 7 times until red box surrounds “conversion”
Press to open up dropdown menu selections
Press until red box surrounds “star-delta
Press “ENTER” to confirm selection
