PPA55xx Quick User Guide

Page 37

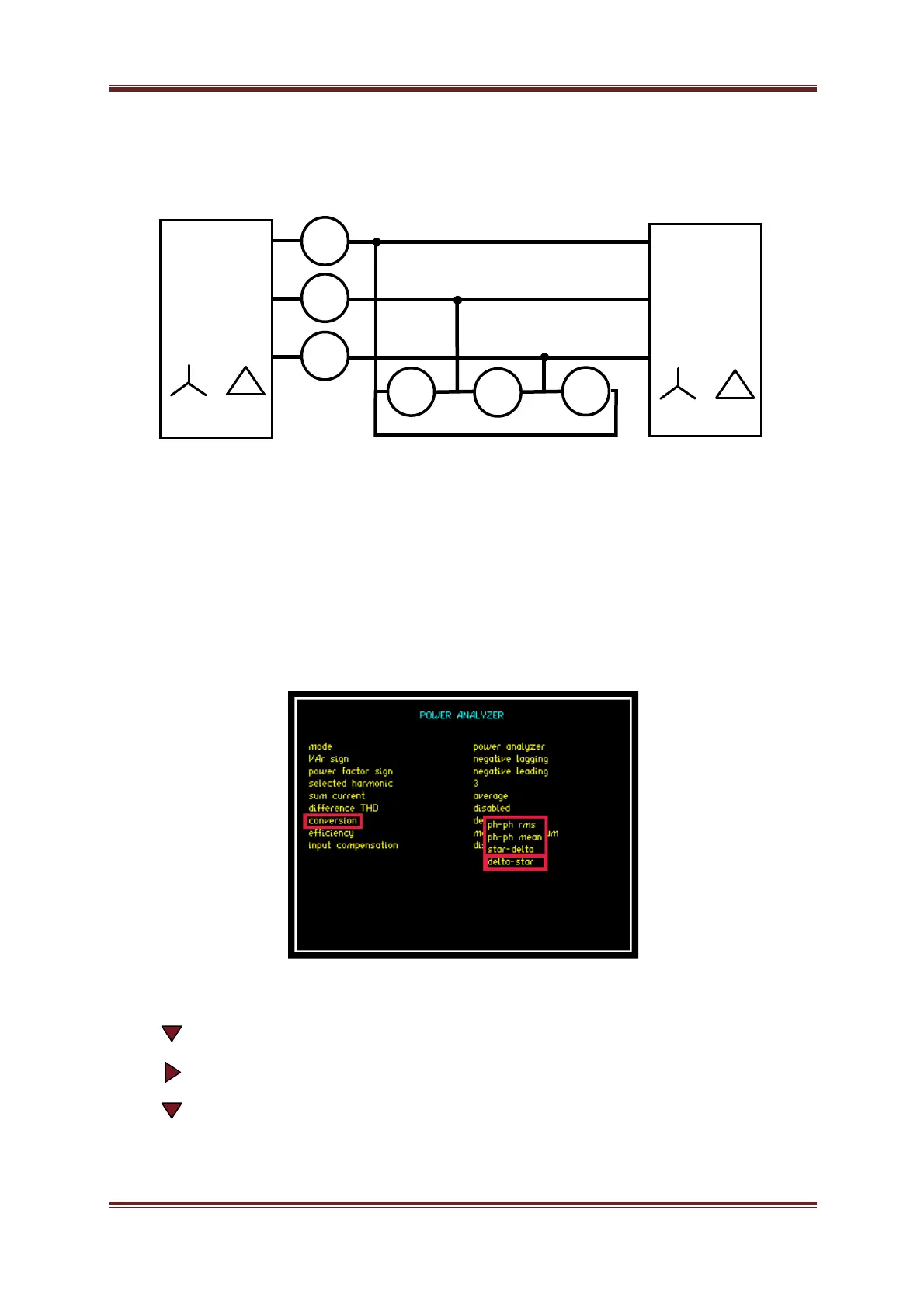

Three Phase Three Wattmeter– Delta Connections

To configure PPA55xx to calculate the correct phase power when the Load

topology is in a Delta Configuration;

Access “Power Analyzer” mode either through the “Mode” or the “POWER” button

as per the screenshot below

Press 7 times until red box surrounds “conversion”

Press to open up dropdown menu selections

Press until red box surrounds “delta – star”

Press “ENTER” to confirm selection

Three

Phase

Source

ACH1

ACH2

ACH3

Three

Phase

Load

VCH1

VCH2

VCH3

Ph1

Ph2

Ph3

Ph2
