PPA55xx Quick User Guide
Page 4
1.2 Fitment of the PPA series Carry/Tilt handle
PPA5/15/45/55 series power analyzers are supplied with a Carry/Tilt Handle that
is located within the accessory pack..............................................................
The handle allows a user to position the instrument upwards at one of two angles
for easier viewing when the instrument is positioned below the line of sight. The
design also allows storage under the unit without obstruction of the rubber feet
so that instruments can be stacked and is easily removed to allow the connection
of rack mounting brackets without the need to remove instrument covers.
Correct installation of the handle is important to ensure the correct operation
and long life the handle.
The following pictures illustrate correct and incorrect handle fitment:

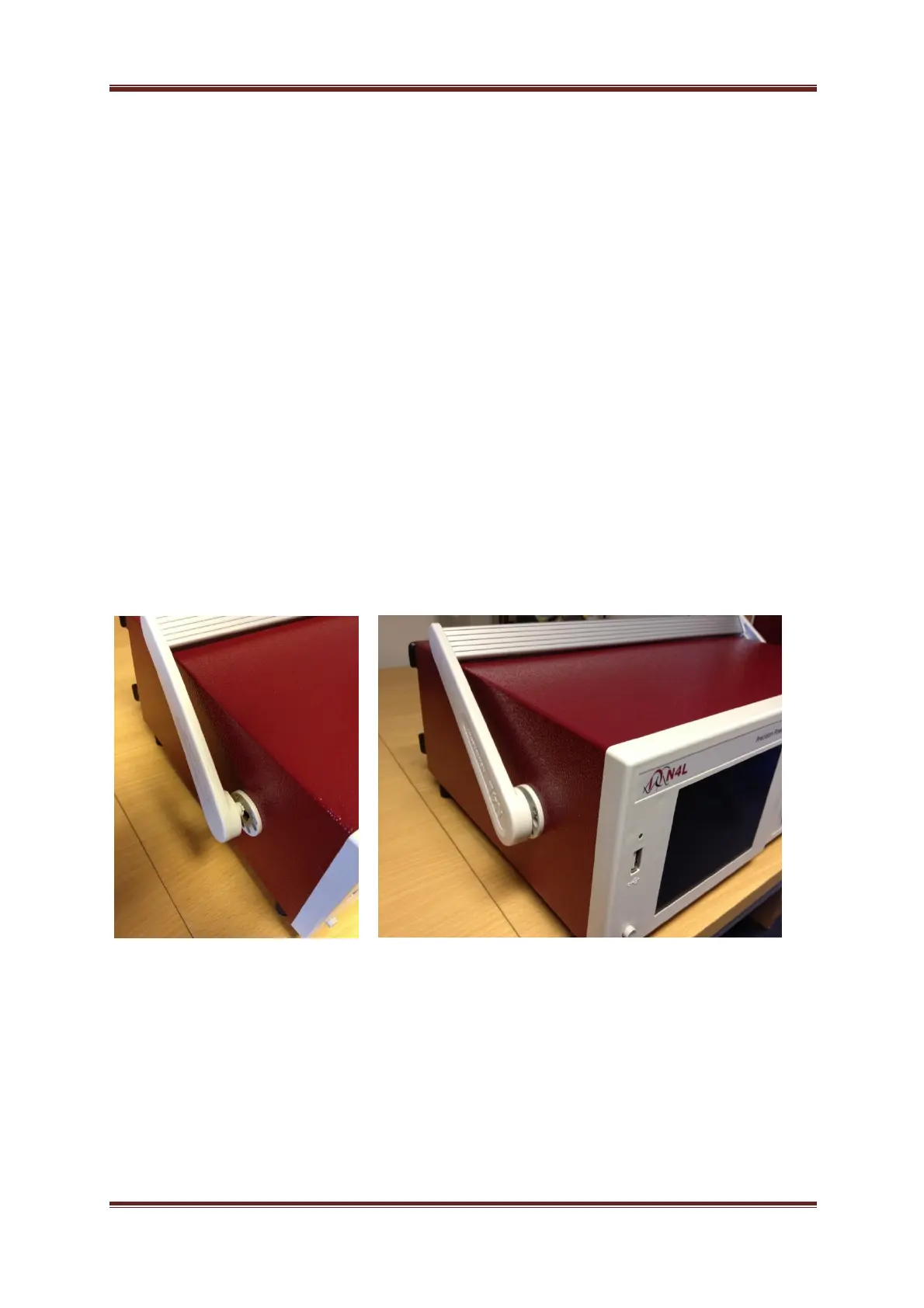

Correct 1 Correct 2
Correct 1/2 – Correct fitting is from the top of the unit as shown here
