PPA55xx Quick User Guide
Page 5
Correct 3 Correct 4

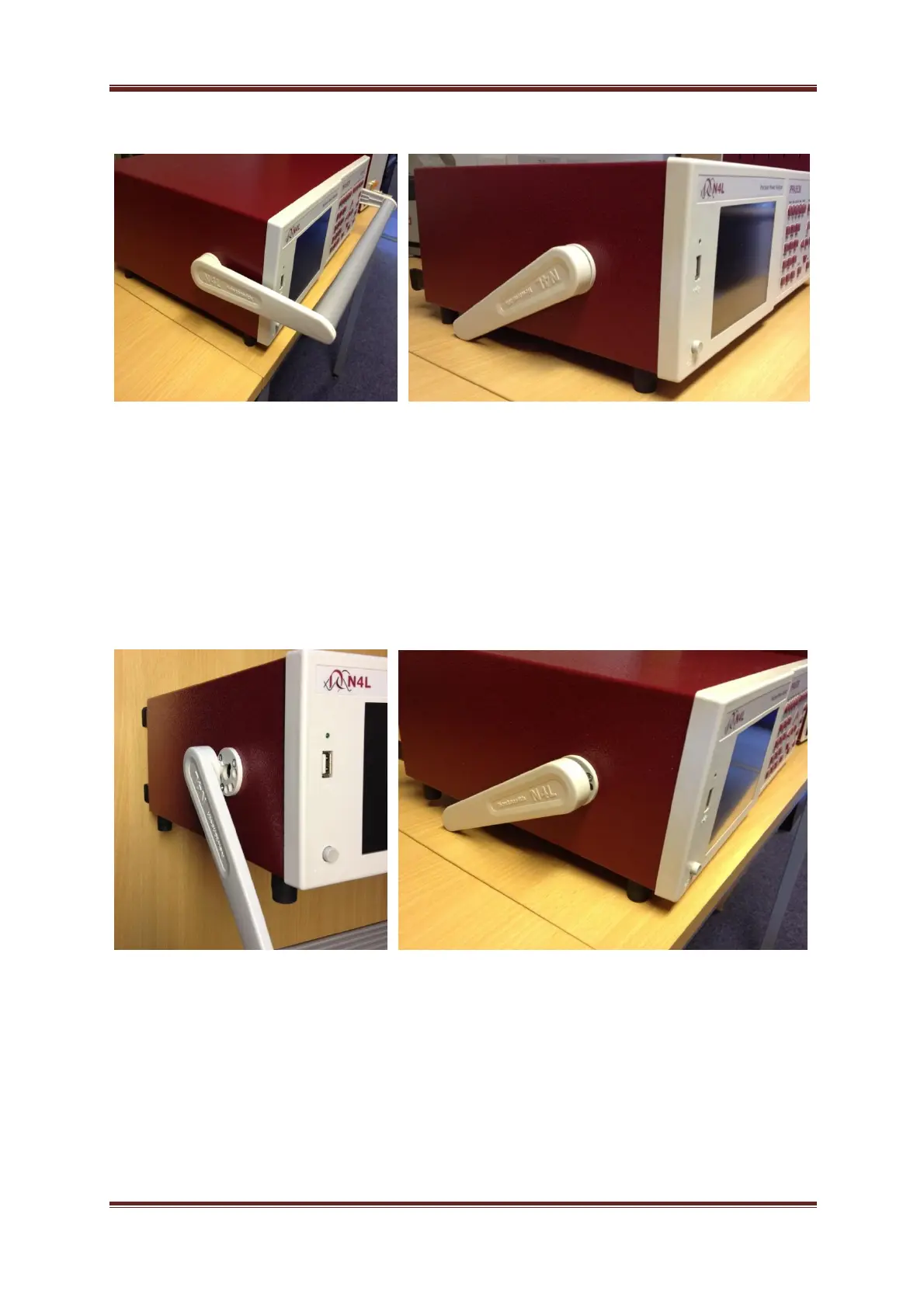

A correctly fitted handle will have the ‘N4L Newtons4th’ wording in the correct
reading plane when the handle is to the front of the instrument (Pic. 3)
Also, a correctly fitted handle will allow storage under the unit (Pic. 4)
Incorrect 1 Incorrect 2
Fitting the handle from the bottom of the unit as shown here is wrong...
(Incorrect 1)
Incorrect fitting can be seen because the handle does not fit correctly under the
unit and handle sides do not fit flush with the registration washer (Incorrect 2)
